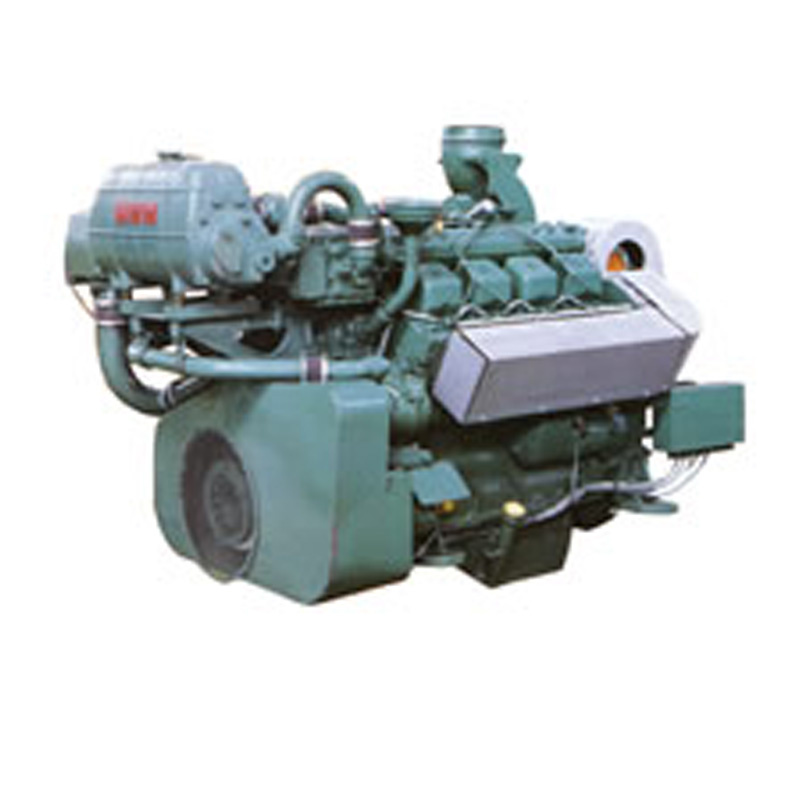

Deutz MWM TBD234-V8 Main Propulsion Marine Diesel Engine

Product Specifications

Prod Model:	TBD234 V8 MARINE PROPULSION
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Displacement:	14.4L
Engine Voltage:	24V
Speed Governor:	Mechanical
Starting Method:	Electric
Certificate:	CCS, BV
Overall Dimension:	1810*988*1637mm
Net Weight:	1490kg
Type:	Fishing Vessels
Material:	Iron and Steel
Marine Parts:	Engine/Motor
Cylinders:	8

Product Description

Deutz MWM TBD234-V8 main propulsion marine diesel engine, power:

Brand	Model	Liter	KW/RPM	Application
MWM	D234 V8	14.4	110/1500	marine
MWM	D234 V8	14.4	117/1500	marine
MWM	D234 V8	14.4	125/1500	marine
MWM	D234 V8	14.4	138/1500	marine
MWM	D234 V8	14.4	139/1500	marine
MWM	D234 V8	14.4	140/1800	marine
MWM	D234 V8	14.4	141/1800	marine
MWM	D234 V8	14.4	147/1800	marine
MWM	D234 V8	14.4	151/1800	marine
MWM	D234 V8	14.4	166/1800	marine
MWM	D234 V8	14.4	164/2100	marine
MWM	D234 V8	14.4	176/2100	marine
MWM	D234 V8	14.4	193/2100	marine
MWM	TD234 V8	14.4	156/1500	marine
MWM	TD234 V8	14.4	170/1500	marine
MWM	TD234 V8	14.4	180/1500	marine
MWM	TD234 V8	14.4	184/1500	marine
MWM	TD234 V8	14.4	188/1800	marine
MWM	TD234 V8	14.4	198/1800	marine
MWM	TD234 V8	14.4	200/1800	marine
MWM	TD234 V8	14.4	204/1800	marine
MWM	TD234 V8	14.4	205/1800	marine
MWM	TD234 V8	14.4	220/1800	marine
MWM	TD234 V8	14.4	221/1800	marine
MWM	TD234 V8	14.4	219/2100	marine
MWM	TD234 V8	14.4	235/2100	marine
MWM	TD234 V8	14.4	258/2100	marine
MWM	TBD234 V8	14.4	196/1500	marine
MWM	TBD234 V8	14.4	198/1500	marine
MWM	TBD234 V8	14.4	208/1500	marine
MWM	TBD234 V8	14.4	210/1500	marine
MWM	TBD234 V8	14.4	213/1500	marine
MWM	TBD234 V8	14.4	230/1500	marine
MWM	TBD234 V8	14.4	235/1800	marine
MWM	TBD234 V8	14.4	240/1800	marine
MWM	TBD234 V8	14.4	242/1800	marine
MWM	TBD234 V8	14.4	255/1800	marine
MWM	TBD234 V8	14.4	276/1800	marine
MWM	TBD234 V8	14.4	274/2100	marine
MWM	TBD234 V8	14.4	300/210	marine
MWM	TBD234 V8	14.4	323/2100	marine

for generator set, water pump set, agricultural tractors, special vehicles, etc, manufactured by former
Deutz joint venture in China. We also sell other Deutz models, including 912/913
series, 1015 series, 413/513 series, 1013/2012 series, 226B series,TBD234 series,
TBD620 series, etc.
Besides, we also sell other brands, including Cummins, Perkins, Fiat Iveco, VM, CAT, Isuzu,
Toyota, Nissan, Toyota, Yuchai, Weichai, Changchai, etc, complete engines and spare parts,
Including cylinder head, cylinder block, main bearing, conrod bearing, alternator, starter motor,
Piston, piston ring, conrod, cylinder head gasket, oil seal, seal O ring, crankshaft, camshaft,
Timing gear, etc.
