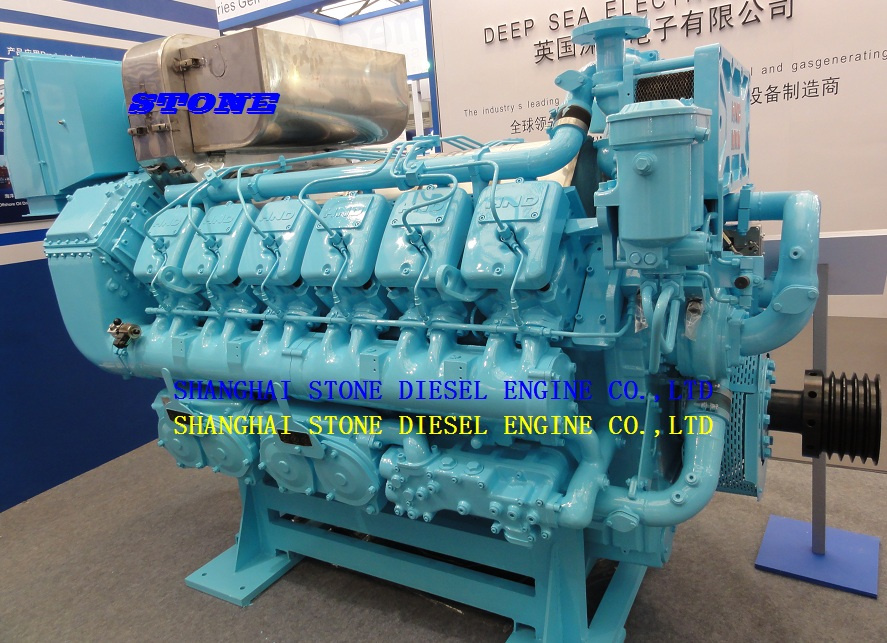

Deutz Mwm Tbd620V12 Diesel Engine

Product Specifications

Prod Model:	TBD620V12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Commercial Vessels
Cylinders:	12

Product Description

Shanghai STONE DIESEL ENGINE Co., Ltd CAN SUPPLY THE DEUTZ MWM TBD620V12 DIESEL ENGINE
MAIN SPECIFICATION FOR TBDMWM620
Application Running work Intermission work fuel comssumtion(MCFN) /
Working ship High speed ship yacht\high speed duty ship average compression
Condition air/turbocharge cooled/atmospheric pressure/relative humidity: 450.1MPa/60%
Power symbol MCFN MFN
(A) (B) (C) (D) g/kw. H/MPa
Speed r/min 1500 1650 1800 1500 1650 1800 1860 1860 1500 1650 1800
TBD620V8 rated power(KW) 829 870 920 915 960 1016 1120 1168 193/1.87 196/1.79 199/1.73
TBD620V12 1240 1304 1380 1370 1440 1524 1680 1752 189/1.87 192/1.79 195/1.73
TBD620V16 1658 1740 1840 1830 1920 2032 2240 2336 194/1.87 197/1.79 202/1.73
Oil consumption ≤ 1g/kw. H
Application Running work Intermission work fuel comssumtion(MCFN) /
Working ship High speed ship yacht\high speed duty ship average compression
Condition air/turbocharge cooled/atmospheric pressure/relative humidity: 450.1MPa/60%
Power symbol MCFN MCFN MXN MC15N MOFN MOFN g/kW. H/MPa
2h/12h 2h/12h 0.5h/6h
Speed r/min 1500 1800 2100 2200 2265 2200 2265 2300 1500 1800 2100
TBD234V6 rated power 186 222 242 302 332 302 332 347 198/1.38 210/1.37 206/128
TBD234V8 249 296 323 405 445 405 445 465 195/1.38 198/1.37 201/1.28
TBD234V12 373 444 485 605 605 605 665 695 196/1.38 198/1.37 203/1.28
TD234V6 116 132 - - - - - - 210/0.85 213/0.82 -
TD234V8 160 186 - - - - - - 210/0.85 213/0.82 -

TBD604BL6
Application continues duty
passenger ship/work boats power station/pump set
Power code MCFN MCXN 1h/12h
Ambient condition air/turbocharge cooled/atmospheric pressure/relative humidity: 450.1MPa/60%
Rated speed r/min 1200 1350 1500 1650 1800 1200 1500 1800
Rated speed KW 372 412 450 530 586 540 637 372 480 450 550 540 600
Mean effective pressure MPa 1.4 1.38 1.36 1.6 1.6 1.36 1.6 1.4 1.81 1.36 1.66 1.36 1.51
Fuel consumption g. KW. H 195 197 192 193 193 202 200 195 190 197 191 202 200
Lub. Oil cosumption ≤ 1g/kw. H
Main technical Data
Shanghai STONE ENGINE Co., Ltd

application	Running work				Intermission work
	Working ship				High speed ship			Yacht,high speed duty ship
condition	air/turbocharge cooled/atmospheric pressure/relative humidity:45°C/32°C/0.1MPa/60%
Power symbol	MCFN									MFN
	(A)				(B)					(C)		(D)
speed	1500	1650	1800	1500		1650	1800		1860		1860
TBD620V8	829	870	920	915		960	1016		1120		1168
TBD620V12	1240	1304	1380	1370		1440	1524		1680		1752
TBD620V16	1658	1740	1840	1830		1920	2032		2240		2336

MAIN SPECIFICATION
BORE/STROKE	170/195mm
ARRANGE	90° v-90°
CYLINDER NUMBLE	8,12,16
MIN. SPEED AT FULLY LOAD	600r/min
IGNITION SPEED	150r/min(5°c)
RATED SPEED	1500r/min
UNIT CYLINDER VOLUME	4.43dm3
COMPRESSION RATIO	13.5:1
MAX. COMBUSTION PRESSURE	15MPa
DIRECTION	counter clockwise rotation(from the end of flywheel)
TYPE	4-stroke,direct-injection
INTAKE	turbo/turbo-intercooler
DIMENSION mm	V8:2340*1450*2000
	V12:2980*1450*2040
	V16:3400*1450*2100
WEIGHT(KG)	V8:3600
	V12:25100
	V16:6290
