Product Specifications
| Prod Model: |
DF3015/DF4020/DF6022 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Machinery & Hardware |
| Automation: |
Automatic |
| Type For Cutting Machine: |
Laser Cutting Machine |
| Type: |
Metal Cutting |
Product Description

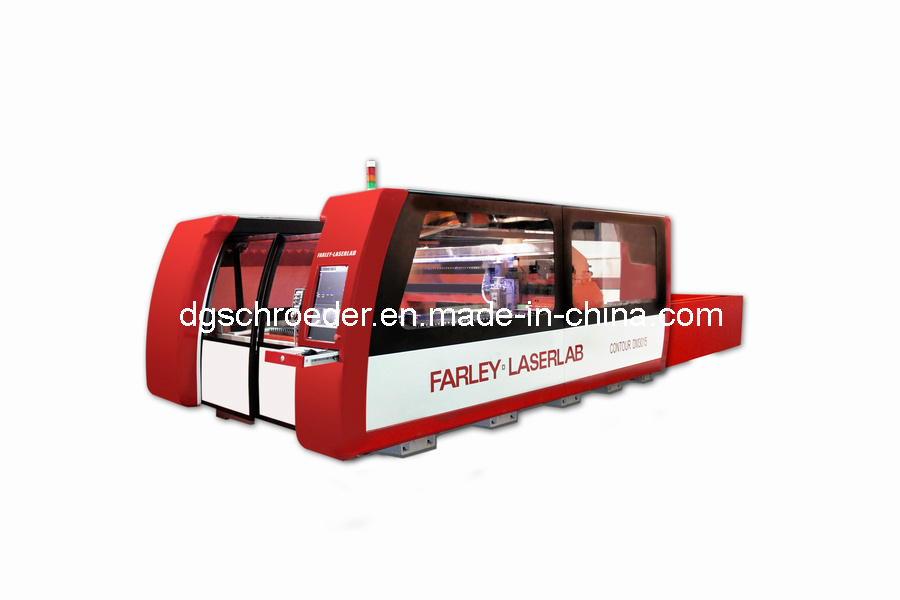

DF series CNC fiber laser cutting machine.
DF series CNC fiber laser cuting machine is mainly used on high power cuting & welding equipment. This machine utilises advanced Gantry structure. The cast aluminium beam has typical features of quick dynamic response and stable structure. It can be used for cutting carbon steel and stainless steel. With optimized Germany Siemens CNC Control System 840D and servo motors combined with integrated laserlab-SIM operation system, the machine can run with more stability and strengthened humanity for operation. Besides, the fully sealed protective room can protect operator from laser.
DF seriers CNC fiber laser cutting machine has acceleration up to 2g and positioning speed up to 210 m/min.
|
Technical Data |
|
Model no. |
DF3015 |
DF4020 |
DF6022 |
|
Stroke of X axis |
3048mm |
4048mm |
6096mm |
|
Stroke of Y axis |
1524mm |
2024mm |
2200mm |
|
Stroke of Z axis |
150mm |
150mm |
150mm |
|
Positioning Accuracy |
± 0.05mm |
± 0.05mm |
± 0.05mm |
|
repeatability |
± 0.025mm |
± 0.025mm |
± 0.025mm |
|
Positioning Speed |
uniaxial: 150m/min linked: 210 m/min |
uniaxial: 120m/min linked: 180m/min |
uniaxial: 120m/min linked: 180m/min |
|
Acceleration |
2G |
2G |
2G |
|
Power of Fiber Laser |
1-2KW |
1-2KW |
1-2KW |
|
Cutting thickness |
carbon steel: ≤ 16mm stainless steel: ≤ 8mm |
carbon steel: ≤ 16mm stainless steel: ≤ 8mm |
carbon steel: ≤ 16mm stainless steel: ≤ 8mm |
|
Exchange table |
bearing |
720Kg |
1200Kg |
1500Kg |
|
exchange cycle |
8 seconds |
12 seconds |
30 seconds |
SCHROEDER's teamsresearch, develop, design, integrate, produce, assemble, test and install singlespecial machine up to complete production lines, according to customers'specifications, all over the world.
SCHROEDER the world leader in complete mechanical solution
SCHROEDER with a dedicated and experienced project team will implement your project in the most demanding environment, our leading mechanical, electrical and automation engineer will develop your own efficient production facilities based upon proven, reliable and tested new technology. Our customer's support team will be at your service all over the world to support you in your daily operation. SCHROEDERis your best partner in securing productivity for your next investment.
SCHROEDER performs in the following industrial sectors: Aeropsace, Automotive, Defense, Energy, Environment, Railway, Shipyards.
We provide design, realization and installation on site with training and after sales service all over the world.
SCHROEDER teams have long expertise and experience in designing special machines or prototypes adapted to the needs of our customers. This expertise gives to us the opportunity to grow all over the world, and so we already have delivered more than 200 machines in 50 countries. Our quality is well known and we integrate the latest technologies to our machines
