Product Specifications
| Prod Model: |
DGP80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Western Europe |
| Model: |
Dgp80 |
| Capacity (Kg/H): |
200-250 |
| Host Power (Kw): |
22/27 |
| Feeding Power (Kw): |
0.4 |
| Scew Dia (Mm): |
80 |
| Cutting Power (Kw): |
1.1 |
| Raw Material: |
Corn, Wheat, Soybean, Grain, Bone Powder etc. |
| Raw Material Size Requirement: |
60-80mesh |
| Raw Material Moisture: |
20-30% |
| Customized: |
Support |
| Processing Technics: |
Crushing-before-Mixing |
| Processing Object: |
Mixed Feed |
| Type: |
Pellet Mill |
Product Description
I. FAQ
1) Raw material:
Corn, wheat, soybean, grain, bone powder etc.
2) The raw material need grind into 60-80Mesh
3) The mositure content of the raw material need to be: 20-30%
4) The pellet shapes and the machine voltage are adjustable if you have any special requirement.

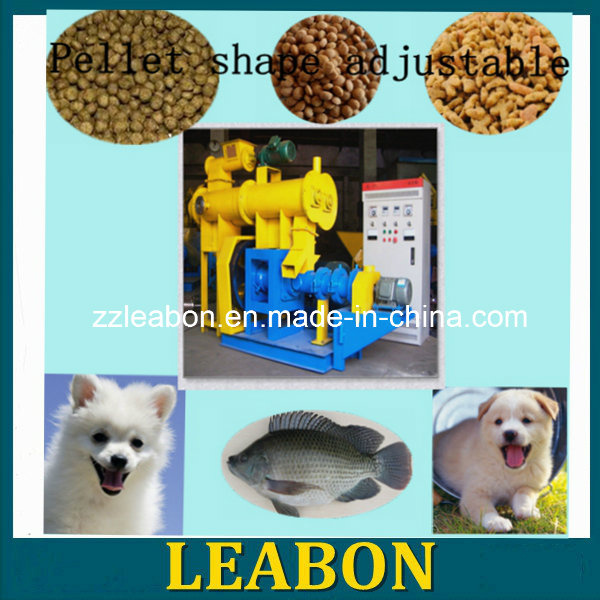

II Brief introduction of the floating fih feed making machine
A. With different moulds, the machine can produce different diameter food, such as 1.5mm, 2.5mm etc. So the food can meet different stage fish.
B. The floating fish feed pellet machine can make poultry-fodder, pet-fodder, as well as aquaculture-fodder and fishery feed.
C. It is mainly used to process the maize flour, soybean flour or compound powder, wheat bran into high grade aquatic feed pellets for fish, catfish, shrimps, dog, . Cat etc.
D. According to customers' demand and production scale, floating fish feed machine includes two kinds: Dry type machine and Wet type machine.
III Application of the floating fish feed making machine
With the features of high efficiency, low price, can reduce loss of the nutrition, simple performance, the floating fishing feed pellet machine is applies to professional farmers, small and medium-sized feed mills and research institutes, testing room, aqua farm and small feed factory.
IV Advantage of this machine
1. In the case of the same feed, the price of self-made inflated feed is 30%-60% lower than the market price.
2. With this machine, the inflated feed particles are tidy and smooth, keep floating over the water for more than 24 hours.
3. Does not sink, does not pollute the water and reduce fish diseases.
V Working principles of the floating fish feed making machine
1). After the material is sent into feeding device, they will be pressed by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized.
2). Then the pressed material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters.
3). After that a cutting device will cut the formed pellets into different length as required.
4). After the material is sent into feeding device, they will be pressed by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized.
5). Then the pressed material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters.
6). After that a cutting device will cut the formed pellets into different length as required.
VI. Our service
1)We can provide you the one year warranty but without the spare parts.
2) The professional and timely 24 hours after-sale service.
3) The relative vedio of the machine installation and instruction will be provided for you.
4) We can provide you the different mould to produce the different shapes for different animals.
5)We can also meet the special voltage demend.
6) The engineer is availiable to service machinery oversea
Model |
Capacity
(kg/h) |
Host Power
(kw) |
Feeding Power
(kw) |
Scew Dia
(mm) |
Cutting Power
(kw) |
|
DGP60 |
120-150 |
15 |
0.4 |
φ60 |
0.4 |
|
DGP70 |
180-200 |
18.5 |
0.4 |
Φ70 |
0.4 |
|
DGP80 |
200-250 |
22/27 |
0.4 |
Φ80 |
1.1 |
|
DGP90 |
320-350 |
30/37 |
1.1 |
Φ90 |
1.5 |
|
DGP120 |
500-600 |
55 |
1.1 |
Φ120 |
2.2 |
|
DGP135 |
700-800 |
75 |
1.1 |
Φ133 |
2.2 |
|
DGP160 |
1000-1200 |
90 |
1.5 |
Φ155 |
2.2 |
|
DGP200 |
1800-2000 |
132 |
1.5 |
Φ195 |
3.0
|
