Product Specifications
| Prod Model: |
DCH-400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe |
| Operation Panel: |
8 Inch Touch Screen |
| Load Cell: |
Hbm |
| Material: |
SUS ,Polishing |
| Power Supply: |
AC 220V ,AC 110V,AC380V |
| Application: |
Package Food |
| Place Of Origin: |
Guangdong, China |
| Language: |
Chinese/English/Spanish |
Product Description
Standard Features
Control Panel Exterior is Stainless Steel and Painted
Conveyor is Non-waterproof
Balance is Force Balance
Frame is Stainless Steel and Painted
Color LCD Touch Screen
Optional Features
Tower Light (with buzzer alarm)
Data Printer
Emergency Stop Switch
Line Height Change
Plate for Anchor
Remote Indicator
Cross Plate
Product Guide
Wind Shield (full cover)
Wind Shield (top)
Wind Shield (protector)

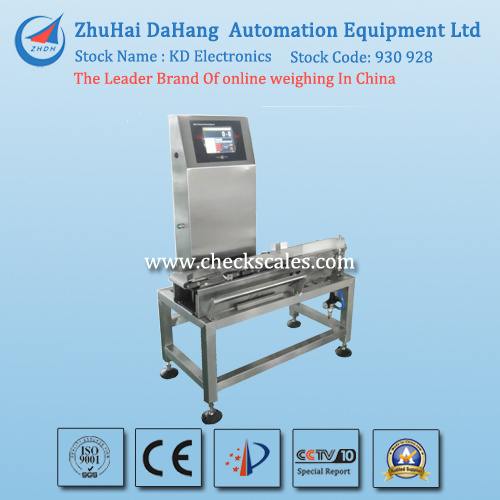

The DCH series gets its high speed and high accuracy from the force balance. If you are in the pharmaceutical or industrial industry, these checkweighers will meet your needs to Make sure your next weighing system has a rapid response function for various needs, such as the effective use of raw materials in the weighing and packing process, loss prevention, quality improvement, etc. DCH checkweighing series predicts hazards in advance, and critical points are monitored throughout the entire process for ultimate product safety.
Proven and Reliable
Over 60, 000 systems installed globally.
Easy to Maintain
The modular design allows for superior documentation and overall system reliability not seen with custom design solutions. Overall savings are seen in maintenance costs.
Easy to Clean
Tool-free belt removal and open frame construction provides a means to quickly clean the system and reduce cleaning costs.
Flexible
With hundreds of standard models, Anritsu will likely have a solution pre-engineered and ready for production. Ask us for a free quote to learn more.
| Model | DCH-400 |
| Weighing capacity | 3000g |
|
| Weighing range | 5-3000g |
| Minimum graduation | 0.01g |
| Weighing speed* | 200items/min. (max.) |
| Weighing accuracy(3 σ )* | ± 0.5g |
| Weigh sensor | Double-beam load cell (high output) |
| Product dimensions (mm) | Length | 20mm ~250mm |
| Width | 10mm ~ 100mm |
| Height | 10mm ~ 280mm |
| Belt speed | 30m/(max.) |
| Construction | Standard : IP30 (International standard) |
| Waterproof : IP54 (International standard) |
| Power supply | Single phase AC100 ~ 120V, Single phase AC200 ~ 240V |
| Temperature | 0 º C ~ 40 º C (Humidity 30 ~ 85%, no condensation) |
| Main body weight | Approx. 65kg (without metal detector) |
| Standard devices | USB slot for data collection |
| Options | Various options are available. |
| *Weighing accuracy and speed depend on product shape and other conditions. |
