Yueqing Hongyin Electric Co., Ltd. >> Dh670 CE Certificate Panel Mount Analog Volt Meter

Dh670 CE Certificate Panel Mount Analog Volt Meter

Name: Dh670 CE Certificate Panel Mount Analog Volt Meter
Brand: china-manufacturer-directory.com
SKU: 698747732
Availability: InStock
Rating: 5 (127 reviews)

Supplier:	Yueqing Hongyin Electric Co., Ltd.
Price:	US $ 1.24/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	DH670-V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diammeter:	71*60.5
Kind:	Rotating Coil
Application:	Electronic Equipment
Display:	Indicator
Installation:	Direct Connected
Theory:	Electronic Meter
Power Source:	AC and DC
Display Ammeter Type:	Single Pahse

Product Description

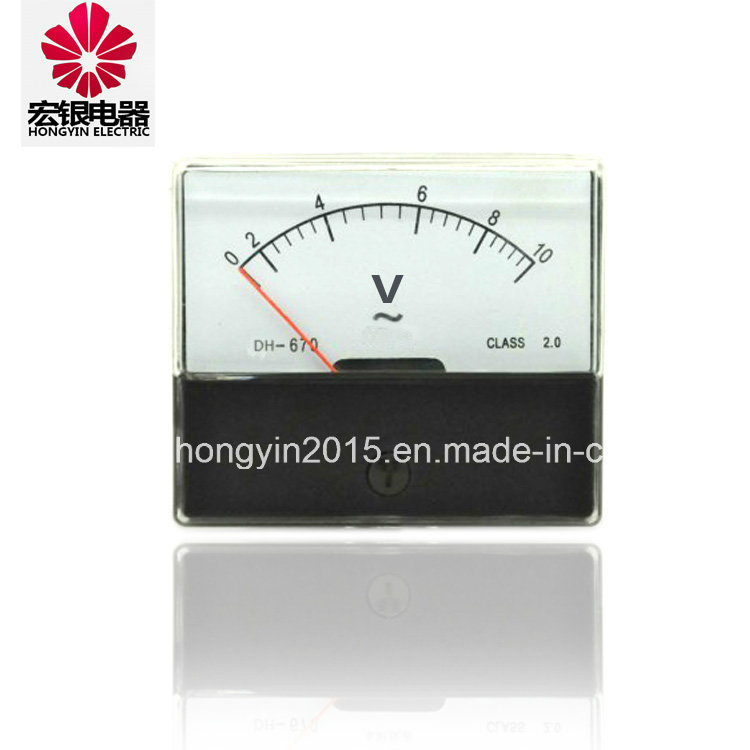

DH670 CE certificate panel mount analog volt meter

1- Main Structure and working Principle

45,50,670,80 ,60 Series Meters are composed by measuring mechanism and indicating device. The supporting part is composed of jewelled bearing and pivot. The moving part is composed of jewelled bearing and pivot. The moving part composed of magnetic system, moving coil and pointer .This series meters are magneto-electric inner magnetic structure.It is with plastic casing, transparent synthetic glass and printing dial.

2-Main technial paremeters:

Product Name	Specification	Measuring Range	Accurancy
DC ammeter	45,50,60,670,80	50uA -20A (INPUT DIRECTLY 20A~10kA */60mV/75mV (EXTERNAL DEVICE)	Class 2.5
AC ammeter	45,50,60,670,80	500mA~50A (INPUT DIRECTLY) 5A~10kA*/5A (EXTERNAL DEVICE )	Class2.5
DC voltmeter	45,50,60,670,80	5V-750V(INPUT DIRECTLY) 450V-450kV/1mA/5mA (EXTERNAL DEVICE)	Class2.5
AC voltmeter	45,50,60,670,80	15V-600V (INPUT DIRECTLY) 380V-450kV*100V(EXTERNAL DEVICE)	Class 2.5
