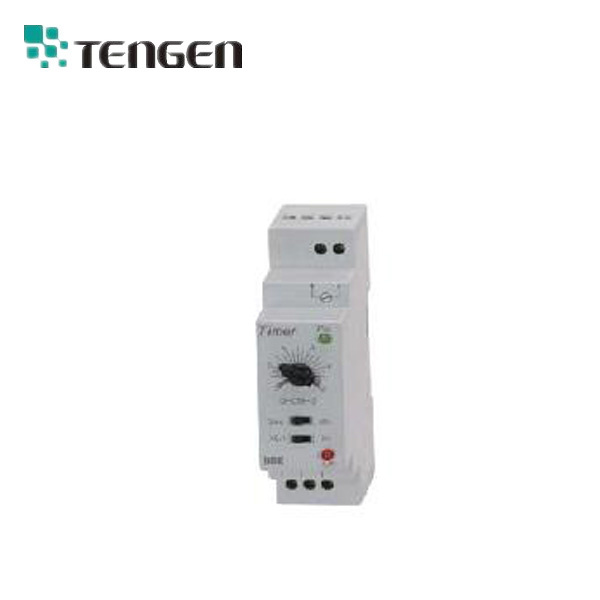

Dhc19-Y Delta-Star Timer
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
Specifications
1.Rated Votage: AC 220V 50/60Hz (AC 110V 230V 240V optional)
2.AC power consumption: Approx. 3 watts
1.Introduce
This unit is designed to provide a simple, economical and reliable operation for Star - Delta induction motor starters.
DIN rail Mounting
1.Specially designed for Induction Motor starting
2.Change time(0.1~0.5sec) from star(Y) to delta(Δ ) is according to the requirement of the user
3.Short release time, suitable for fast repeat operation
4.Process indications: Green LED for delta operation, Red LED for star operation.
5.Front adjustable knob for star time: 1sec~100 sec
6.Simple Star-Delta Starter Wiring.
2.Specification
Rated Voltages | AC 220V 50/60Hz (AC 110V 230V 240V optional). |
| AC power consumption | Approx. 3 watts. |
| Adjustable star(Y) time delay | 1 to 10/100 seconds control output. |
| Fixed Transition time (star to delta) | 0.1 seconds. |
| Repeat Accuracy | ±0.5% of full scale. |
| Setting Accuracy | ±5% of full scale. |
| Reset Time | Less than 0.5 sec. |
| Control Output | 1 C/O, 5A 250V AC, 1 Relay. |
| Mechanical Life | 1,000,000 operations. |
| Electrical Life | 100,000 operations at rated load. |
| Ambient Temperature | .-10°C to 55°C |
| Ambient Humidity | 45~85% RH |
| Weight | Approx. 150g |
| Indication | Green LED for delta operation, Red LED for star operation, center LED for power status.
|
| Prod Model: |
dhc19 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Dhc19-Y |
| Max. Current: |
5A |
| Max. Voltage: |
250VAC |
| Place Of Origin: |
Zhejiang China (Mainland) |
| Type: |
Time Switch |
| Usage: |
Timer Switch |
| Theory: |
Digital |
| Carry Mode: |
Synchronous Counter |
| Carry Base: |
Module-n Synchronous Counter |
| Mechanism: |
Electronic |
