Product Specifications
| Prod Model: |
welding machine KHBL8-80A |
| Markets: |
North America,Southeast Asia,Mid East |
| Tube Diameter: |
8-89mm |
| Tube Wall Thickness: |
0.5-6.5mm |
| Welding Speed: |
50-150mm/Min, 0.3-6r/Min |
| Control System: |
PLC Control |
| Phase Number: |
Three Phase |
| Power Supply: |
Panasonic IGBT Inverter DC Pulse Power |
| Certificates: |
ISO9001. CCC.CQC |
| Valtage: |
380V |
| Power: |
13.2kw |
| Wantananty: |
One Year |
| Type: |
ARC Welders |
| Current: |
Inverter Current |
Product Description

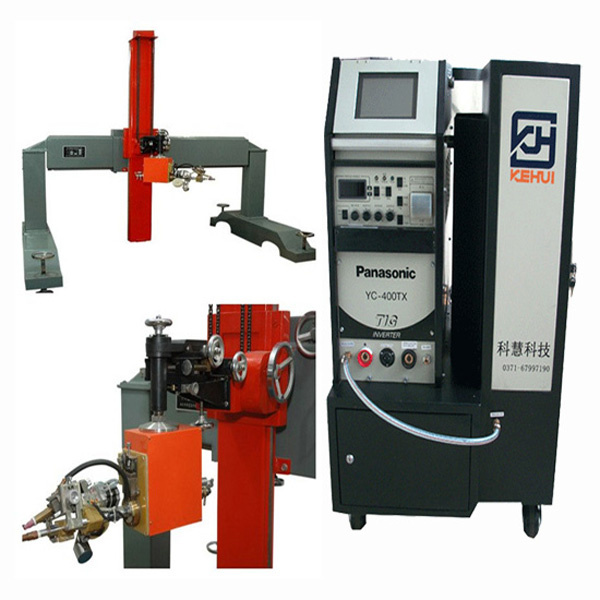

Automatic 3D adjustment tube-tube plate automatic pule argon arc welding machine
About us
Kehui technology was organized in 1996, as the leading company in the welding and heat treatment field. It concentrates on providing solution and recommendation to clients, hence, we attempt to customize our product relates to clients' requirements. By the rich experience in such area, we may design and produce various type of product, such as tube-tube and tube-tube sheet, and other type automatic welding machine which successfully be used in petrochemical, manufacturing and boiling industry.
Recently, with the almost 20 years' development, the company is transforming to one of the listed companies of China. We hope the new organization may benefits our clients by bring more advanced technologies and fresh ideas in the near future.
Application
Applicable industries
Petroleum, pressure container, shipbuilding, food machinery, etc
Applicable scope
Tube -- tube plate welding with the pipe outer diameter 8mm - 80mm of carbon steel, alloy steel, stainless steel, copper and copper alloy, titanium alloy.
Applicable products
Boiler, pressure vessel, heat exchanger, etc
Product function
1. Suitable for various kinds of tube— Tube plate welding
2. 3D frame which is fabricated according to adjust with a fifth dimensional tuning, suitable for small pipe diameter of intensive heat exchanger welding,
3. The welding head can do 180 degree rotation, that is convenient to change tungsten pole and adjust the length of wire.
4. Head of water, electricity, USES the winding way, welding can continuous rotary, cooperate the arc length adjustment, which can realize multilayer welding,
5. The spindle nose adopts water-cooled positioning, avoid pipe head melts in the flow, welder molding beauty,
6. Driving and wire used stepping motor system, the nose reliable,
7. Adopting PLC control system, command nicety, strong anti-jamming capability
8. Friendly human-machine interface adopts LCD touch screen, all English input simple, intuitive operation, convenient,
9, By Panasonic IGBT inverter control DC pulse power, high efficiency, arc welding strong stability, weld bead molding beauty,
10, Compulsory water-cooling systems, equipped with 16 liters stainless steel water trough, do not suffer site conditions, such as water pressure cooling fully, reliable convenient!
|
Rated input voltage |
380V |
|
Rated input capacity |
13.9KVA |
|
Rated Input Power |
13.2KW |
|
Voltage allow fluctuating range |
380V±10% |
|
Phase number |
Three-phase |
|
Frequency |
50/60HZ |
|
Rated load sustained rate |
60% |
|
Rated welding voltage |
TIG welding 22.6V |
|
Rated voltage no-load |
100 Programmer |
|
can be segmented number |
1-12 segments |
|
Rated welding voltage |
TIG welding 22.6V |
|
The rated voltage no-load |
70V |
|
Weldable tube diameter |
8~80mm |
|
Weldable wall thickness |
0.5~6.5mm |
|
Tube biggest stretch out length |
10mm |
|
Tube biggest indentation length |
2mm |
|
Welding current adjusting range |
4~400A |
|
Current up time |
0.1~25S |
|
Tungsten pole adjustable Angle |
<45° |
|
Wire adjustable Angle |
≤45° |
|
Pulse frequency |
0.5_500HZ |
|
Cooling water pressure |
1.2g.f/mm2 |
|
Argon gas flow |
8_12L/min |
|
Welding Speed |
50~150mm/min |
|
Wire feeding Dia. |
0.8/1.0mm |
|
Head speed |
0.3_6r/min |
KeHui Technology set up in 1996, with almost 20 years' experience in automation filed. We focus on the design and manufacturing of automatic orbital welding machine and welding robot. Additionally, we also concentrate on providing any automation solution to clients.
KeHui Technology own five centers in headquarter such as the research and development center, sales and service center and manufacturing center and so on. They work together for supplying product, design and sales service to clients.
Our product includes three main parts:
1. Automatic orbital welding equipment -arc welding, girth welding, seam welding and so on
2. Welding Robot for OTC brand (made in Japan, and we are the distributor of OTC China)
3. Automation welding solution relates the real requirement of clients
