wet ball mill
Wet Ball Mill is widely used in benefication plant to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns, like iron ore, gold ore, barite and etc.
Wet Ball Mill are specially developed for a vast range of applications:
Size reduction of various materials like mineral ores, cement, silicate, building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and etc.
Feed sizes of 25mm to product sizes of 0-300mesh(adjustable)
Wet or dry grinding
Continuous grinding process
Mineral processing
Environmental grinding

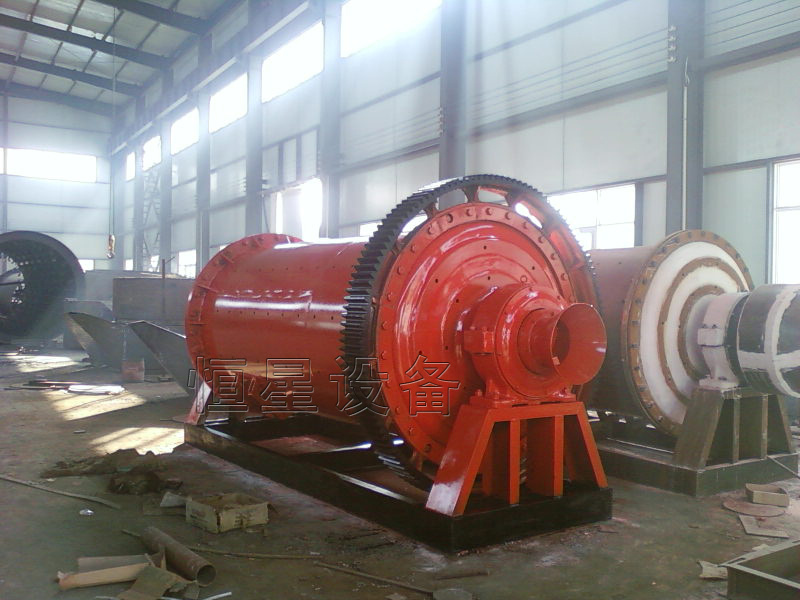

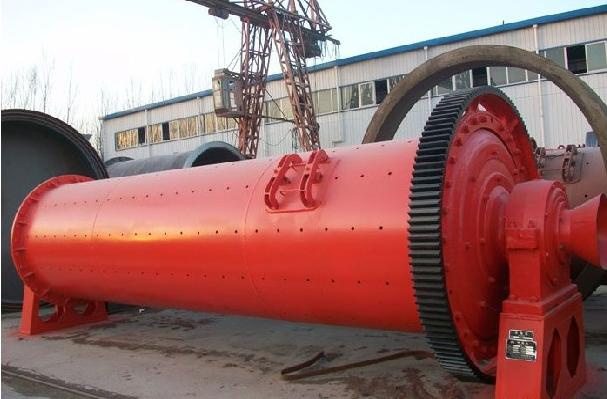

Wet ball mill structure: It is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control) and widely used in the manufacture industries, such as cement, silicate, refractory material, new building material, fertilizer, ferrous metal, nonferrous metal and glass ceramics, moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
Ball mill wearhouse number selected according to the finished products size.
Wet Ball Mill Machine For Mining Liners:
Rubber, steel, or ceramic
Configured as required for application
Wet Ball Mill MachineFor Mining Features:
Mills customized for your application
Heavy-duty construction provides durability
Easy maintenance and operation
Best price and good quality in the market
Prompt delivery time.
| Model | shaft rotation speed(r/min) | Ball load(t) | Feeding size(mm) | Discharging size(mm) | Capacity(t/h) | Power(KW) | Weight(T) |
| Φ 900 × 1800 | 38 | 1.5 | ≤ 20 | 0.075 -0.89 | 0.65 -2 | 18.5 | 3.6 |
| Φ 900 × 2100 | 38 | 1.3-1.4 | ≤ 15 | 0.075 -0.83 | 0.7 -3.5 | 18.5 | 3.9 |
| Φ 900 × 3000 | 38 | 2.7 | ≤ 20 | 0.075 -0.89 | 1.1-3.5 | 22 | 4.5 |
| Φ 1200 × 2400 | 32 | 3.8 | ≤ 25 | 0.0745-0.6 | 1.5-4.8 | 30 | 11.5 |
| Φ 1200 × 2800 | 32 | 3.3-3.5 | ≤ 25 | 0.0745-0.6 | 2-6 | 30 | 13 |
| Φ 1200 × 4500 | 32 | 7 | ≤ 25 | 0.074 -0.4 | 1.6-5.8 | 45 | 13.8 |
| Φ 1500 × 3000 | 27 | 8 | ≤ 25 | 0.074 -0.4 | 2-5 | 75 | 17 |
| Φ 1500 × 3500 | 27 | 6.75
-6.4 | ≤ 25 | 0.075 -0.4 | 3-7 | 75 | 17.5 |
| Φ 1500 × 4500 | 27 | 14 | ≤ 25 | 0.074 -0.4 | 3.5-12 | 110 | 21 |
| Φ 1500 × 5700 | 27 | 15 | ≤ 25 | 0.074 -0.4 | 3.5-8 | 115 | 24.7 |
| Φ 1830 × 3000 | 24 | 18 | ≤ 25 | 0.074 -0.4 | 4-10 | 130 | 28 |
| Φ 1800 × 3600 | 24 | 10.6
-11.35 | ≤ 25 | 0.075 -0.4 | 5-22 | 130 | 33.5 |
| Φ 1830 × 7000 | 24 | 25 | ≤ 25 | 0.074 -0.4 | 7.5-17 | 210 | 36 |
| Φ 2100 × 3600 | 22 | 14-15.2 | ≤ 25 | 0.075 -0.4 | 15-36 | 370 | 46.8 |
| Φ 2200 × 5500 | 21 | 30 | ≤ 25 | 0.074 -0.4 | 10-20 | 210 | 48.5 |
| Φ 2200 × 6500 | 21 | 31 | ≤ 25 | 0.074 -0.4 | 14-26 | 380 | 52.8 |
| Φ 2200 × 7500 | 21 | 33 | ≤ 25 | 0.074 -0.4 | 16-29 | 380 | 56 |
| Φ 2400 × 3000 | 20.6 | 15.5
-16.6 | ≤ 25 | 0.075 -0.4 | 22-24 | 245 | 59 |
| Φ 2400 × 4500 | 21 | 30 | ≤ 25 | 0.074 -0.4 | 8.5-60 | 380 | 65 |
| Φ 2700 × 3600 | 20.6 | 39 | ≤ 25 | 0.074 -0.4 | 12-70 | 400 | 91.3 |
| Φ 2700 × 4000 | 20.7 | 40 | ≤ 25 | 0.074 -0.4 | 12-80 | 400 | 94 |
| Φ 2700 × 4500 | 20.7 | 48 | ≤ 25 | 0.074 -0.4 | 12-90 | 430 | 102 |
| Φ 3200 × 4500 | 18 | 65 | ≤ 25 | 0.075
-0.4 | according to the technics | 800 | 137 |

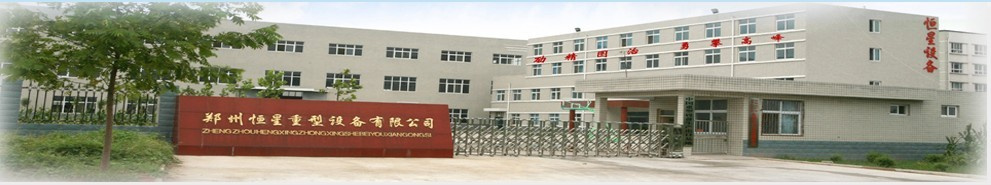

Zhengzhou Hengxing Heavy Equipment Co., Ltd. is a joint stock corporation integrating research and manufacture sale with the targt at the large and medium sized series of heavy equipment for mine machinery, wall materies, formed coal, metallurgy and etc. The company is located at No. 8 Hongye Road, West Hehuan Street, High-Tech Development Zone, Zhengzhou, China.
Since establishment, our company has gathered a group of scientific elites with modernized management system and accurate production as well as independent innovation. Furthermore, our company has realized the computer informationization of management, production, and the CAD and CAPP of production research and process design within our company. Our company is equipped with powerful machines and equipment for machining, forging, rivet welding, and carburization heat processing. At the same time the company has established long-term cooperative relationships with many research institutes from at home and abroad. With advanced technology, we can process and develop new products and promote new technology.
We adhere to the guideline of "survive on high quality, develop by good credit" on the basis of market development and customer service. We have provided better social and economic benefits and attained ISO9001-2000 Certificate. Our products sell very well at home and abroad, enjoying very high appraisement from users.
We would like to offer the most advanced technology, reliable quality, and preferential prices centering on clients. Improving customer satisfaction, we sincerely hope to co-operate with new and old customers, jointly creating the new glorious century.
