Weifang Hualing Power Co., Ltd. >> Diesel Engine (R6105AZLD)

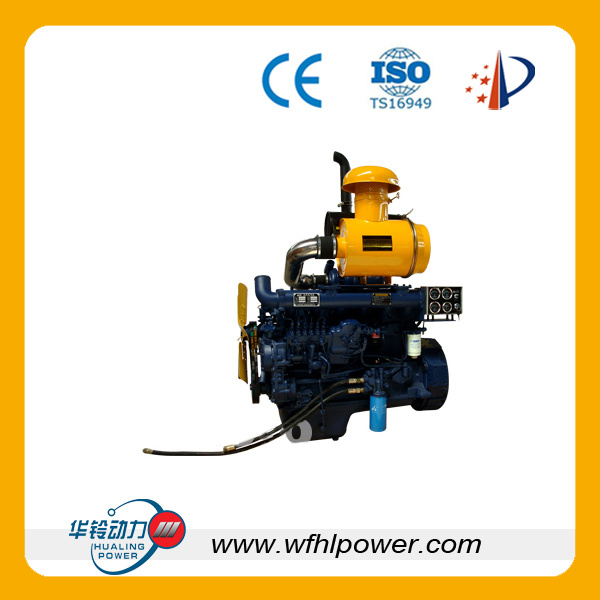

Diesel Engine (R6105AZLD)

Name: Diesel Engine (R6105AZLD)
Brand: China-Manufacturer-Directory.com
SKU: 674664772
Availability: InStock
Rating: 4.9 (100 reviews)

Supplier:	Weifang Hualing Power Co., Ltd.
Price:	US $ 2380/Piece
Min Order:	2/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	R6105AZLD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fuel:	Diesel Engine

Product Description

This kind of engine can be used for the diesel Generators.

GST QUOTATIONS
MAIN SPECIFICATIONS OF ENGINE SERIES
ENGINE MODEL		R6105AZLD
TYPE		IN-LINE, WATER COOLED, 4-STROKE, DIRECT INJECTION
RATED OUTPUT (kW/kVA)		110/137.5
STANDBY OUTPUT (kW/kVA)		121/151.25
ASPIRATION		TURBOCHARGED INTERCOOLED
NO OF CYL		6
BORE(mm) X STROKE(mm)		105X130
DISPLACEMENT(Liters)		6.75
COMPRESSION		16 1
SPEED RATED(r/min)		1500
GOVERNOR		MECHANICAL OR ELECTRONIC
STEADY GOVERNING		≤ 5%(MECHANICAL), ≤ 1%(ELECTRONIC)
SPEED REGULATION		≤ 0.5%(MECHANICAL)≤ 0.25%(ELECTRONIC)
FUEL CONSUMPTION(g/kw. h)		225
OIL CONSUMPTION(g/kw. h)		≤ 1.63
OIL SUMP(L)		16
MEAN EFFECTIVE(kpa)		1426
EXHAUST GAS TEMPERATURE (; c)		≤ 600
EXHAUST GAS(m3/h)		1524
EXHAUST GAS BACK PRESSURE MAX PERMISSIBLE (kpa)		6.5
COOLING AIR REGUIREMENTS FOR FAN-COOLED RADIATOR(m3/h)		12960
AIR FOR COMBUSTION(m3/h)		528
COOLING WATER(L)		25
POWER INPUT FOR FAN(kw)		4.5
STARTER MOTOR		24V5.2KW
CHARGING ALTERNATOR		28V12.5A
FLYWHEEL #		SAE3#
FLYWHEEL MEASUREMENT		SAE3#---11.5
FIRING ORDER		1-5-3-6-2-4
NET WEIGHT(kg)		620
DIMENSION(mm)	(L)	1287
	(W)	819
	(H)	1274

Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.

The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.

We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.

Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
