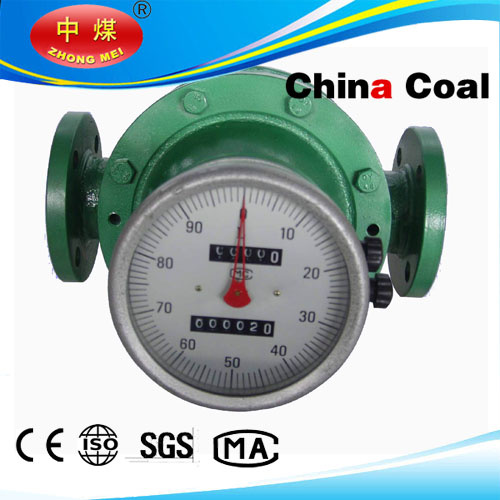

Diesel Oil Pd (positive displacement) Oval Gear Mechanical Flow Meter

Product Specifications

Prod Model:	LC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	LC
Type.:	Volume Type Flow Meter
Measuring Principle.:	Mechanics
Measuring Media.:	Liquid
Certification.:	DIN, GB, CE, ISO
Size.:	Dn10~Dn2000
Counter:	Mechanical Type and Electrical Type
Signal:	4~20mA, Hart, RS485 Optional
Measurement Object.:	Closed Pipeline
Main Application:	Corrosive Liquid/Gas

Product Description


Product Details
Model NO.:LC
Type:Volume Type Flow Meter
Measuring Principle:Mechanics
Measuring Media:Liquid
Certification:DIN, GB, CE, ISO
Accuracy:±0.2-0.5%
Measurement Object:Closed Pipeline
Application:Industrial Production
Size:Dn10~Dn2000
Main Application:Diesel Fuel, Fuel Oil, Corrosive Liquid/Gas
Sensor:Tube/Flange
Counter:Mechanical Type and Electrical Type
Zero Function:Can Set Back to Zero
Material:Cast Iron, Cast Steel, Stainless Steel
Medium:High Viscosity Fluid Like Diesel Oil
Signal:4~20mA, Hart, RS485 Optional(Electric Counter Only
Export Markets:Global

Product Description
LC OVAL GEAR FLOWMETER- Mechanical fuel flow meter
Oil Oval Gear Positive Displacement (PD) Flowmeters
Oval wheel flow-meters(High Viscosity Oval Gear Flowmeters)

Flow range:                                                 unit: m3/h

Type	DN	Viscosity (MPa. s)
		<0.3	0.3~0.8	0.8~2		2~200		200~1000		1000~2000
LC-10	10		0.2-0.5		0.08-0.5	0.08-0.5	0.05-0.5	0.06-0.3	0.03-0.3	0.03-0.2	Flow Range unit: m3/h
LC-15	15		0.75-1.		0.3-1.5	0.3-1.5	0.15-1.5	0.2-1.0	0.1-1.05	0.07-0.75
LC-20	20		1.5-3	1-3	0.4-3	0.5-3	0.3-3	0.4-2.1	0.2-2.1	0.15-1.5
LC-25	25	4-6	3-6	2-6	0.8-6	1-6	0.6-6	0.8-4.2	0.4-4.2	0.3-3
LC-40	40	9-15	7.5-15	5-15	2-15	2.5-15	1.5-15	2.1-10.5	1.0-10.5	0.7-7.5
LC-50	50	10-24	8-24	8-24	3-24	4.8-24	2.4-24	2.4-16.8	1.6-16.8	1.2-12
LC-B40, 50	40, 50	8-20	6-20	6-20	4-20	4-20	2-20	2.8-14	1.4-14	1.0-10
LC-B65	65	27-40	20-40	15-40	5-40	8-40	4-40	5.6-28	2.8-28	2-20
LC-80	80	40-60	30-60	20-60	8-60	12-60	6-60	8.4-42	4.2-42	3-30
LC-100	100	67-100	50-100	34-100	13.-100	20-100	10-100	14-70	6-70	5-50
LC-150	150	38-120	38-120	40-120	12-120	24--120	12-120	15-100	10-90	16-80
LC-200	200	227-340	170-340	114-340	43-340	56-340	34-340	47.6-238	23.8-238	17-170
LC-250					80~500	150~450
Accuracy		0.5	0.5	0.2	0.5	0.2	0.5	0.2	0.5	0.5
Note	"gal/h" could be special ordered.

Note: 1. If the temperature of the metered liquid is higher than 80°C. The maximum flow fate will be 90% of the primary flow, and the minimum will be 120%.
2. When the medium measured is corrosive, the maximum flow should be reduce to 2/3 above.
