Beihai Xiaoming International Import and Export Trading Co., Ltd. >> Diesel Particulate Catalyst Filter (DPF Honeycomb Ceramic)

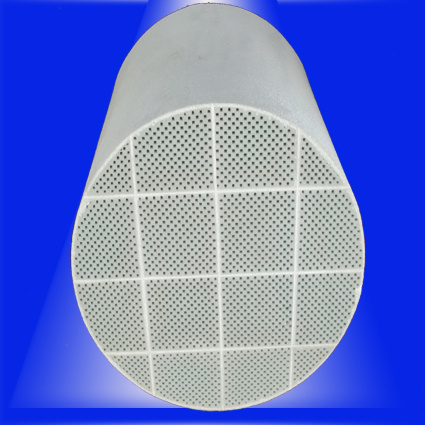

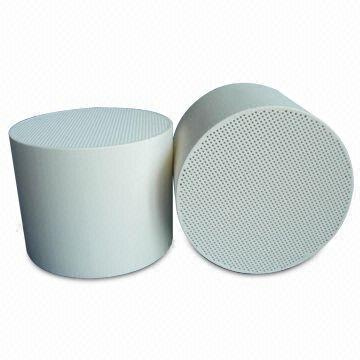

Diesel Particulate Catalyst Filter (DPF Honeycomb Ceramic)

Name: Diesel Particulate Catalyst Filter (DPF Honeycomb Ceramic)
Brand: china-manufacturer-directory.com
SKU: 723828785
Availability: InStock
Rating: 4.9 (149 reviews)

Supplier:	Beihai Xiaoming International Import and Export Trading Co., Ltd.
Price:	US $ 15.5-16.5piece (depend on size)
Min Order:	10piece (depend on size)
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	DPF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Cordierite
Common Specification:	Diameter<120mm/Diameter<200mm,etc
Cell:	100-600cpsi
Size:	224305mm, 286305mm, 190*200mm, etc
Certification:	ISO9001
Component:	Catalytic Converter
Discharge Standard:	Euro IV
Body Material:	Ceramic

Product Description

With increasing appearance of diesel engine automobile, the particulate from emission, mainly carbon

1. Diesel Particulate Filter substrate: Our DPF subsrtate was an economic porous wall flow type ceramic filter is also available for diesel particulate mater removal called diesel particulate filter.
Such a ceramic filter is made from modified cordierite ( 2MgO-Al2O3-5SiO2), our DPF enable highly efficient particulate matter trap systems by offering:
*Low thermal expansion
*High filter specific surface area
*Low pressure drop
*Long-term durability performance
*High soot removal: >95.4%
*This product was only the carrier for the Catalyzed diesel particulate filter (CDPF) as below.

2. Catalyzed diesel particulate filter (CDPF)
Catalyzed diesel particulate filters are the solution for diesel particulate matter control. >95% PM filtration efficiency and low regeneration temperature are achieved through the combination of wall flow type ceramic honeycomb with patented catalyst formulation. In additional of PM reduction, catalyzed diesel particulate filter is also reducing carbon monoxide and hydrocarbon from engine exhaust stream.

Current product offer covers from 2.5 liters (5.66x6") to 25 liters (11.25x15") as a single CDPF which would be perfect solution for diesel engine displacement from 2 to 20 liters.

Key characteristics of catalysts include:
*Low pressure drop
*Excellent performance
*Self-regenerationunder special conditions
*Can be applied to on-road and off-road diesel engines
*Can be provided in a standard or custom configurations

Property (uncatalyzed)		100/17	200/12
Cell density	cpsi	100	200
Cell density	cpscm	15.5	31.0
Wall thickness	inch	0.017	0.012
Wall thickness	mm	0.432	0.305
Open frontal area (OFA), %		34.5	34.5
Geometric surface area (GSA)	Inch2	33.3	47.0
Geometric surface area (GSA)	m2/l	1.31	1.85
Hydraulic diameter	Inch	0.083	0.059
Hydraulic diameter	mm	2.11	1.49
Modulus of rupture (psi/cpscm)		350	300
Porosity (%)		48	48
Coefficient of thermal expansion 102 cm/cm/ (20-800) --maximum average		5	5
Mean pore size (micron)		13	13
Melting temperature (Degree C)		1460	1460

Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company. It cooperate with and invest to make to the funds in form of company in A large-scale enterprises, BoCent Advanced Ceramic Co., Ltd. This corporation is the biggest enterprise which devote to High-tech at saving energy and environmental field. BoCent Advanced Ceramic is professional manufacturer for environmental ceramic product, such as storage filter, foam filter, DPF and catalyst converter, infrared burning plates. As one of Shareholders, Beihai Xiaoming primarily responsible for Overseas Market Operation.

With the speedy development of solar industry, Beihai Xiaoming International Imp&Exp Co., Ltd interested to set foot in the Great Green Solar Industry and built up manufacture base in Nanning for research & develop, manufacture and sell solar modules, solar power supply system, solar lighting system, solar pumping/ irrigation system and other solar application products etc. The base covers and area of 3600 square meters with luxurious show room and dust-free workshop, equipped with many kinds of high advance and sophisticated devices and instruments

Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.

We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.

With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
