Application:
General vessel mooring,
barge and dredge working line,
towing,
lifting sling,
other fishing line

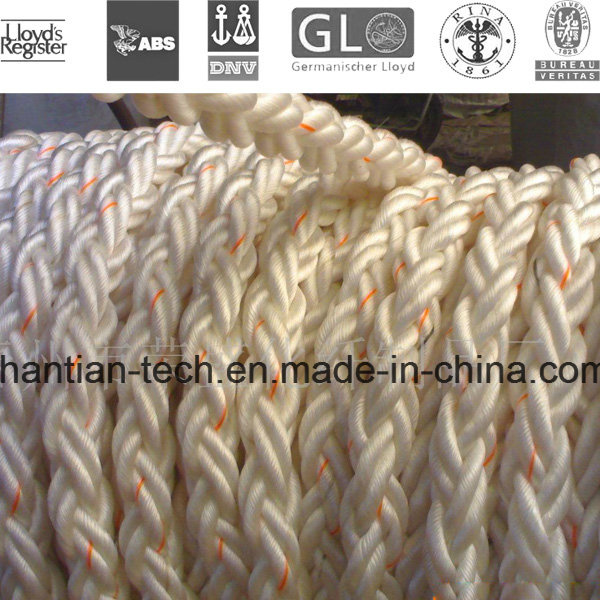

8-strand Braided sailing Rope is commonly used as moorning or towing rope for commerical vessels in marine application. Plaited 8-strand ropes have four right hand laid strands and four left hand laid strands which produces a torque blanced rope. 8-strand ropes are easily spliced and have good abrasion resistance. Fivers can include polyamide multifilament, polyester, ploypropylene monofilament, polypropylene multifilament and polyester & polypropylene mixed.
8 strand polyamide multifilament sailing Rope is consisted of 100% polyamide fiber, so that is will not be corrsion due to mold erosion. The polyamide rope has excellent elongation. High strength and better shock absorption property.
8 strand polyester Braided sailing Rope is characterized by their resistance to weather conditions, good strength and abrasion resistance. In comparison with polyamide ropes, they are flexible and soft even when wet.
8 strand Polypropylene sailing Rope is a kind of low cost general purpose rope that floats and does not absorb water. It has low friction coefficient and good resistance to abrasion, sunlight and cyclic loading wet and dry.
8 strand Polyester & PP Ropes is combined by high strength polyester fiber and high strength polypropylene fiber. The polyester fiber gives the rope superior abrasion and friction resistance to its higher working and melting temperature and the polypropylene fiber decreases the specific gravity of the rope and makes it float on water.
8 strand polypropylene multifilament sailing Rope floats on water as it is lightest among synthetic fiber ropes. It is easy to handle as it is smooth and flexible by manufacturing the rope with fiber that are microscopically thin at 0.05mm using the latest precision extruding technologies.
Specification | PA Multifilament | Polyester | Polypropylene | PET/PP Mixed |
Dia | Cir | Ktex | KN | Ktex | KN | Ktex | KN | Ktex | KN |
20 | 2-1/2 | 250 | 80 | 304 | 63 | 181 | 53 | 194 | 68.7 |
24 | 3 | 360 | 112 | 437 | 90 | 260 | 75 | 279 | 96.3 |
28 | 3-1/2 | 490 | 150 | 595 | 118 | 354 | 100 | 380 | 130 |
32 | 4 | 640 | 200 | 777 | 150 | 463 | 132 | 479 | 167 |
36 | 4-1/2 | 810 | 250 | 984 | 190 | 586 | 160 | 629 | 210 |
40 | 5 | 1000 | 300 | 1210 | 236 | 723 | 200 | 776 | 257 |
44 | 5-1/2 | 1210 | 355 | 1470 | 280 | 875 | 236 | 939 | 308 |
48 | 6 | 1440 | 425 | 1750 | 335 | 1040 | 280 | 1110 | 364 |
52 | 6-1/2 | 1700 | 500 | 2050 | 400 | 1220 | 335 | 1320 | 424 |
56 | 7 | 1970 | 560 | 2380 | 450 | 1420 | 375 | 1520 | 489 |
60 | 7-1/2 | 2260 | 630 | 2730 | 500 | 1630 | 425 | 1750 | 558 |
64 | 8 | 2570 | 710 | 3110 | 560 | 1850 | 475 | 1990 | 631 |
72 | 9 | 3250 | 900 | 3930 | 710 | 2340 | 600 | 2520 | 789 |
80 | 10 | 4010 | 1120 | 4860 | 900 | 2890 | 750 | 3110 | 963 |
88 | 11 | 4860 | 1320 | 5880 | 1060 | 3500 | 900 | 3750 | 1160 |
96 | 12 | 5780 | 1600 | 6990 | 1250 | 4170 | 1060 | 4470 | 1370 |
104 | 13 | 6780 | 1800 | 8210 | 1500 | 4890 | 1250 | 5260 | 1590 |
112 | 14 | 7870 | 2120 | 9520 | 1700 | 5670 | 1400 | 6050 | 1840 |
120 | 15 | 9030 | 2360 | 10900 | 1900 | 6510 | 1600 | 6980 | 2100 |
128 | 16 | 10100 | 2650 | 12400 | 2240 | 7410 | 1900 | 7950 | 2370 |
136 | 17 | 11600 | 3000 | 14000 | 2500 | 8360 | 2120 | 8950 | 2660 |
144 | 18 | 13000 | 3350 | 15700 | 2800 | 9370 | 2360 | 10100 | 2970 |
160 | 20 | 16100 | 4250 | 19400 | 3350 | 11600 | 2800 | 12500 | 3630 |
