Product Specifications
| Prod Model: |
customized |
| Color: |
Silver Copper Coloree, Silver Copper Colored |
| Style: |
Mechanical Seal |
| Material: |
Metal |
| Shape (For Gasket): |
Flat Gasket |
| Standard: |
Nonstandard |
Product Description

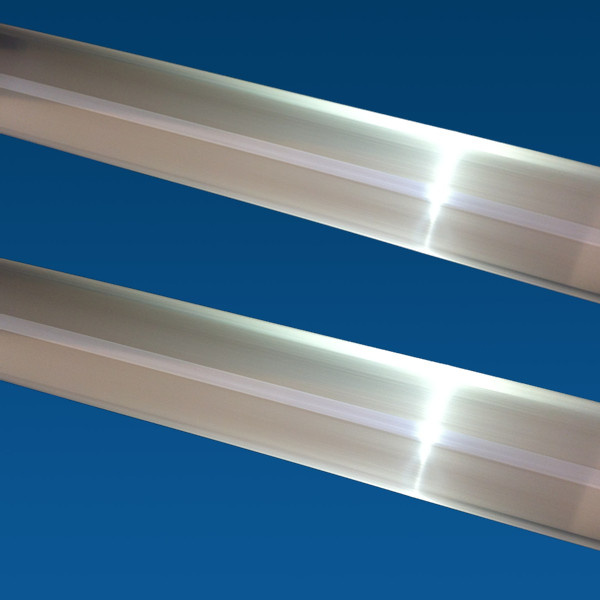

Material:
Clad material: Gold, gold silver alloys, fine silver, silver nickel, silver copper, silver cadmium oxide, silver tin oxide, etc;
Base material: Fine silver, silver alloy, copper, brass, phosphor copper, beryllium copper, zinc-nickel-copper alloy, nickel, iron, stainless steel, Monel, etc.;
Specification:
Clad material: Thickness: 0.03~1.0mm;
Base material: Thickness: 0.03~3.5mm;
Inlay, double-lay, overlay, tri-layer, onlay, clad strip + stamping;
Application:
Clad strip is typically applied in conducting elements such as wall switches, protectors, thermostats, micro-motor brushes, micro-switches, etc;
Tri-layer stamping contacts are typically applied in relays, micro-switches, thermostats, circuit breakers, protectors, and so on.
Advantage:
The main feature of clad strips is that they produce excellent comprehensive performance (such as compositing better than electroplating, stable bonding, and having no layers) and save a lot of precious metals by organically combining unique electrical and chemical properties of precious metals (gold, silver, platinum, palladium, rhodium) with good mechanical properties of copper alloys and so on.
The clad strip bonded with dissimilar material overcomes some disadvantages of single metal to develop the individual advantages of different metals, presenting good comprehensive performance, such as high bonding strength, good electrical/thermal conductivity, corrosion resistance, shock absorption, abrasive resistance, and special characteristics specific to clad strips, etc. Besides, they also have other advantages such as simple process without traditional riveting or welding process, low temperature rise, excellent performance, and an integrated structure design.
The welding surface of tri-layer contacts utilizes materials such as Monel, CuNi, Ni, Fe and so on, to improve welding performance. Welding positions are bonded by melting metal, which has advantages such as less heating time, clean working environment, easy to locate and good welding appearance. With Cu as the transitional material, low contact resistance and strong electrical performance can be realized.
Capacity:
Clad strips: About 30 tons/month;
Tri-layer stamping contacts: About 40 million PCS/month
Description of the delivery time:
1. Sample delivery time: The general situation is 15 working days ( new molds need additional molding time)
2. Batch production delivery time: Below 500Kg is 15 days; 500Kg~2000Kg is 25 days; 2000Kg~5000Kg was 30 days ( new molds need additional molding time)
Warrantee
Payment will be returned if by any reason products couldn't be delivered.
Within 7days after receipt of shipment, buyer's complaint is accepted for defects of product apperance, wrong color, wrong material, size, etc.
For serious delay in shipment, the buyer could require to return the payment.
For any other mistakes made by supplier, buyer could require compensation or refund of money.
Nanjing Rehoboth Alloy Material Co., Ltd, located in Gaochun Economic Development Zone, is a silver-copper composite strip-based manufacturer of precious metal contact materials.
The company covers an area of 13, 200 square meters, the plant production area of 6, 000 square meters. Our predecessor is Wenzhou Ren-Rong alloy Co., Ltd. Located in Yueqing City, Zhejiang Province, China. After years of development, the company continued to expand production scale, complete production equipment, variety of materials cover.
