Product Specifications
Prod Model: |
GT-C27B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Gt-C27b |
Product: |
Air Permeability Tester |
Air Permeability Tester: |
Digital Air Permeability Testing Machine with CE |
Product Description

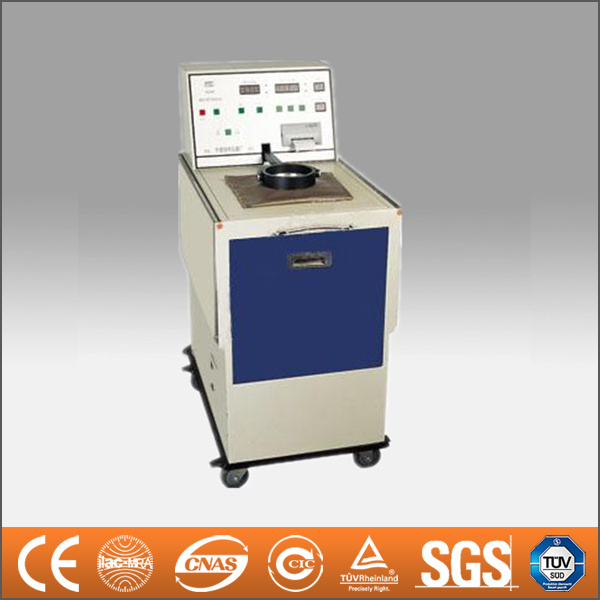

GT-C27B Digital Air Permeability Testing Machine with CE
Air Permeability Tester, Fabric Air Permeability Tester
Application
It is used to test the air permeability performance of various woven fabrics, including textile products like knitted fabrics, non-woven fabrics, and other industrial filter materials etc.
Features
1. Automatic clamp sample and change nozzle, fast test.
2. Built -in continuous test mode, test units can be changed as needed.
3. Chinese LCD menu operation, computer interface deployed.
Why choose us?
1. Considering different countries plugs, manually change thevoltage from 110V to 220V, insurance indicator.
2. Excellent Aftersale Service:
16 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Pakaging:
Simulation Animatronic Costom Triceratops are covered with air bubble fim before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Model | GT-C27B |
Pressure differential range | 1~4000Pa |
Permeability | 0.1~12000mm/s |
Measuring error | ≤±2% |
Measurable fabric thickness | ≤12mm |
Testing area | 5cm2;20cm2;50cm2;100cm2 Dia.50mm(≈19.6cm2) Dia.70mm(≈38.5cm2) |
Power supply | AC220V 50Hz 2KW |
Dimension | 1150×650×1150mm |
Weight | 75Kg |
Standards | GB/T5453 GB/T13764 |
ISO9237 ISO7231 ISO5636 |
BS5636 |
ASTM D737 |
DIN 53887 |
JIS L1096 |
BS5636 |
