Product Specifications
| Prod Model: |
HPS1408A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TV Front-end Equipment |
Product Description

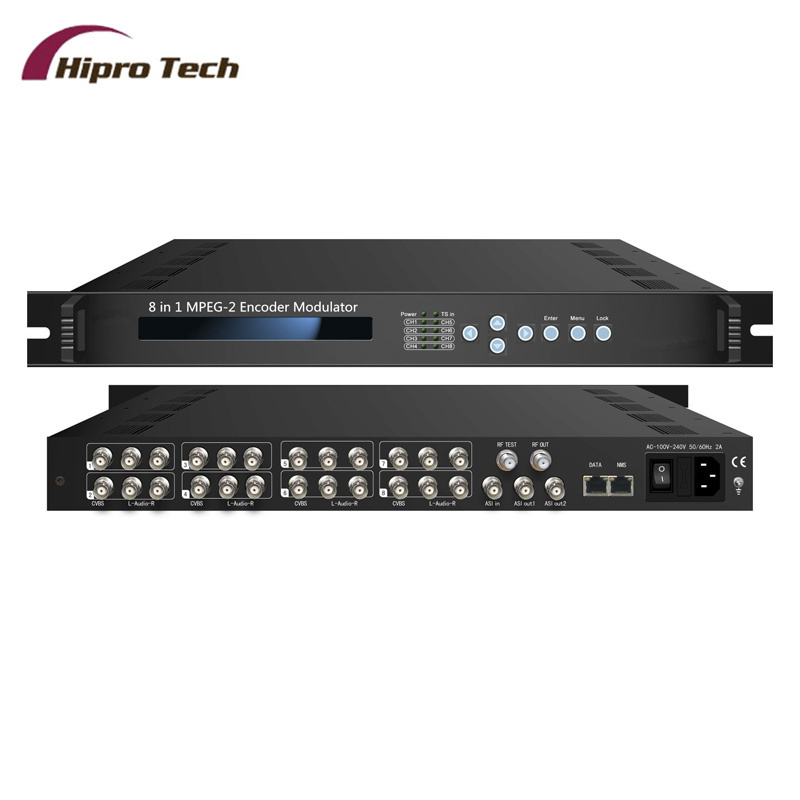

8 Channels AV Modulator with DVB-T RF out
Product overview
HPS1408A is a MPEG2 Encoding and DVB-T modulation integrated device to convert 8 CVBS A/V signals to DVB-T RF out in the frequency range of 30~999MHz. It is also equipped with 1 ASI input for remux and output with ASI and IP ports. The signals source could be from satellite receivers, closed-circuit television cameras and Blue-ray players etc. Its output signal is to be received by a DVB-T standard TV or STBs.
In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, the device also can be used in public place such as metro, market hall, theatre, hotels, resorts, etc for advertising. It also can be used for monitoring, training and educating in company, schools, campuses, hospital.
Key Features
* 8* CVBS in, 1*ASI in for re-mux
* MPEG2 Video encoding
* Support PAL, NTSC SD signal
* IP (2xMPTS or 8xSPTS) output over UDP
* 2 DVB-T RF out (2 adjacent carriers)
* LCN support (Logical Channel Number)
* Excellent modulation quality MER≥42dB
* RF Frequency range 30Mhz~999Mhz
* LCD display, Remote control and firmware
* Web NMS Management
* Updates via web/Ethernet
* Lowest cost per channel --- breakthrough price
Principle chart
|
Video Encoding |
DVB MPEG-2 Encoding |
|
Input 8*CVBS, 1*ASI (BNC) |
Resolution
PAL:720×576_50i, 640×576_50i,352×288_50i, 320×288_50i,
176×288_50i, 176×144_50i
NTSC:720×480_59.94i,544×480_59.94i,352×240_59.94i, 320×240_59.94i,176×240_59.94i, 160×120_59.94i |
|
Audio Encoding |
MPEG 1 Layer, AC3Encoding |
|
Sample rate 48KHz |
Bit rate: 64kbps, 96kbps, 112kbps, 128kbps,160kbps,192kbps, 224kbps,
256kbps, 320kbps |
DVB-T Modulator
|
EN300744Standard |
|
FFT mode: 2K, 8K |
|
Bandwidth: 6M, 7M, 8M |
|
Constellation: QPSK, 16QAM, 64QAM |
|
Guard Interval:1/4, 1/8, 1/16, 1/32 |
|
FEC:1/2, 2/3, 3/4, 5/6, 7/8 |
|
MER ≥42dB |
|
RF frequency:30~999MHz, 1KHz step |
|
RF out : 2*RF COFDM DVB-T out (2 carrierscombined output) |
|
Double output bandwidth |
|
RF output level: -30~-10dbm (77~97 dbμV), 0.1dbstep |
|
Interface |
Local interface:LCD + control buttons |
|
RemoteManagement: Web NMS |
Output : ASI Out (BNC Type)optional
2xMPTS or 8 SPTS out |
|
NMS interface: RJ45, 100M |
|
Language: English |
|
General |
Power supply: AC 100V~240V |
|
Dimensions : 482mm×410mm×44mm |
|
Weight : 5KG |
|
OperationTemperature: 0~45 |
|
