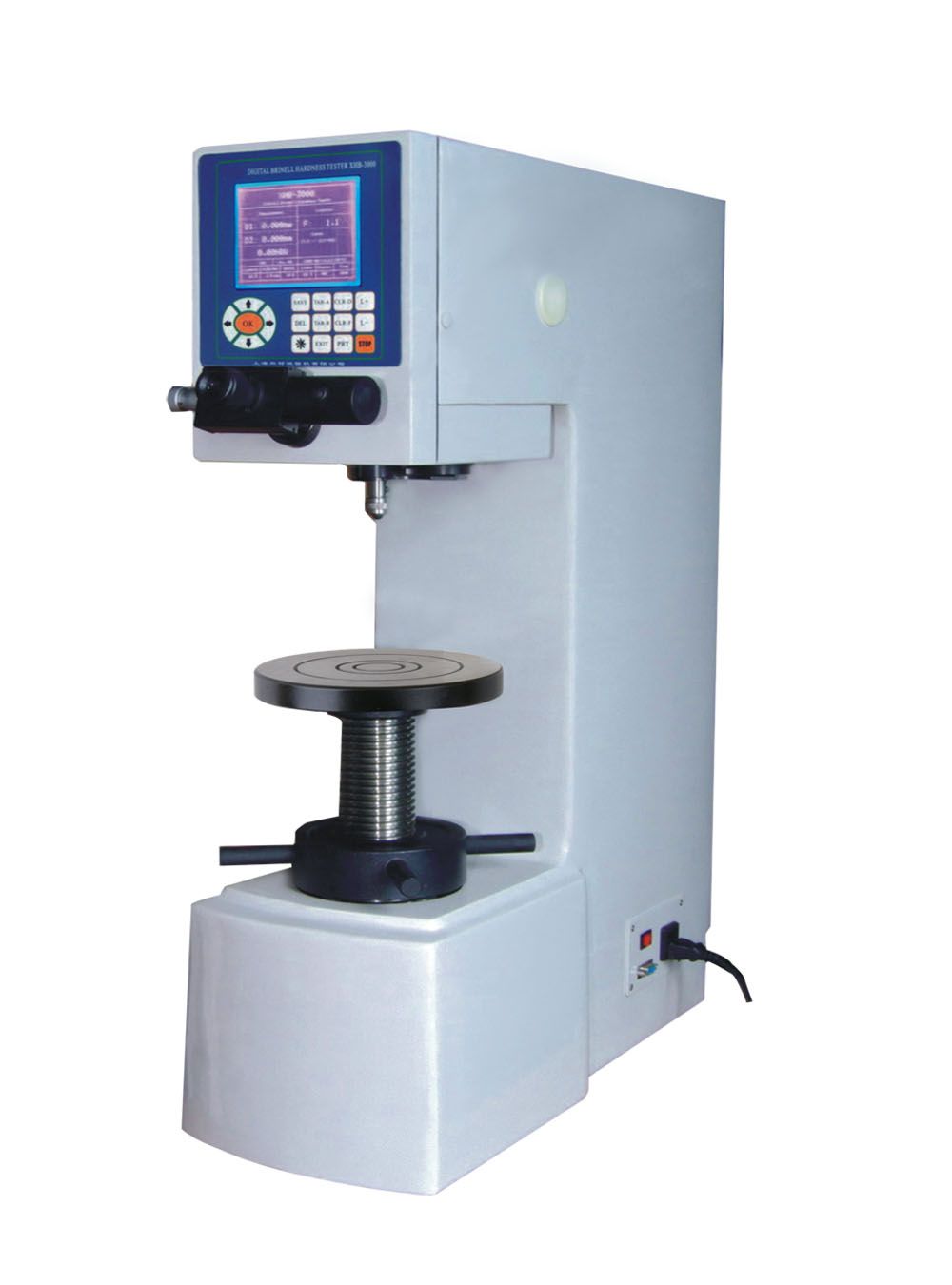

Digital Brinell Hardness Tester XHB-3000
| Supplier: |
TIME Group Inc. |
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Quantity:: |
|
| Trade Terms: |
FOB,CFR,CIF |
|
Product Specifications
| Prod Model: |
XHB-3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard: |
GB/T |
| Application: |
Plastic |
| Type: |
Brinell Hardness Tester |
| Measuring Range: |
HB |
Product Description
XHB-3000 Digital Brinell Hardness TesterThe Brinell Hardness test that shows the largest indentation among all the hardness tests is able to reflect the comprehensive features of the material, and the test is unaffected by the organizational micro-dioptre and the compositional unevenness of the speciment; And hence it is a hardness testing with high precision. The Brinell hardness test is widely used in such industrial fields as metallurgy, forging, casting, unhardened steel and nonferrous metals industries, as well as in the laboratories, universities, colleges and scientific research institutes.
|
Specification |
|
|
|
|
|
XHB-3000 |
|
Test force |
|
|
|
|
: |
612.9N (62.5Kgf), 980N(100Kgf), 1226N(125Kgf), 1839N(187.5Kgf), 2452N(250Kgf), 4900N(500Kgf), 7355N(750Kgf), 9800N(1000Kgf), 14700N(1500Kgf), 29400N(3000kgf) |
|
Max Height of the speciment |
|
|
|
: |
225mm |
|
|
|
Max Distance from the indenter center to the instrument panel |
: |
135mm |
|
|
|
Magnification of the microscope |
|
|
|
: |
20X |
|
|
|
Min Reading Grade of the Drum wheel of the microscope |
: |
0.00125mm |
|
|
|
Power supply |
|
|
|
|
: |
AC220V/50-60Hz |
|
|
|
Accuracy of Displayed Hardness Value |
|
|
|
: |
|
|
|
|
Hardness Range(HBW) |
|
|
Max tolerance% |
|
|
Repetition% |
|
|
|
≤ 125 |
|
|
|
± 3 |
|
|
|
≤ 3.5 |
|
|
|
125< HBW≤ 225 |
|
|
|
± 2.5 |
|
|
|
≤ 3.0 |
|
|
|
> 225 |
|
|
|
± 2.0 |
|
|
|
≤ 2.5 |
|
|
|
|
|
|
|
|
|
|
|
|
TIME Group Inc. was established in 1984 is a leading manufacturer of Material Testing Machines in China. TIME Group Inc. has over 2, 800 dedicated, highly skilled employees in facilities located in China. From engineering, service, training, to front-line support, our commitment to customer satisfaction is the driving force behind everything we do. In 1995, we achieved the ISO 9001 certificate, and we have got many other certificates, such as CE. We are not only famous in China, but also have been exporting into more than 35 oversea countries and area.
JINAN SHIJIN GROUP was established in 1952, is the leading company in testing machine industry, honored as the excellent HI-TECH company in China. In August, 2003, TIME GROUP INC. Merged SHIJIN GROUP, this is a landmark in China testing machine industry.
We invested 180 million RMB to build a new factory of TIME SHIJIN GROUP in the Jinan economy & technology development district in 2010, and it occupies 102 Mu, with building area 46800 sq. M. It consists of 10 production lines: Foundry, Heat Treatment, Painting, Big Parts, Accessories, Bearings, Electric, Oil Sources, Load Frame, Installation & Calibration, Diversified Big Digital Controlled Processing Centers and 131 units of special machine tool equipments. The advantages of our new factory are not only the biggest production capacity in the Testing Machine industry of China, but also with the most modern technology.
Our main products include:
--Servo Hydraulic Universal Testing Machine
--Hydraulic Compression Testing Machine
--Electronic Universal Testing Machine
--Pendulum Impact Testing Machine
--Torsion Testing Machine
--Fatigue Testing Machine
--Friction & Wear Testing Machine
--Hardness Tester
--Spring Testing Machine
--Metallographic
