I. Product Features

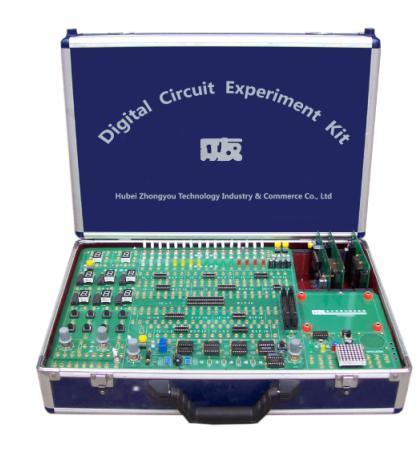

The experiment kit is tightly close to such teaching syllabus as Digital Electronic Technology Basis and etc, experiment contents are abundant, which could fully meet the teaching requirements of courses about digital circuit on electricity major among colleges and universities.
The experiment kit adopts modularization design with flexible structure. It could compose various experiment systems with different depth and contents by configuring different modules, which could meet different requirements for users.
It adopts novel line-bridge structure, which provides a wide and reliable experiment space and expansion space for users.
It provides 7128 adapter board and 1032 adapter board, which could open lots of programmable logic device experiments.
Hardware materials are abundant and logic pen tool module is provided, which makes experiment more convenient.
II. Performance Parameters
(1) Power Supply
Input AC 220V
Output DC 5V/3A, -5V/0.5A, +12V/1A, -12V/0.5A
(2) Signal Source
Fixed frequency square wave: 4MHz, 2MHz, 1MHz, 500 kHz, 200 kHz, 100 kHz, 10 kHz, 1 kHz, 500 Hz, 100 Hz, 10 Hz, 1 Hz
Sine wave: 90 Hz~100 kHz
Triangular wave: 100 Hz~100 kHz
Square wave: 100 Hz~100 kHz, duty ratio is continuously adjustable.
Single pulse source: Positive/ negative pulse output
(3) 16 DIP switches, 8 key switches, 32 indicator lights, 8 groups of digital tubes and one 8× 8 DOT matrix
(4) Abundant Component Stock: Permutable discrete components, including two precise potentiometers (10K, 100K)
(5) Eleven Military IC Sockets: One DIP8, four DIP14, three DIP16, two DIP20, one DIP40
(6) Logic Pen: TTL level
(7) Dimension: 45cm× 31cm× 11cm
III. Experiment Contents
(1) Transistor switch characteristic and its application
(2) TTL gate circuit parameter test experiment
(3) TTL gate circuit logic function test experiment
(4) Test experiments of TTL collector open gate and three-state output gate
(5) CMOS gate circuit parameter test experiment
(6) CMOS gate circuit logic function test experiment
(7) Connection and drive experiment of integration logic circuit
(8) Encoder and its application
(9) Decoder and its application
(10) Digital tube display experiment
(11) Data selector and its application
(12) Adder and numeric comparator experiment
(13) Design and test experiment of combinational logic circuit
(14) Integration trigger and its application
(15) Shift register and its application
(16) Counter and its application
(17) Pulse distributor and its application
(18) Mono-stable trigger and Schmidt trigger experiment
(19)Multi-vibrator experiment
(20)555 timer experiment
(21)The application experiment of EEPROM read-only memory
(22)Random access memory (RAM) and its application
(23)D/A conversion experiment
(24) A/D conversion experiment
(25) Multi-functional digital clock experiment
(26) Multi-path talent show answer machine experiment
(27) Controllable timer experiment
(28) Basic gate circuit and software application experiment (programmable experiment)
(29) Competition and risk experiment (programmable experiment)
(30) Combinational logic circuit experiment (programmable experiment)
(31) Trigger function experiment (programmable experiment)
(32) Counter experiment (programmable experiment)
(33) Traffic light experiment (programmable experiment)
