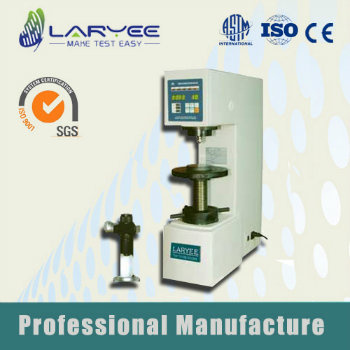

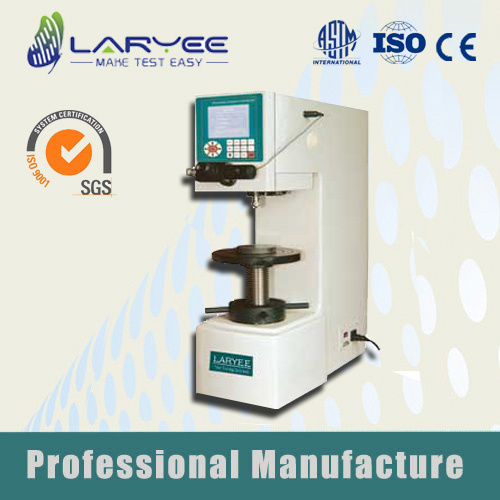

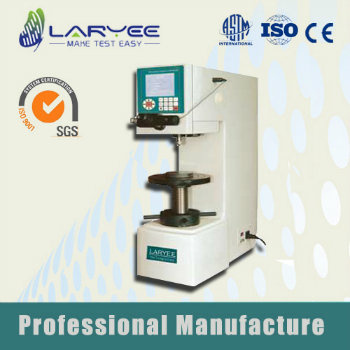

Digital Control Brinell Hardness Tester (HBS-3000)

Product Specifications

Prod Model:	HBS-3000
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Function:	Brinell Hardness Tester
Test Force:	62.5kgf-3000kgf
Hardness Measuring Range:	8-650 Hbw (Hard Metals Steel Ball)
Magnification Of Microscope:	20X
Type:	Brinell Hardness Tester
Measuring Range:	HB
Application:	Metallurgy,Forging,Casting,Nonferrous Metals
Standard:	GB/T

Product Description

Introduction
Brinell Hardness Tester is a lab instrument to measure the hardness value of all kinds of metals according to Brinell hardness principle ASTM E10 and ISO 6506. They are widely used in metallurgy, forging, casting, hardness steel and nonferrous metals industries, as well as in the laboratories, universities, college and scientific research institutes.

HBS-3000 Brinell Hardness Tester is a digital control and reading Brinell hardness tester. ally. the indentation impression can be directly measured on the instrument through microscope, and LCD screen indicates the diameter, the hardness value and 17 different hardness Scales for example HR, HV tables as well as the HBW range under the present presetting.

Characters of HBS-3000 Brinell Hardness Tester

1. Test force loading and unload motorized without heavy weight
2. Use 0.5% compression sensor to feedback
3. Microchip control system, automatically compensate the test force lost during testing
4. Test force and load dwell time can be set on the touch-keyboard, reliable repetition, precise reading, and easy operation.
5. Reading value by magnifier and value table as standard accessories.
6.With a detailed operating manual and operation video CD.

Description	HBS-3000
Test force	612.9N(62.5kgf), 980N(100kgf), 1226N(125kgf),  1839N(187.5kgf),  2452N(250kgf),  4900N(500kgf), 7355N(750kgf),  9800N(1000kgf), 14700N(1500kgf), 29400N(3000kgf)
Hardness measuring range	8-650 HBW (Hard metals steel ball)
Hardness value Max. tolerance	±3%(HBW≤125) ±2.5%(125±2%(HBW>225)
Magnification of microscope	20X
Min.division of microscope's drum wheel	0.00125mm
Max. height of specimens	220mm
Max. width of specimens	135mm
Power supply	1P~AC220V, 50/60Hz
Package Dimensions (D×W×H)	893×720×470mm
Gross weight	160kg
Net weight	130kg
Standard Accessories	Hard Alloyed Steel ball indenter:Ø2.5\Ø5\Ø10mm Testing tables: big, small and "V" Standard Hardness block: HBW 3000/10 150~250(1) HBW 750/5,150~250(1) Reading microscope:20X
