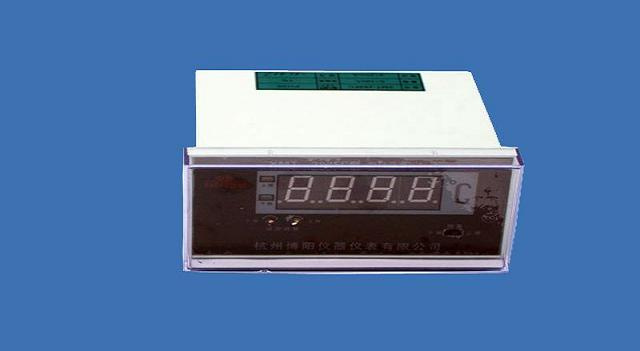

Digital Crude Measuring Intelligent Display/Control Instrument

Product Specifications

Prod Model:	XMT-288FC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Zhejiang, China (Mainland)
Power:	Electronic
Measuring Type:	Intelligent Control
Output:	4-20mA/One Group Relay
Dimension:	96*48*95mm
Brand Name:	Boyang
Usage:	Universal Testing Machine
Display Range:	-1999~9999
Model Number:	Xmt-288FC
Measurement Range:	Pressure/Temperature/Level

Product Description

Description
BPK-III serie intelligent instruments are integrated functions of display, control, transmitting and other, can be directly inputted standard thermocouple, thermal resistance, current and voltage signal, it can display and control the physical quantities, such as temperature, pressure, liquid level.

Features
² Modular design, high performance switching power supply
² The input is compatible with a variety of signal, range and the decimal point can be set and correct optionally
² Two relay outputs, each relay can be set upper and lower control freely, relays pull-in and release value can be set optionally

Applications
²Applicable to petroleum, chemical, thermal, mechanical and electrical equipment, municipal engineering and other industries, is the best product for automatic control system

Performance Specification


Model:	BPK-IIIS2
Using range:	pressure/temperature/level/flow
Power:	4-20MA
Output:	4-20MA
Measurement medium:
Weight:	0.4KG


Technical Data


Input signal	Simulation voltage quantity level mV signal, reference voltage(1~5),(0~5)V Simulation electricity flow(0~10)mA,(0~20)mA,(4~20)mA Temperature transmitter: Pt10 C50BSKEJTWRe etc PI Pure input square wave,sine wave or triangular wave
Display measured range	-1999~9999 character(S4 model: display pressure level and pressure curve
Accuracy	0.2%Fs±1 character or 0.5%Fs/±1character
Control way	Three position with return difference
Switch output	Relay AC220V/3A; DC30V/3A
Anolog output	(0~10)mADC,(0~20)mADC,(4~20)mADC (0~5)VDC,(0~10)VDC,(1~5)VDC
Output power supply	Dc24V,50mA(S4 model: DC 24V,34mV)
Communication mouth	RS-232,RS-485
Alarm way	Optional up down relay alarm output, LED indicator(S4 model has big LED screen)
Setting/display way	Faceplate by digital set, set value can maintain without electricity
Environment condition	Ambient temperature(0~50)°Crelative humidity ≤85% RH
Voltage of power supply	AC220V±10%; 50Hz±1Hz
Stored time	Model S4 display the pressure value and the pressure curve, with storage length: 1.5 days(spacing 1 second)~360 days(spacing 4 minutes)
