Product Specifications
| Prod Model: |
LJZ2S-500x4200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Repeating Fixed Length Precision: |
≤0.2 mm |
| Cutting Angle Error: |
5 |
| Cutting Plainness: |
<=0.1 mm |
| Cutting Harshness: |
Ra12.5um |
| Power Supply: |
380V 50Hz |
| Motor Power: |
2.2 Kw × 2 |
| Rotary Speed: |
2800 Rpm |
| Cutting Angle: |
90° 45° |
Product Description
Description

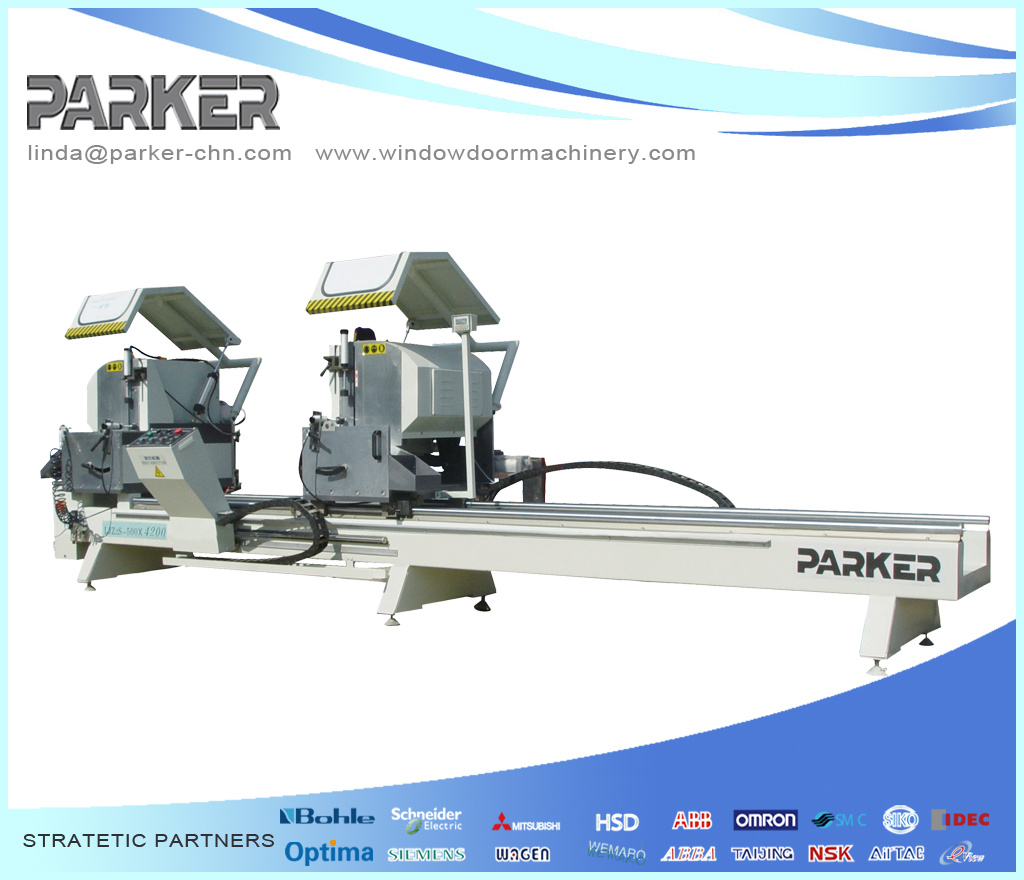

LJZ2S-500×4200 digital display double head precision cutting saw is designed to cut aluminum alloy profiles, PVC profiles, aluminum windows, doors, curtain walls, and so forth. This double head cutting machine adopts the imported special hard-metal saw with high precision and efficiency for cutting aluminum alloy doors and windows. The cutting precision has reached the advanced level in the world.
Features
1. The digital display double head precision cutting saw uses imported digital display system and original imported alloy cutting blades specialized for cutting aluminum profiles.
2. With large saws and long structures, this double head cutting machine has a wide cutting range.
3. High-precision main spindle makes the blade rotate smoothly.
4. LJZ2S-500×4200 digital display double head precision cutting saw adopts the linear bearing pair with high cutting precision.
5. Cutting angles of this double head cutting machine are 45 ° and 90 °. Locating and clamping from two directions makes cutting accurate and stable.
6. The high-precision main shaft makes the saw stable and the surface smooth.
7. Parker digital display double head precision cutting saw is equipped with gas-liquid damping cylinder. It realizes smooth feeding and steady moving.
8. If CNC system is put in, the double head cutting machine can make cutting much more precise and the operation more visualized.
9. The automatic opening and closing protecting cover makes the operation safe and easy.
Technical Parameters
Model | LJZ2S-500×4200 |
| Name | Digital Display Double Head Precision Cutting Saw |
| Repeating Fixed Length Precision | ≤0.2 mm |
| Cutting Angle Error | ±5′ |
| Cutting Plainness | ≤0.1 mm |
| Cutting Harshness | Ra12.5 µ m |
| Power Supply | 380V 50Hz (Three phase, four wire) |
| Motor Power | 2.2 kW × 2 |
| Rotary Speed | 2800 rpm |
| Saw Blade Size | Φ500 × 4.4 × Φ30 × Z120 |
| Air Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 200 L/min |
| Cutting Angle | 90° 45° |
| Cutting Length | Max. 4200 mm Min. 400 mm |
| Cutting Width | Max. 140 mm |
| Cutting Height | Max. 300 mm |
| Feeding Speed | 0 to 3 m/ min (variable speed) |
| Overall Dimension | 5500 mm × 1700 mm × 1800 mm |
| Weight of Double Head Cutting Machine | 1800 kg |
