Product Specifications
| Prod Model: |
1150/1300/1370/1620/1850 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Cutting Width: |
1150/1370/1620mm |
| Cutting Speed: |
45 |
| Max Cutting Length: |
1150/1370/1620mm |
| Max Cutting Height: |
16.5mm |
| Warranty: |
One Year |
| Classification: |
Single-blade Cutter |
| Driven Type: |
Hydraulic |
| Blade Material: |
HSS |
| Computerized: |
Computerized |
Product Description

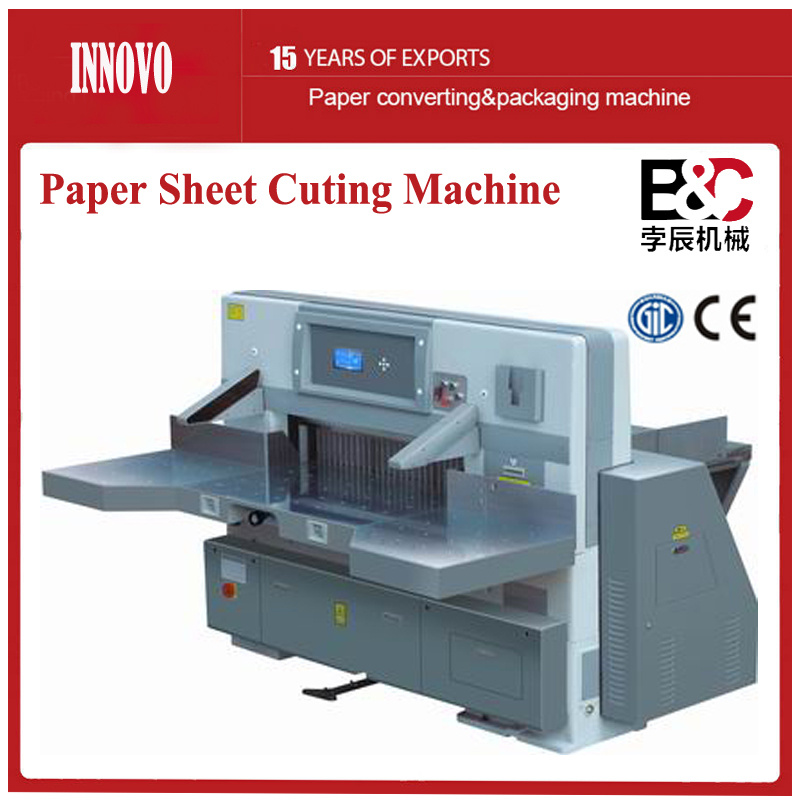

Digital Display Paper Cutter (1150 / 1300 / 1370 / 1620 / 1850)Characteristic:
(Digital display double worm wheel double guide)
1. Usage: Liquid Digital Display Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.
2. Double worm wheel: Our factory is the only and the first factory have this technology, It approves the pressure. Double worm wheel has got patent in our country. The patent No. Is: 200720192036. X
3. Double Guide Device: The Paper Cutting Machine pusher adopts double linear guide and roller ball screw. Our high rigidity linear guides design has its patent no: ZL 2005 2 0074357.0
4. Photo cell: It is equipped with a photo cell safety protection device.
5. Over load protection device.
6. Convenient knife changing device.
7. Worktable chrome treatment: The worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
8. Air ball: Air balls are installed in the worktable. In this way, the paper sending work will be easy and accurate.
9. Cutting controller: Both of the hands of the user operate the machine. It can cut paper one time.
10. Safety notice & Glass covers: Paper Cutting Machine has passed CE certificate. All the safety notice and direction mark is used to cause the safety attention of the user, and do protection and maintenance.
| Digital Display Paper Cutter (1150 / 1300 / 1370 / 1620 / 1850) | | |
| Machine model | 1150 | 1370 | 1620 | 1850 | Unit | |
| Max cutting width | 115 | 137 | 162 | 185 | cm | |
| Max cutting length | 116 | 145 | 165 | 195 | cm | |
| Max cutting height | 16.5 | 16.5 | 16.5 | 16 | cm | |
| Max clamping pressure | 40000 | 45000 | 55000 | 60000 | N | |
| Cutting speed | 45 | 45 | 45 | 45 | cycles/min | |
| Sending paper motor power | 4 | 4 | 5.5 | 7.5 | kw | |
| Cutting motor power | 0.55 | 0.75 | 0.75 | 1.1 | kw | |
| Wind pump motor power | 0.75 | 0.75 | 1.1 | 1.1 | kw | |
| Net weight | 4000 | 4500 | 5500 | 8500 | kg | |
| External dimension | 261*267*165 | 290*289*171 | 315*296*171 | 361*394*177 | cm | |
| |
| Packing dimension | 260*157*200 | 302*157*200 | 337*157*220 | 395*180*236 | cm | |
| |
