Zhengzhou Nanbei Instrument Equipment Co., Ltd. >> Digital Display Push and Pull Force Gauge with ISO Approved

Digital Display Push and Pull Force Gauge with ISO Approved

Name: Digital Display Push and Pull Force Gauge with ISO Approved
Brand: China-Manufacturer-Directory.com
SKU: 748978445
Availability: InStock
Rating: 4.3 (136 reviews)

Supplier:	Zhengzhou Nanbei Instrument Equipment Co., Ltd.
Price:	US $ 135-3863/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	HF-1000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Peak Load Value:	1000n/100kg/220lbs
Load Division Value:	1n/0.1kg/0.1lbs
Indication Error:	0.50%
Unit:	N / Kg / Lb
Data Interface:	RS232 N
Gross Weight:	~2000g
Size:	27318270 Mm
Ambient Temp.:	5c~35c
Transport Temp.:	-10 C~60c
Relative Humidity:	15%~80%Rh

Product Description

ZHENGZHOU NANBEI INSTRUMENT EQUIPMENT CO., LTD
Digital display push and pull force gauge with ISO approved
Product Description of Force Gauge

The HF series are digital force gauge with compact size, high accuracy,

They are easy to operate and handy to carry out.

Widely applied in electron, high & low voltage electrical appliance, hardware, automobile parts,

lighter and ignition system, light industry, mechanical, textile,

and so on industries for testing of pull or push load test, insertion force or pull and destructive experiment.

This digital force gauge is new generation pulls the pressure measuring instrument.

Feature of force gauge:

1.Connect the computer in-phase test.

2.The compare value set by user's request.

3.Big memory deposit function.

4.LCD overturns show.

5.Auto peak.

6.Auto close time set.
All model force gauge we can supply as follows:

Model specification sheet of force gauge with inner sensor

Model specification		HF-2	HF-5	HF-10	HF-20	HF-50	HF-100	HF-200	HF-500	HF-1000
Peak load value	N	2	5	10	20	50	100	200	500	1000
	kg	2	0.5	1	2	5	10	20	50	100
	lbs	0.44	1.1	2.2	4.4	11	22	44	110	220
load division value	N	0.001	0.001	0.01	0.01	0.01	0.1	0.1	0.1	1
	kg	0.0001	0.0001	0.001	0.001	0.001	0.01	0.01	0.01	0.1
	lbs	0.0001	0.0001	0.001	0.001	0.001	0.01	0.01	0.01	0.1
Indication error		0.50%
Unit		N / kg / lb
Data interface		Rs232 nine-hole socket
Power		rechargeable batteries, charger(charging voltage 100V-240V)
Sensor structure		S-tye sensor with high precision (inner sensor)
Ambient temp.		5° C~35° C
Transport temp.		-10 C~60° C
Relative humidity		15%~80%RH
Working conditions		No hypocenter and corrosive medium
Gross weight		~2000g
Size		273 x 182 x70 mm

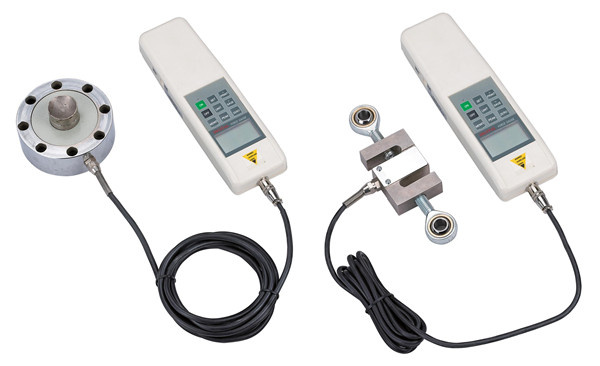

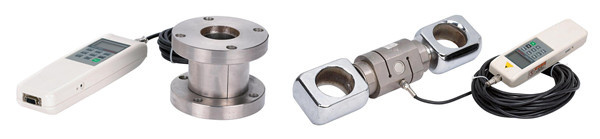

Model specification sheet of force gauge with external sensor

Model
specification

HF-2000

HF-5000

HF-10K

HF-20K

HF-50K

HF-100K

HF-200K

HF-500K

HF-1000K

Peak
load
value

2000N

5000N

10KN

20KN

50KN

100KN

200KN

500KN

1000KN

load
division
value

0.01KN

0.1KN

1KN

0.1kg

0.001kg

0.01kg

0.1kg

0.1lbs

0.001Klbs

0.01Klbs

0.1Klbs

Indication
error

±1%

Unit

N / (KN), kg / (Mg or t), lb (KIb)

Data
interface

Rs232 nine-hole socket

Power

rechargeable batteries, charger(charging voltage 100V-240V)

Sensor
structure

S-tye or column sensor with high precision (external sensor)

Ambient
temp.

5° C~35° C

Transport
temp.

-10° C~60° C

Relative
humidity

15%~80%RH

Working
conditions

No hypocenter and corrosive medium

Gross
weight

6 kg

9 kg

24 kg

36 kg

Size

280 x 200 x 170 mm

310 x 260 x 190 mm

Model specification	HF-2000K	HF-3000K
Peak load value	2000KN	3000KN
load division value	1KN
	0.1Mg
	0.1Klb
Indication error	±1%
Unit	N / (KN), kg / (Mg or t), lb (Klb)
Data interface	Rs232 nine-hole socket
Power	rechargeable batteries, charger (charging voltage 100V-240V)
Sensor structure	S-type or column sensor with high precision (external sensor)
Ambient temperature	5° C~35° C
Transport temperature	-10° C~60° C
Relative humidity	15%~80%RH
Working conditions	No hypocenter and corrosive medium
Gross weight	36 kg
Size	310 x 260 x 190 mm
