Product Specifications
| Prod Model: |
FTR-01 series |
| Size: |
2260*800*600 |
Product Description

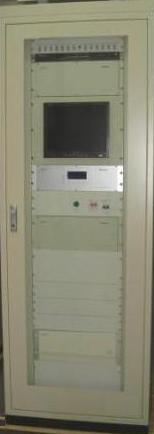

Digital fault recorder for monitoring power lines, generators and transformers
FTR-01 power system fault recorder's outstanding performance allows it to be used in monitoring power lines, generators and transformers.
Using fiber, the front end RAU (Remote Acquisition Unit) connects to the central control unit. This new structure insulates the EMC disturbance perfectly. Device can withstand (IEC225-22-4)IV, 4kV fast transient disturbance. Additionally, the RAU could be installed as far as 1000 meters from the central control unit for use when signal can not be connected to control centers.
With up to 96A/192D input channels, FTR-01 has enough channels to construct large monitoring systems. Powerful DSP digital signal processors calculate the data from the RAU and provide the vector, harmonic, phase angle, root of mean squire and power etc. For the control unit to make decisions. Adapting the principle of relay protection, FTR-01 not only monitors power lines, but also measures the generators and transformers simultaneously.
Auto Frequency Track insures accuracy in FFT analysis. Real time monitoring allows for easy construction of Remote Mimicking Boards. Slow scan recording allows for up to 10 days of data retrieve availability for research on the operation of the power system.
Through open interface of software and special format of parameter setup, user can design various monitoring and testing function.
Wuhan Fount Electronics Co., Ltd., which locates in East Lake High Technology District of Wuhan city, is not only the manufacturer (the restructured enterprise of Wuhan Power Instrument Factory) of digital fault recorder direct for former State Power Ministry but also the Chinese partner & the factual manager for former Sino-American Joint Venture of Wuhan Hathaway Power Monitoring System Co., Ltd.
On the basis of more than 20 years of experience in skilled developing and manufacturing & selling, and 10 years of experience in investing & managing of Joint Venture, We provide various Digital Fault Recorders and Circuit Break Tester on behalf of the international advanced level and also high-quality service for the global market.
FTR-01 series Digital Fault Recorder (DFR/DDFR), Portable Digital Fault Recorder (PDFR) and CBT-501 series Circuit Break Tester are our main products.
The core control unit of Digital Fault Recorder chooses the excellent embedded hardware system and Linux operating system and the special design of fiber-insulated architecture. As a result, FTR-01 with the higher reliability and stability passed both the standards for DL/T663-1999 Test requirement for 220kV-500kV power system fault and dynamics recorder and for DL/T873-2004 Specification of microprocessor-based generator-transformer unit dynamic recorder.
The core control unit of Circuit Break Tester (CBT-501 series) is chosen embedded design, and has been used in field widely. For application of special sensor measurement technology, high-performance hardware system and professional analysis software, t the installation is easy in field, and the reliability and stability are all excellent.
FTR-01 series spread widely over all kinds of voltage level substations and plants in China and abroad. Batches of our products with English, Russian or French version have been supplied to the international market.
