Product Specifications
| Prod Model: |
Flow meter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

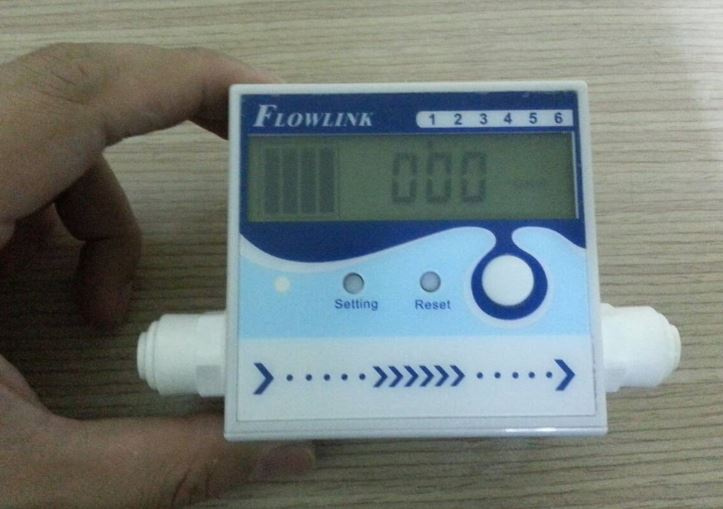

Digital Flow Meter for RO Systems Measures High Flow
Rates 0.2-2 GPM (0.748~7.48 LTM), 1/4"
Specifications
1. High Flow Rate: 0.2-2 GPM (0.748-7.48 LTM)
2. Low Flow Rate: 0.1-1 GPM (0.374~3.74 LTM)
3. Accumulated Volume Range: 0-9999 Gallons
4. Accuracy: +-5%
5.1/4 or 3/8 inch Quick connect fitting
6. Maximum Durable Pressure: 100 PSI
7. Power Input: 1.5V AAA x 2 pcs
8. Expected Battery Life: 3 year
9. Storage Temperature: 0~80 Celsius Degree
10. Operating Temperature: 10~40 Celsius Degree
Features
1. Flow Based
2. Monitor up to 6 filters
3. Real-time "Flow Rate" and "Accumulated Volume" display
4. Bar display for residual filter life
5.4 units switch: Gallon, gallon x 10, Liter, Liter x 10
6. Built-in audio alerts
7. Auto shut-off function
8.3 years expected battery life
Note:
1. The reverse flow will damage flow sensor, please pay attention to the direction of flow in the installation. The best way is to install a check valve in the end of flow meter
2. Instant tremendous pressure change or back pressure will damage the sensor, such as water hammer. Please try to install in system with pressure tank. If not, please install a check valve in behind this flow meter.
