Product Specifications
| Prod Model: |
DT325E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Printing, Paper, Label, Packaging, Mechanical |
| Color: |
Blue |
| Size: |
208mm*70mm*60mm |
| Net Weight: |
0.38kg |
| Life Time: |
5 Years |
| Certification: |
CE, RoHS |
| Warranty: |
Two Years |
| Battery Working Time: |
12 Hours |
Product Description

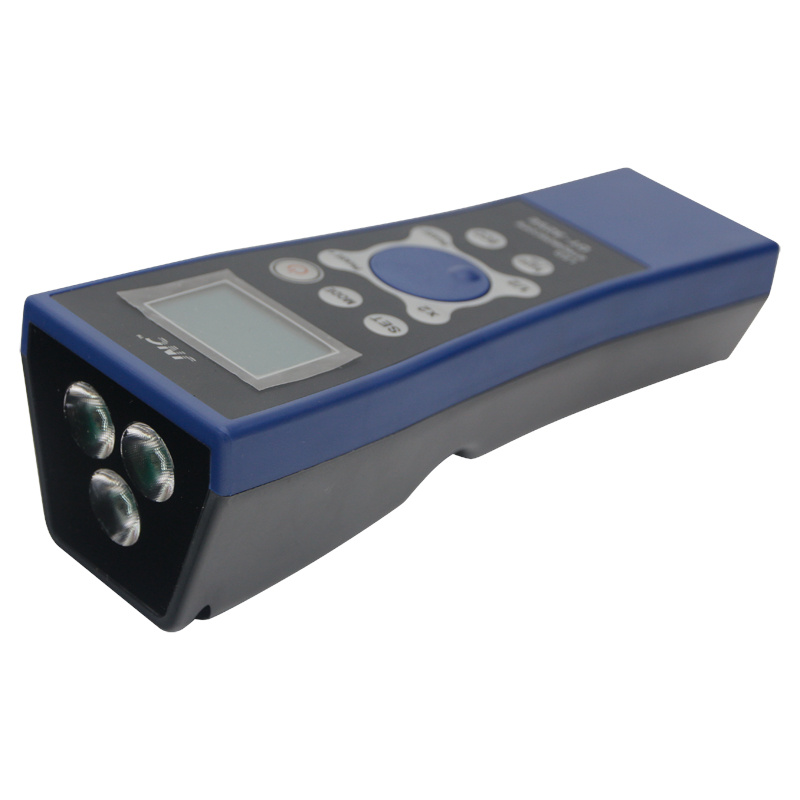

DT325E is pocket digital battery operated stroboscope, compact and light weight. It is a good model for industrial measurement and label & narrow web printing inspection.
Features
1.Lightweight, easy for portability
2. Powered by rechargeable batteries, so can be used anywhere
3. Ultra wide flash range 60-120,000 FPM/Min.
4. Highest accuracy and most stable flash rate
5. Accepts external trigger input and provides synchronizing pulse output
6. Amereica CREE lamp, long lifetime
7. Easy-to-read LED display
8. Phase shift for best view and flash photography
9. Easy-to-operate controls include flash rate adjustment, 2x, divide-2 and phase adjust
10. Instant double and half-rate flash selection for error-free reading
11. Two-Year Warranty
Specifications:
| Flash Range | 60-120,000 FPM/min. |
| Accuracy | ±0.01% |
| Resolution Setting (Vibration) | 60.0-12000FPM 0.1FPM |
| 12000.1-120,000FPM 1 FPM |
| 1-200HZ 0.01HZ |
| 200.1-2000HZ 0.012HZ |
| Power Requirement | AC Power or Lithium Rechargeable Battery |
| Battery Spec. | 2000MA Lithium Rechargeable Battery |
| Recharging Voltage | DC16V |
| Battery Charging Time | About 5 hours |
| Battery Running Time | About 12 hours |
| Power | Less than 30W |
| Lux Rate | Less than 10000 Lux |
| LED Spec. | America CREE 10W LED ( 3 LED) |
| LED Lifetime | 5*1011 times, 3-5 years |
| Trigger Mode | Internal and External Trigger |
| Operating Temperature | 32-104 °F (0-40 °C) |
| Size | 208mm*70mm*60mm |
| Net Weight | 0.38KG |
| Warranty | Two Years |
| Certificate | CE, ROHS |
Strobe as modern industrial field widely used a kind of testing instrument, its precision can achieve high speed movement under the control of online still, so as to help detect personnel to visual inspection, the production line of products is suitable for packaging and printing, textiles, machinery manufacturing, chemical, optical, medical and other industries.
