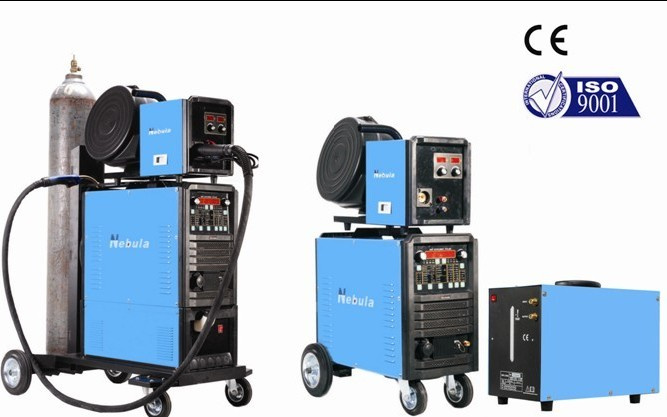

Digital Inverter Double Pulse MIG -315 Welding Machine

Name: Digital Inverter Double Pulse MIG -315 Welding Machine
Brand: china-manufacturer-directory.com
SKU: 685839182
Availability: InStock
Rating: 4.3 (128 reviews)

Supplier:	Beijing Kunzhuo Electric Co., Ltd.
Price:	US $ 3000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	DPS-315F/350F/400F/500F/630F-T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Type:	Air/Water Cooled
Welding Material:	Aluminum, Stainless, Steel, Bronze
Heavy Duty Cycle:	100%
Type:	MIG Welders
Current:	Direct Current

Product Description

Feature/Function 1,Multi-process:MMA,MIG/MAG,Pulse,Double pulse 2,100% Duty cycle 3,Synergic operation--Simply select material and sheet thickness and the stored know-how controls the welding process automatically. 4,Built-in DeviceNet bus 5,Soft-switching 6,Easiest possible selection of preset JOBs(welding task) for the different materials,wire diameters,thickness and gas type. 7,Embedded expert knowledge to control the entire welding process. 8,Wire feeder feedback system. 9,Digital welding process control 10, Connect woth Robot directly Excellent for thin and medium thickness welding for Steel, Stainless Steel and Aluminium. Accessory pictures

Model	315	350	400	500	630
Rated current	10A~315A	10A~350A	10A~400A	10A~500A	10A~630A
Duty cycle	100%				60%
Thickness	0mm~25mm
Wire feed speed	1m/min~22m/min
Arc length	-50%~50%
Arc force	-50~50
Material type	25 kinds
Wire diameter	0.8,1.0,1.2,1.6
Operation mode	2T,4T,S2T,S4T,spot, JOB
Start current(HotI)	0%~200%
End current(EndI)	0%~200%
Start time(Hott)	0.1s~15s
End time(Endt)	0.1s~15s
Burn time(Burn)	0%-20%
Spot time(Sptt)	0.01s~2s
Accessories	Power source Wire feeder Binzel MIG gun with air cooling Argon flowmeter Rollers Wire liner Tips
Warranty	One year guarantee
