Digital LCD Display Thermostat for Central Airconditioning (HS-W301)

Name: Digital LCD Display Thermostat for Central Airconditioning (HS-W301)
Brand: China-Manufacturer-Directory.com
SKU: 728655855
Availability: InStock
Rating: 4.9 (111 reviews)

Supplier:	Qingdao Hessway Machinery & Electric Equipment Co., Ltd.
Price:	US $ 8.22-9.00/Piece
Min Order:	200/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	HS-W301-BYDRSF
Markets:	North America,Eastern Europe,Southeast Asia,Africa,Eastern Asia
Thermostat:	Smart
Task:	Program
Structure:	Combination
Signal:	Continuous
Mathematical Model:	Linear

Product Description

Product Description

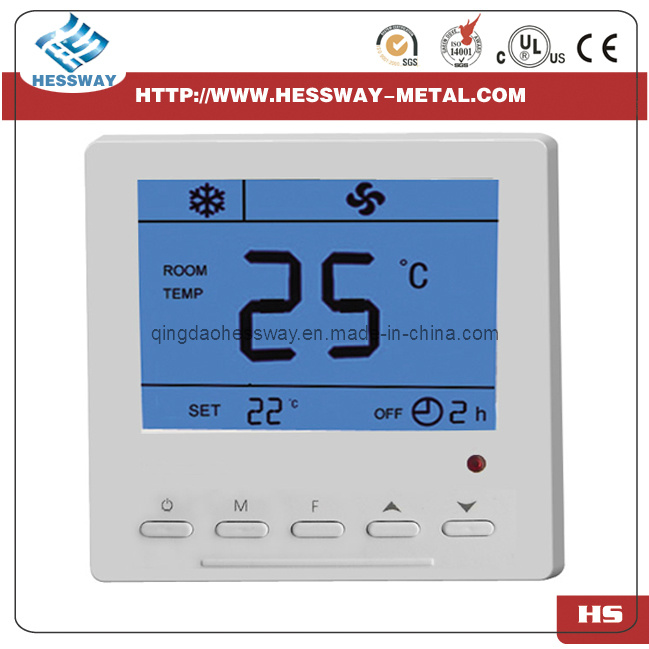

HS-W301 Electric room thermostat is featured by unique design and simple operation. Super-luxurious appearance, LED backlight touch keys as well as LCD display showing the room temperature, setting temperature, fan speed and time. It controls the fan speed or electrical cool and heat valve switch and ideal for places installed two or four pipes central air-condition.

Features
IR remote controllable
Three grades fan speed intelligent controlled with cooling, heating and auto mode
LED backlight control keys, easy identification even in darkness
Energy saving up to 30%

Specification
RS485 interface (Option)
Defrost (low temperature protection)
Auxiliary electrical heating function(Option)
Clock, Sleep and Timer (Option)
IR remote control (Option)
Blue Backlight (Option)
Working Status: Cool, hot, wind

Sensing element	NTC	Power supply	AC 220V±10%, 50/60Hz
Accuracy	± 1ºC	Switch current rating	Resistive: 3A, Inductive: 1A
Temperature range	10ºC ~ 40ºC	Rated Power	<1 W
Display range	0~60ºC	Wirings	Screw-in terminals, each terminal capable of
Display range	0~60ºC	Wirings	accepting2 x 1.5 mm 2 or 1 x 2.5 mm 2 wires
Operation environment	0~45ºC	Housing	ABS + PC Flame Retardant
Operating Humidity	5~90%RH (non-condensing)	Protection Class	IP30
Display	LCD	Dimensions	86 × 86 × 13 mm ( W × H × D )

Qingdao Hessway Machinery & Electric Equipment Co., Ltd. is specialized in a set of open, manufacturing and sales and after-sales services for the whole company. The products have been inspected by the State Administration of Quality Supervision and Inspection Center. Meanwhile the company has passed the state' S compulsory national certification in advance.

The Company adheres to the "people-oriented" business philosophy and takes "pursuing perfection and creating the future with unremitting efforts "as its management policy. We will try our best to provide high quality products and services. Together we will make a great success.
