Product Specifications
| Prod Model: |
HVD-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Screen: |
RS-232c Interface |
| Standard: |
GB/T |
| Application: |
Ceramics and Glass |
| Type: |
Vickers Hardness Tester |
| Measuring Range: |
HV |
| Warranty: |
18 Months |
| Rated Voltage: |
110V/220V |
Product Description
Usage:

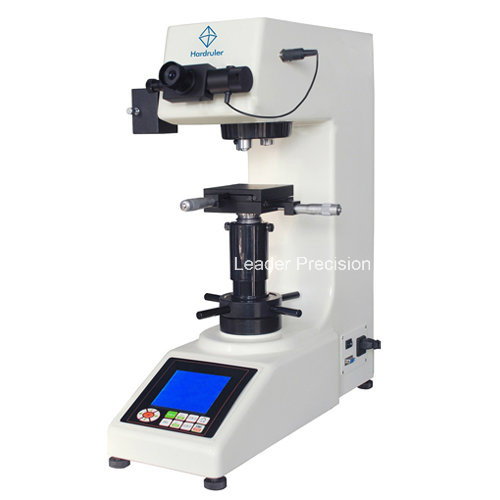

Model HVD-10 series Digital Vickers Hardness Tester is suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, etc.
Typical applications:
1. Cemented carbide, steels, ceramics, non-ferrous metals
2. Thin plates, metallic foils, plating
3. Material strength, effect of heat treatment, depth of carburized or decarburized layer and flame hardened layer, effect of hardening, hardness resulting from welding or deposition
4. Routine testing of precision components
Features:
HVD-10 series Vickers Hardness Tester
1. High Precision, High Accuracy Digital Vickers Hardness Tester
2. Large LCD screen, menu operated, LCD screen displays test method, test force, length of diagonal, hardness value
3. Conversion to other hardness scales
4. Built-in printer and RS-232C data output as standard
5. Video measurement system optional
6. Superior Optical system and Illumination
|
Specifications |
|
Product name |
Digital Vickers Hardness Tester |
|
Model |
HVD-5 |
HVD-10 |
|
Testing load |
Kgf |
0.3, 0.5, 1, 2, 2.5, 3, 5 |
0.3, 0.5, 1, 2, 2.5, 3, 5, 10 |
|
N |
2.94, 4.9, 9.8, 19.6, 24.5, 29.4, 49.0 |
2.94, 4.9,.8, 19.6, 24.5, 29.4, 49.0, 98.0 |
|
Load control |
Automatic (Loading/Dwell/Unloading) |
|
Dwell Time |
Adjustable 0~60s |
|
Objectives |
Observation:10x; Measurement:20x |
|
Digital Eyepiece |
Magnification:10x |
|
Measuring Range |
HV8~HV2900 |
|
Lens& Indenter Switch |
Motorized turret |
|
Max. Height Of Specimen |
170mm |
|
Instrument Throat |
130mm |
|
Auto Hardness Conversion |
HR; HB; HK; etc |
|
Output Data |
RS-232C/Bulit-In mini-Printer |
|
Hardness Indication |
1HV/LCD Display |
|
Illumination |
Halogen lamp light source |
|
Dimension (L*W*H) |
535*225*620mm |
|
Gross/Net Weight |
60Kg/50Kg |
|
Power Supply |
110V/220V, 50HZ |
|
Accuracy |
EN-ISO 6507 , ASTM E92, GB/T4340.2 |
|
Standard delivery |
|
Main Unit |
1pcs |
|
Diamond Vickers Indenter |
1pcs |
|
10x Objective |
1pcs |
|
20x or 40x Objective |
1pcs |
|
10x Digital Eyepiece |
1pcs |
|
XY stage with micrometers |
1pcs |
|
Adjustable foot |
4pcs |
|
Level gauge |
1pcs |
|
Hardness Test Block |
1pcs |
|
Accessories Case |
1pcs |
|
Anti-dust Cover |
1pcs |
|
Installation & user manual |
1pcs |
