Product Specifications
| Prod Model: |
LIB-305 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Light Microscope: |
Travel: 135mm*85mm |
| Eyepiece: |
Wf10X/20 |
| Objective Lens: |
10X, 20X, 40X, Phase-Contrast 20X |
| Fixed Stage: |
Size: 240mm*260mm Travel: 135mm*85mm |
| Interpupillary Distance: |
52mm-75mm |
| Binocular Tube: |
Inclined 45 |
| Diopter Adjustment: |
5 Diopter |
| Illumination: |
6V/30W Halogen Bulb |
| Power Supply: |
110V/220V |
| Standard Delivery: |
10X, 20X, 40X Plan Achromatic Objective Lens |
| Type: |
Biological |
| Number Of Cylinder: |
Binoculars |
| Mobility: |
Desktop |
| Shape: |
Rectangular Prism |
| Principle: |
Optics |
| Magnification: |
100X-1200X |
Product Description

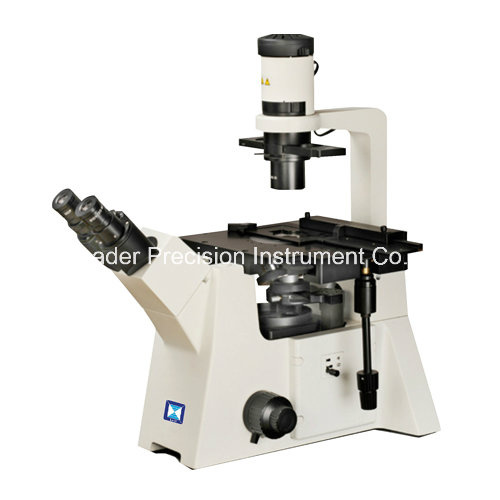

Medical Instrument Inverted Biological Microscope (LIB-305)Warranty: 18 months instead of regular 12 months.UsageThe
Biological Microscope for medical institutes, universities, research institutes for microorganisms, cells, bacteria, tissue culture, observe suspension, sediment, etc., can be continuously observed breeding division in the process of cell culture medium, bacteria and the like.
Biological microscope in cytology, parasitology, extensive oncology, immunology, genetic engineering, industrial microbiology, botany and other applications in the field.
This inverted biological microscope is
trinocular microscope, the microscopy can connect with camera, so you could see the image in computer. which is more convinient for research.
Technical Specification| Eyepiece | WF10X/20 |
| Objective lens | 10x, 20x, 40x, phase-contrast 20x |
| Fixed stage | Size: 240mm*260mm
Travel: 135mm*85mm |
| Interpupillary distance | 52mm-75mm |
| Binocular tube | Inclined 45º |
| Diopter adjustment | ± 5 diopter |
| Illumination | 6V/30W halogen bulb |
| Power sup |
|
Standard DeliveryMain unit: 1pcs
10x, 20x, 40x plan achromatic objective lens: 1pcs each
20x phase-contrast objective lens: 1pcs
6V/30W Osram halogen bulb: 1pcs
Green, blue and yellow filter: 1pcs each
Anti-dust cover: 1pcs
