Product Specifications
| Prod Model: |
MHV-2000S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard: |
GB/T |
| Application: |
Plastic |
| Type: |
Vickers Hardness Tester |
| Measuring Range: |
HV |
Product Description

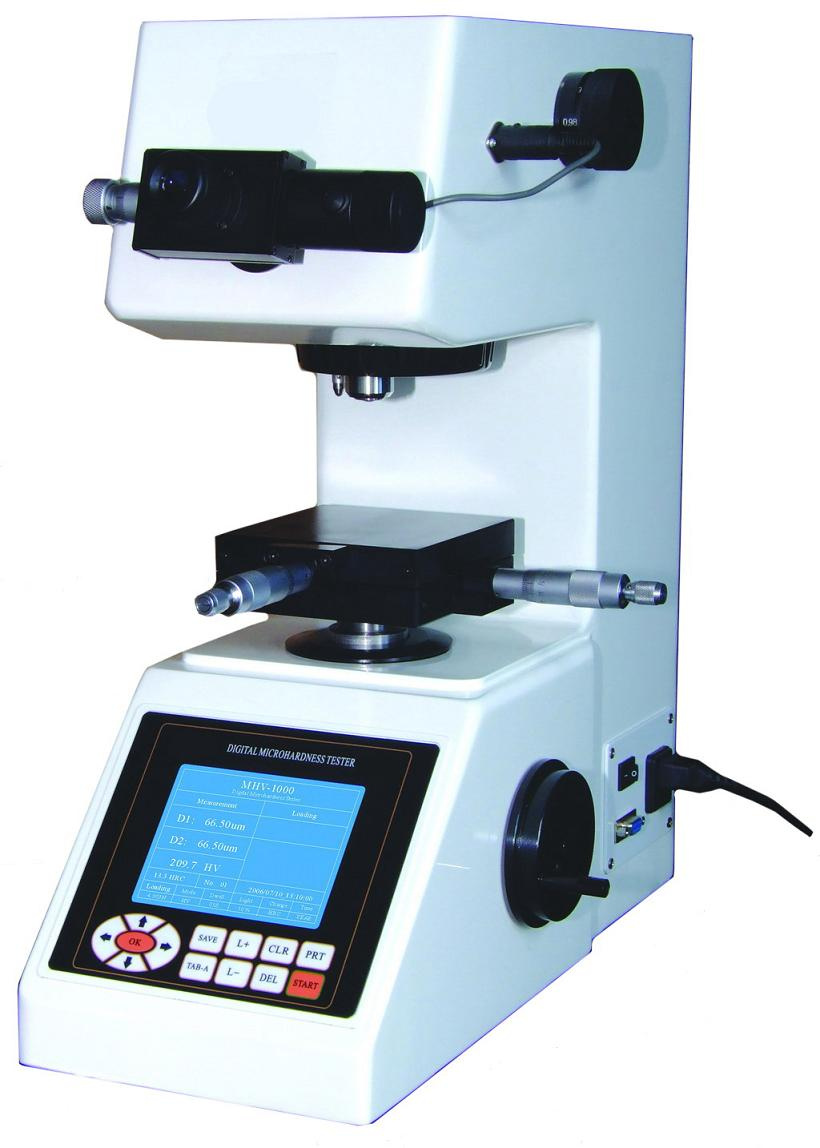

MHV-2000S Digital Micro Hardness TesterA hi-tech product to merge optics, machinery and electricity into an organic whole. New and beautiful in modeling, and has fine reliability, operability and visibility, being the upgrade and update product of micro hardness tester. Adopt computer software programming, high-power optical measuring system, and photoelectric sensor technique, etc, through soft keys input, it is able to regulate and measure the strength of light source, to select Vickers and Knoop test method, to maintain time, file No. And storage, etc., and to provide the conversion table of various hardness number for reference. The hardness tester can be equipped with camera device, it can take photos of tested indentation and material metallographic composition. The hardness tester is applicable to measure micro hardness of micro & thin specimen, etc., and deter mine micro hardness of fragile materials, such as glass, ceramic, agate, etc.
Standard Delivery:
MHV-1000(2000) main unit 1
Weights 6
Cross testing table 1
Platelet fixture 1
Plane-holding fixture 1
Filament fixture 1
Screw drivers 2
Horizontal regulation screws 4
Weight level 1
Power cord 1
10x numerical microscope 1
Vickers hardness blocks 2
Repair fuses (1A) 1
Cave for RS232 Interface 1
Weight shaft 1
Instruction manual 1
TIME certificate 1
Warranty card 1
Optional Accessory:
Knoop indenter
Grinding machine M
osaic machine
LCD device
Cutting machine
|
Specification |
|
|
|
MHV-2000S |
|
|
|
Test Load |
|
|
|
0.098N, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80N |
|
Loading mechanism |
|
|
Automatic |
|
|
|
Magnification of microscope |
|
Measuring: 400 x Observation: 100x |
|
|
Load holding time |
|
|
0-60sec |
|
|
|
Min. measuring resolution |
|
|
0.0625μ m |
|
|
|
Max. height of specimen |
|
|
Appro x 75mm |
|
|
|
Distance from Indenter' s center to outer wall |
95mmμ m |
|
|
|
Weight of tester |
|
|
31kg |
|
|
|
Dimensions of tester |
|
|
L441 x W270 x H480mm |
|
|
|
Power supply |
|
|
|
AC220V/110V ± 10% 50Hz/60Hz |
|
|
