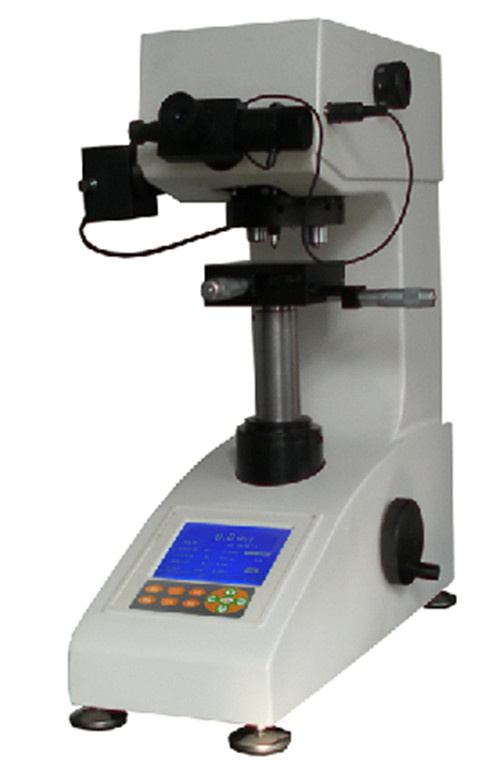

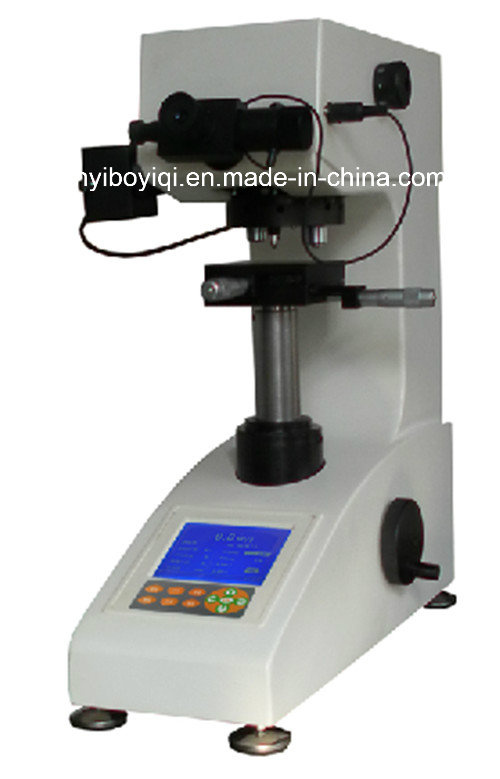

Digital Micro Hardness Tester
| Price: |
US $ 5100.00/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Product Specifications
| Prod Model: |
HVS-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Microhardness Measure: |
Hv0.01,Hv0.025,Hv0.05,Hv0.1,Hv0.2,Hv0.3,Hv0.5,Hv1 |
| Loading Control: |
Automatic (Loading/Maintain/Unloading) |
| Test Force Duration (S): |
5~60 |
| Optical Channel: |
Double Light Channels (Eyepiece and CCD Camera) |
| Measuring Microscope: |
Automatic Digital Encoder |
| Application: |
Plastic |
| Standard: |
ISO |
| Type: |
Vickers and Knoop Test Method |
Product Description
1. Product informationHVS-1000 digital micro hardness tester is optical mechanical and electrical integration of high-tech products, the instrument modelling novel, beautiful, and it has good reliability, operability and intuitive, is an upgraded version of micro hardness tester.2. Main featuresThe machine controlled by computer software, high rate of optical measurement system, photoelectric sensor and other techniques to realize automatic measuring device and the pressure head, switch input by the software, the strength of the light source automatic adjustment, and select Vickers and Knoop test method, keep time, file number and storage, etc., provides a variety of hardness value conversion tables for reference, on the large screen LCD display can show measuring the length of the indentation test method, test force, hardness value and test the force time, measure the number and type in year, month, date, test results and data processing, etc., through the printer output. 3. Application fieldsThe machine USES high-magnification optical measurement system, the eyepiece drum readings at a time. It can determine steel, non-ferrous metals, IC chip, thin plastic, sheet metal, coating, surface coating and laminating metal, heat treatment of carbonized layers and quench hardened layer depth and hardness gradient.4. Technical parameters| Parameter Name | Parameter data |
| Microhardness measure | HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1 |
| Display | Automatic reading, menu display 5 digit hardness values, the diagonal length of 4 digits(D1,D2), Test force, keeping time, test times, average, standard deviation, to return |
| Test force(gf) | 10,25,50,100,200,300,500,1000 |
| Loading control | Automatic (loading/maintain/unloading) |
| Test force duration (s) | 5~60 |
| Select test force | External type selected force knob |
Objective amplification
| 10×,40× |
| Optical channel | Double light channels (eyepiece and CCD camera) |
| Measuring microscope | Automatic digital encoder |
| Total magnification (μm) | 100×(observation), 400×(measurement) |
| Measurement Range (μm) | 200 |
| Resolution ratio (μm) | 0.01 |
| Measurement Range | (5-3000)HV |
| XY testing bench | Dimension (mm):100×100
travel range (mm):25×25
Minimum readout (mm):0.01 |
| Max Height of Specimen (mm) | 85 |
| The maximum specimen width (mm) | 120 (The distance from the center line of the head to machine wall) |
| Data output | The built-in micro printer,(RS232 serial interface) |
| Power voltage | AC220V/50HZ |
| Overall dimensions (mm) | 490×330×515 |
| Weight(kg) | 38 |
5. Company information
