Digital Microscope (DM-BP20)

Name: Digital Microscope (DM-BP20)
Brand: china-manufacturer-directory.com
SKU: 612780522
Availability: InStock
Rating: 4.8 (99 reviews)

Supplier:	Tsingtao Unicom-Optics Instruments Co., Ltd.
Price:	US $ 220.00/Piece
Min Order:	1
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	DM-BP20

Product Description

Digital microscope(DM-BP20)

Digital microscope(DM-BP20) Technical Specifications
Item	DM-BP-20
Vision facilities	1.3M pixel 1/ 2’ ’ COMS
Resolution	1280x1024 Effective pixels
Pixel size	5.2umx5.2um
Transmission rate	16f /s@1280x1024
SNR	62dB
Scanning mode	successive scans
Operating system	Windows2000/XP
Data interface	USB2.0(480Mbit/sec)
Power	USB2.0 power supply
Working temperature	0 ° ~ 50 ° C

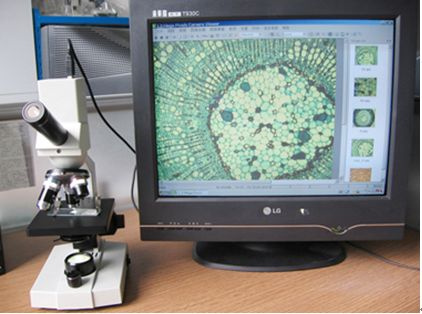

DM-BP20 digital microscope (match 1.3M pixel numeral system). With powerful image analyze software.

DM—BP20 configuration
Component	Specifications	DM-BP20
Viewing head	Monocular head,45 ° inclined,360 ° rotating	A
Eyepiece	WF10X -18mm	A
	WF16X -13mm	B
	WF20X -11mm	B
DIN 45mm Achromatic objective	DIN achromatic objective 4X/NA0.10	A
	DIN achromatic objective 10X/NA0.25	A
	DIN achromatic objective 40XR/NA0.65	A
	DIN achromatic objective 100XR/NA1.25	A
Nosepiece	Triple nosepiece with positive click stopper	A
Nosepiece	Quadruple nosepiece with positive click stopper	B
Stage	Metal stage 110mmX 120mm with paired clips	A
Stage	Built-in mechanical stage 115mmX 125mm with specimen holder	B
Diaphragm	Disc diaphragm with five apertures	B
Diaphragm	Iris diaphragm	A
Condenser	NA0.65 single lens condenser	B
Condenser	NA1.25 Abbe condenser	A
Illuminator	LED lamps, Ni-MH rechargeable battery pack,an AC/DC adaptor. The brightness is adjustable	A
	Incandescent bulb 20W/230V	B
	Halogen bulb 12V/10W	B
option	Movable specimen holder	B
option	Aluminium-alloy Enstrument Case	B
Note :A:item include B:item for option
