Digital Microscope (DM-XTL7045)

Name: Digital Microscope (DM-XTL7045)
Brand: china-manufacturer-directory.com
SKU: 612781332
Availability: InStock
Rating: 4.5 (148 reviews)

Supplier:	Tsingtao Unicom-Optics Instruments Co., Ltd.
Price:	US $ 500.00/Piece
Min Order:	2
Quantity::
Trade Terms:	by Air or by DHL

Product Specifications

Prod Model:	DM-XTL7045

Product Description

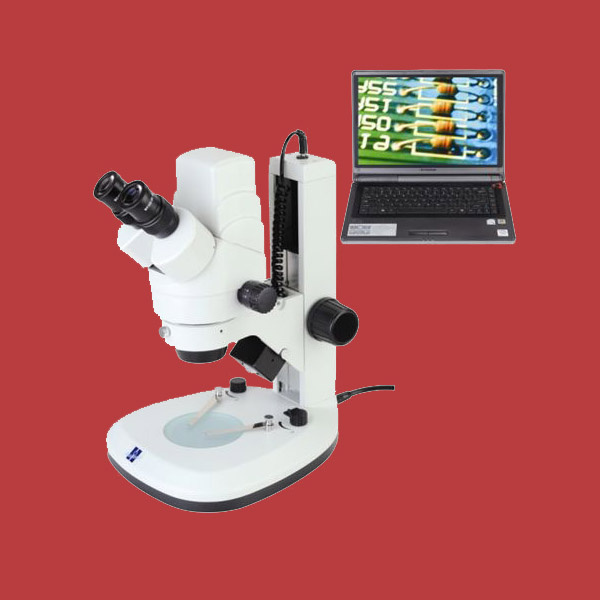

Digital microscope(DM-XTL7045)

Digital microscope(DM-XTL7045) Technical Specifications
vision facilities	1.3M pixel 1/ 2’ ’ COMS	3.0M pixel 1/ 2’ ’ COMS
resolution	1280x1024 Effective pixels	2048x1536Effective pixels
Pixel size	5.2umx5.2um	3.18umx3.18um
Transmission rate	16f /s@1280x1024	7.5f /s@2048x1536
Sensitivity	1.8v/lux-sec@550nm	0.9v/lus-secx
Scanning mode	successive scans	successive scans
operating system	Windows2000/XP	Windows2000/XP
Data interface	USB2.0(480Mbit/sec)	USB2.0(480Mbit/sec)
power	USB2.0 power supply	USB2.0 power supply
Working temperature	0 ° ~ 50 ° C	0 ° ~ 50 ° C

DM-XTL7045 Technical data
Head angle view	45º
Ratio	1:6.3
Eyepiece	WF10X/ 20mm
Objective.	0.7x-4.5x
Mahnification	7x-45x
Interpupillary distance	55 -75mm
Working distance	100mm
J3 vertical Base	Reflected and transmitted LED illumination, adjustable brightness ,drewtube size φ 76mm

DM-XTL7045 optical data
eyepiece	standard		Auxiliary 0.5x		Auxiliary 1.5x		Auxiliary 2x
	Working distance 100mm		Working distance 165mm		Working distance 45mm		Working distance 30mm
	magnification	View field	magnification	View field	magnification	View field	magnification	View field
WF10X/ 20mm	7.0x	28.6mm	3.5x	57.1mm	10.5x	19mm	14X	14.3mm
WF10X/ 20mm	45x	4.4mm	22.5x	8.9mm	67.5x	3mm	90x	2.2mm
WF15X/ 15mm	10.5x	21.1mm	5.25x	42.8mm	15.75x	14.3mm	21x	10.7mm
WF15X/ 15mm	67.5x	3.3mm	33.75x	6.7mm	101.25x	2.2mm	135x	1.7mm
WF20X/ 10mm	14x	14.3mm	7x	28.6mm	21x	9.5mm	28x	7.1mm
WF20X/ 10mm	90x	2.2mm	45x	4.4mm	135x	1.5mm	180x	1.1mm

Tsingtao Unicom-Optics Instruments Co., Ltd. Is one of the largest laboratory instruments manufacturers in China, which conglomerate integrating industry produce, trade, and scientific research. Especially in Optical Analytical Instruments, Chromatographs Apparatus, Electrochemical Instruments, Special Instruments for Biochemical and Clinical Uses, Other Laboratory Analytical Instruments, Microscopes, Measuring Instruments, Astronomical Telescopes and home appliances etc.

Our products cover AAS (Atomic Absorption Spectrophotometers), Double Beam UV/VIS Spectrophotometer, Single Beam UV/VIS Spectrophotometer, Single Beam Visible Spectrophotometer, Polarimeter, Refractometer, Glossmeter, Hazemeter, Tintometer; IC (Ion Chromatograph), HPLC (High Performance Liquid Chromatograph), GC (Gas Chromatograph); PH meter, Conductometer, Potential Titrator; Automatic Blood Cell Analyzer, Blood Coagulation Instrument, Urine Analyzer, Elisa Analyzer, Elisa Board Wash; Stereo Microscope, Biological Microscope; Analytical Balance, Melting-point Apparatus, COD; Auto Level; Refractor Astronomical telescope, Reflector Astronomical telescope.

Unicom-Optics is certified by ISO9001: 2000, and our products are with CE certificated. Ninety Five percent of Unicom-Optics products are exported to USA, Japan, Latin America, Europe, South East Asia, India, Middle East and other countries and regions in the world.

Unicom-Optics provides their customers best technical and sails services with an ideal "To cooperate with every customer, and make them all with satisfaction".
