Product Specifications
| Prod Model: |
RL-HM028 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Rpm: |
30000 Rpms |
| Max Hours: |
99999 Hours |
| Clock Function: |
24 Hours |
| Applicable Ignition Types: |
1r1r,2p1r,3p1r,4p1r,6p1r,8p1r,3p2r,5p2r,1p2r. |
| OEM&ODM Service: |
Available |
| Type: |
Motorcycle Meters |
| Certification: |
RoHS |
Product Description

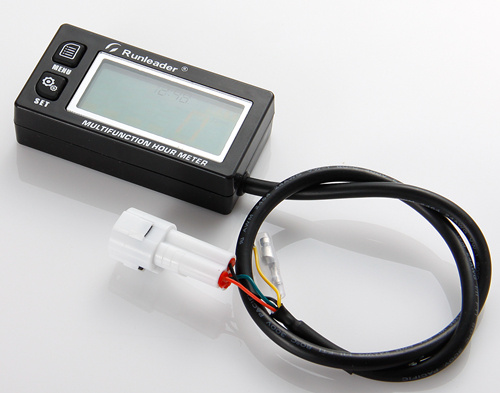

Waterproof Multifunctional Hour Meter(with Max Timing, RPM Display, Voltagemeter&Clock) for Motocross, ATV, UTV, Dirt Bike
Applications
Widely used on gasoline engine generator, motorcycle, All-Terrain Vehicle, UTV, Side-by-sides, snowmobile, motorized glider, Jet Ski, lawn mower, engineering vehicle, chain saw etc.
1. Hour meter
Maintain alert ON/OFF selection
Maintain alert can set from 1 to 250H
2. Tachometer
Overspeed ON/OFF selection
RPM range from 120 to 30600
Overspeed setting: 120 to 30600
7 kinds of ignition way selectable
Record Max RPM
3. Voltage Meter
Voltage meter ON/OFF selection
Voltage range from 5V to 30V
Overvoltage alert setting: 5V to 30V
4. Clock
24-hour
Display 00: 00
6. Other function and advantage
Power saving mode(LCD shut down automatically if no setting when no power connected)
LCD backlight
Waterproof in surface
Remember data after disconnect the power
CR2450 repalceable battery
|
Model Number |
RL-HM028 |
|
Applicable engine type |
gasoline engine |
|
Accumulated Run Time |
hours |
|
Max display(HOURS/RPM) |
99999/30000 |
|
original |
China factory |
|
Operating Temperature |
Standard -30°C to +85°C |
|
Battery Life |
2.5 years,changeable |
|
Individual packing |
white box |
|
Gross Weight |
180g |
|
certification |
CE&ROHS |
