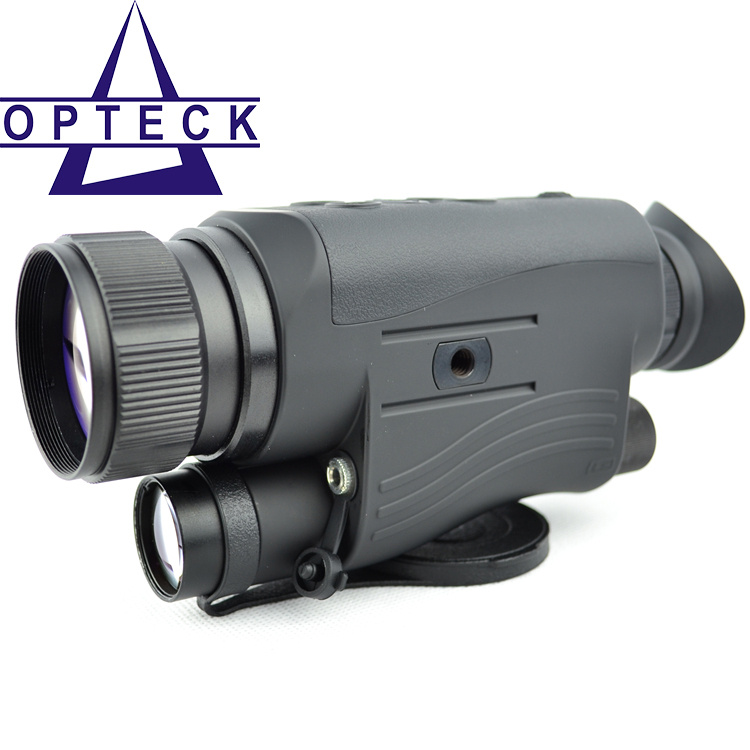

Digital Night Vision with Recording Function- Dmsd
Product Specifications
| Prod Model: |
DMSD01-5X-20X42/50mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Kind: |
Digital |
Product Description
DMSD01-5-20X-42 The DMSD01-5-20X-42 high resolution digital night vision monocular can be used both during the day and night. During day time, the image on the screen is colorful. During night time, the image on the screen is green. It is suitable for both long and short distance observation. Main advantages: 1. High quality. 2. Clear high resolution 0.24" display. 3. 0.005LUX low-light, 1.3 million high resolution sensor, 720P recording, and 32GB memory card. 4. Magnification range is 5~20X for clearer viewing. 5. Metal objective (4 pieces of lens) and generation 2+
eyepiece, infraredlight is imported from America. 6. DC voltage input and AV video output, attached to a tripod mount, it is suitable for extensive observation. 7. Ergonomic elastomeric paint sprayed body, with PVC skin. 8. Compact body for easy-carrying. Suitable for camping, surveillance, night observation, search & rescue, leisure hunting, and patrol.| Model | DMSD01-5-20X-42 | DMSD01-6-24X-50 |
| Magnification (X) | 5-20 X | 6-24 X |
| Objective diameter (mm) | 44 mm | 50 mm |
| Field of view( ° ) | 5° | 4° |
| Display specifications | 0.24" (320x240) | 0.24" (320x240) |
| Eyepiece Diopter, D | ±4 | ±4 |
| Waterproof level | IPX4 | IPX4 |
| Visual range, 1/4moon,IR | 0.8 ~ 280m | 0.8 ~ 380m |
| Visual range, full moon | 0.8 ~ 450m | 0.8 ~ 550m |
| Infrared (IR) light | 805nm / 40mW(America) | 805nm / 40mW(America) |
| IR effective range (m) | 150m | 150m |
| Video pixels, (10,000) | 720P(1280x720) | 720P(1280x720) |
| Sensitivity | 0.005LUX | 0.005LUX |
| TF card maximum memory | 32GB | 32GB |
| Battery type (V) | CR123A, 3V, 2pcs | CR123A, 3V, 2pcs |
| Work hour (IR off, 20°C) | 7.5 h | 7.5 h |
| Work temperature range | -10 ~ + 50 °C | -10 ~ + 50 °C |
| DC input | 5V2A | 5V2A |
| Tripod interface | 1/4 '' | 1/4 '' |
| Video output format | APL/NTSC | APL/NTSC |
| Dimensions (L*W*H)(mm) | 170*84*54 | 195*84*60 |
| Weight (g) | 489g | 524g |
| Product accessories | Color box, soft bag, shoulder belt, dryer, lens cloth, manual, PE bag |
Reminder Night vision is a precise photoelectric conversion product. Strong light stimulation will cause irreversible damage to the product, seriously affecting its performance and service life. Repeated strong light stimulation will burn out the picture tube! Remember: don't operate the product in strong light environment, don't turn on night vision unless you are in the dark environment.
If you want to test night vision in a situation with light, please cover the objective lid firstly, then turn on the product. The hole on the lid will allow minimal light to enter.
Choose high quality battery for night vision. Generally we choose lithium battery. Rechargeable battery may reduce the product life, so we don't recommend it. When not in use for a long period, take the battery out from the product, to avoid corrosion.
Caution
1. Night vision should be placed in the corresponding bag with temperature between -20 ºC and +40 ºC; relative humidity below 80%.
2. Only use night vision at night.
3. When checking the product during day time, don't open the lens cover.
4. Avoid water and shock.
5. Don't clean the lens too many times. Please use the lens cloth or lens paper if you need to clean the lens. Don't scratch the lens.
6. Please put the product in a dry and ventilated location to protect the lens from moisture and mildew.
Warranty Responsibility
This night vision is a precise optical product, please operate it according to the manual. We only take the warranty responsibility for customers' correct operation. Tube replacement and man-made damage are not within the scope of the guarantee.
Opteck Manufacturing Group Ltd. Is a major manufacturer of optical products. Spanning over 20 years in the optical industry, we excel in supplying high quality optical products and components with competitive prices to brands worldwide.
Among the many products supplied by Opteck, we engage primarily in the making of:
> Laser rangefinders
> Night visions
> Monoculars and binoculars
> Optical lenses and prisms
> Aluminum, copper, and steel precision metal components
Opteck also has extensive experience designing and manufacturing:
> Injection moldings and plastic precision components in PVC, rubber, ABS, GF, and PPS.
> Software and hardware electronic assemblies
All Products are customizable with OEM brands.
