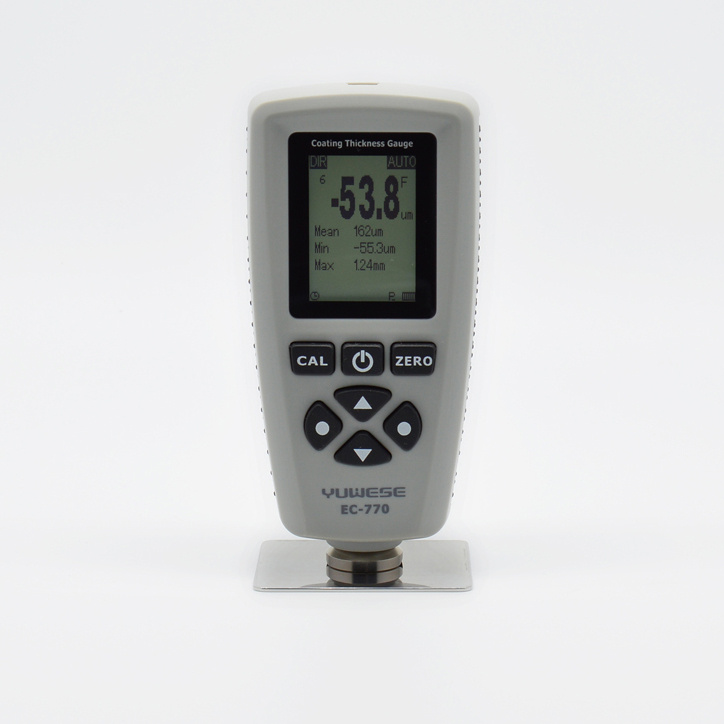

Digital Paint Coating Thickness Meter 1300um
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensor Probe Type: |
Fe / Nfe Probes |
| Measurement Range: |
0 to 1300um (0 to 51.2mils) |
| Measuring Mode: |
Single and Continuous |
| Calibration: |
Zero and Multi-Point Calibration |
| Language: |
English |
| LCD Display: |
128*128 DOT Matrix |
| Reading Memory: |
320 Readings for 4 Groups |
Product Description
FEATURES

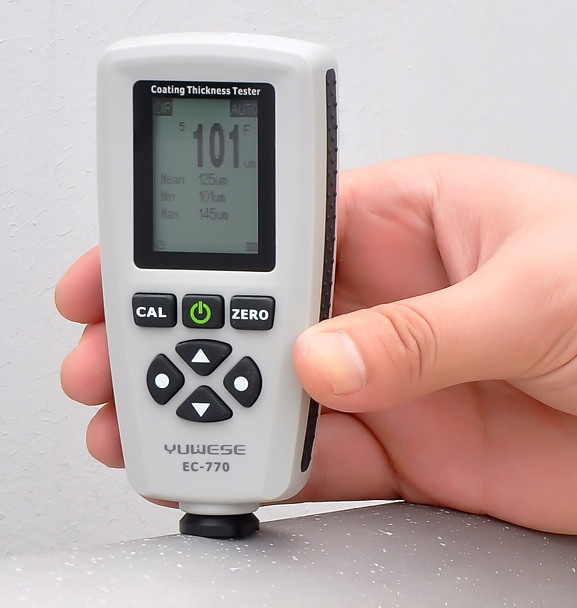

Object of Measuring: This compact gauge can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals.
2 in 1 Probe: The internal probe can work on both principles, magnetic induction and the eddy currents. The probe can automatically detect the substrates type (Magnetic or not), and calculate the coating thickness and display it fast.
Display: 128*128 dot matrix LCD display, standard menu operations;
Measure Mode: single and continuous available;
Two group mode: direct (DIR) and general(GEN), readings will be lost when power off in DIR mode, and not be lost in GEN mode. 80 readings can be stored for each group;
Calibration: Zero point calibration and multi-point calibration(up to 4 points) for each group;
Data Management: User can recall, delete specified readings, or delete group readings;
Statistics display: Simultaneously display Measuring Value, mean, minimum, maximum and standard deviation;
Three probe mode: auto, magnetic and eddy current;
Alarm: User can set high or low limit alarm for each group;
Power Save: Power off automatically;

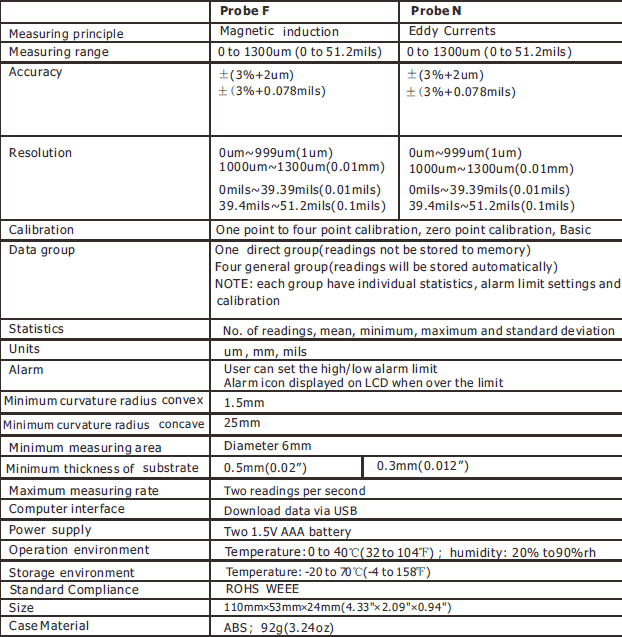

PC Connectable: USB interface to data transmission;Download readings via PC with EasyCoating Software. SPECIFICATIONS
1. Measuring principle: Magnetic induction (F-probe) and eddy current (N-probe);
2. Measuring range: 0 to 1300um (0 to 51.2mils);
3. Accuracy: ± (3% of readings+2um);
± (3% of readings+0.078mils);
4. Resolution: 0um~999um (1um), 1000um~1300um (0.01mm);
0mils~39.39mils (0.01mils), 39.4mils~51.2mils (0.1mils);
5. Calibration: One to four point calibration, zero calibration;
6. Data Group: One direct group (readings not be stored to memory), four general group (readings can be stored), and each group have individual statistics, alarm settings and calibration;
7. Statistics: No. of readings, mean, minimum, maximum and standard deviation;
8. Units: um, mm and mils;
9. Alarm: User can set the high/low alarm, and alarm icon displayed on LCD when over the limit;
10. Minimum curvature radius: convex 1.5mm(59mils) and concave 25mm(984mils);
11. Minimum measuring size: Diameter 6mm(236mils);
12. Minimum thickness of substrate: F-probe: 0.5mm(0.02"), N-probe: 0.3mm(0.012");
13.Computer interface: Download data via USB interface;
14. Power supply: Two 1.5v AAA battery;
15. Operation temperature: 0ºC to 40ºC(32ºF to 104ºF);
16. Storage temperature: -20ºC to 70ºC(-4ºF to 158ºF);
17. Size: 110mm*53mm*24mm (4.33"*2.09"*0.94");
18. Weight: 92g (3.24oz);
YUWEN is a product designer and manufacturer located Shenzhen City of China. YUWEN will focus on bringing the top level and the most practical sensor and measurment technology to people. Also, We can provide ODM/OEM services for the customers who need some professional demands.
We bring various sensor technology into products, user will use these products without any complex concept. Our key advantage is high quality and meticulous pre-sale&after-sale service. If you intend to find an excellent product, we must be your best selections, and we will bring you more surprises.
