Basic Info.
Model NO.:L209
Kind:Obstacle Detection Radar
Test Distance:2.5-0.3m
Working Principle:Frequency Modulated Continuous Wave
Operating Temperature Range:-20°C~+80°C
Certification:CE
Parking Sensor Style:Rear
No of Sensor:4/6/8 Optional
Detecting Distance:0-2.5m
Power:12V
Rate Current:20-200mA
Colors for Sensors:Various for Selection
Export Markets:Global
Additional Info.
Packing:20PCS/Carton Carton Size: 46*28*39cm 14kg/Carton
Standard:LED display, bibi alarm
Origin:China, Shenzhen
HS Code:851230190
Production Capacity:25000PCS/Month
Product Description
1. LED digital display with BiBi sound reminder
2. Left/right obstacle monitor in 7 stages
3. Display in 2 colors red, yellow
4. Display size:130*20*15mm
Features:
*100% brand new and high quality
*Help prevent accidentally damaging your vehicle (and other vehicles) while reversing
*Make it possible to detect those hidden objects and accurately judge distances behind your vehicle
*Detect small children and low walls
*Double CPU
*4 Sensor system for enhanced coverage and detection
*Self-test function
*Voice indictor and three color LED display
*Distance display on LED Monitor
Specifications:
*Detecting distance: 0-2.5m
*Power source: DC 12V(Not included)
*Rated current: 20-200mA
*Working temperature: -30 ~70 degree
*Sensor cable length: 2.5M (Approx)
*Power cable length: 77CM (Approx)
*LED monitor cable length: 5M(Approx)

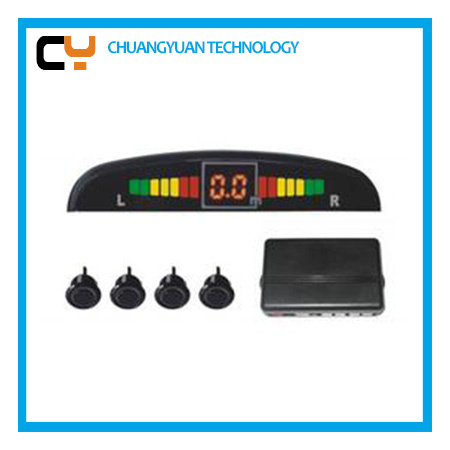

Package includes:
1* LED display monitor with cable
1* Main control box
4* Parking sensor with cable
1* Power cable
1* 22mm drill
2* Double side sticker
1* English user manual
Package information:
Packing size: 21.3*17.8*5cm
Packing: 20/ CTN
Carton size: 46*28*39cm
NW: 0.5KG GW:0.6KG
Technical Specification:
Warranty | 1.5 years |
Sound Switch (On/off) | Available |
Sensor Quantity | 2,3,4,6,8 sensors are available |
Buzzer Type | BiBiBi or Woman voice |
Display | LED |
Operating Voltage Rating | DC 12V |
Max Power | 5W |
Operating Temperature | -40°C~80°C |
Display Distance | 0.3m~2.5m |
Alarm Distance | 0.3m~1.5m |
Alarm Voice | >80dB at 10 cm |
Ultrasonic Frequency | 40KHz |
