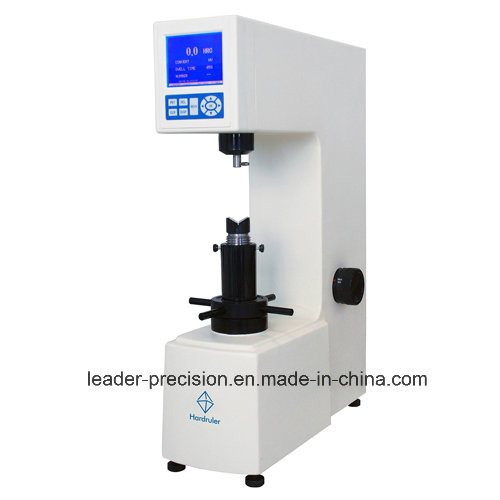

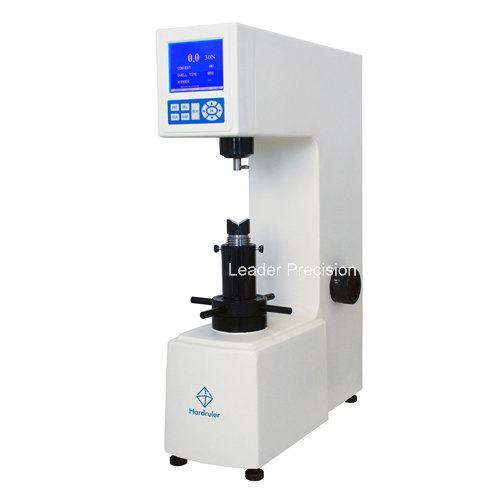

Digital Rockwell Hardness Tester (HR-45D)
Product Specifications
Prod Model: |
HR-45D |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Digital Rockwell Hardness Tester |
Model: |
(Hr-45D) |
Rockwell Scales: |
Hrn, Hrt |
Preload: |
3kgf(29.42n) |
Test Loads: |
15kgf(147.1n),30kgf(294.2n),45kgf(441.3n) |
Dwell Time: |
1-60s |
Hardness Indication: |
Digital LCD Display |
Resolution: |
0.1hrn |
Loading Control: |
Automatic |
Data Output: |
RS-232c and Built-in Printer |
Type: |
Rockwell Hardness Tester |
Application: |
Metal |
Standard: |
GB/T |
Measuring Range: |
Hr15n, Hr30n, Hr-45n, Hr15t, Hr30t, Hr45t |
Warranty: |
18 Months |
Rated Voltage: |
110V/220V |
Product Description
Usage:Model HR-45D digital superficial Rockwell hardness tester is suitable to determine the superficial Rockwell hardness of the ferrous and non-ferrous metals.
Features:1. Digital LCD reading of superficial Rockwell scales
2. Conversion to other hardness scales, such as Vickers and Brinell
3. Menu operated LCD screen with many functions such as Conversion, Load cycle indication
4. Integrated printer for test result and statistics, also can connect to PC communication through RS-232C cable
5. Accuracy, Reliability and durability at cheap price
Specifications |
Product name | Digital Superficial Rockwell Hardness Tester |
Model | HR-45D |
Rockwell Scales | HRN, HRT |
Measuring Range | 70-94HR15N, 42-86HR30N, 20-77HR45N, 67-93 HR15T, 29-82HR30T, 10-72HR45T |
Preload | 3kgf(29.42N) |
Test loads | 15Kgf(147.1N),30Kgf(294.2N),45Kgf(441.3N) |
Dwell time | 1-60S |
Hardness indication | Digital LCD Display |
Resolution | 0.1HRN |
Loading Control | Automatic |
Data output | RS-232C and Built-in Printer |
Max. Height Of Specimen | 175mm |
Instrument Throat | 165mm |
Dimension (L*W*H) | 520*215*700mm |
Packing Dimension | 630*440*960 |
Gross/Net Weight | 120Kg/90Kg |
Power supply | 110V/220V, 50HZ |
Accuracy | EN-ISO 6508 , ASTM E-18, GB/T230.2 |
Standard delivery |
Main Unit | 1pcs |
Thermal Printer | 1pcs |
Data-output RS-232C | 1pcs |
Cone Diamond Indenter | 1pcs |
Ø 1.5875 Ball Indenter | 1pcs |
Ø1.5875mm Steel Ball | 1pcs |
Large Flat Anvil | 1pcs |
Small Flat Anvil | 1pcs |
V-notch Anvil | 1pcs |
Hardness Test Block HR15N | 1pcs |
Hardness Test Block HR30N | 1pcs |
Hardness Test Block HR30T | 1pcs |
Adjustable feet | 4pcs |
Accessories Case | 1pcs |
Anti-dust Cover | 1pcs |
Installation & user manual | 1pcs |
Dongguan Leader Precision Instrument Co., Ltd. is a hi-tech enterprise specializing in R&D, production and sales of optics, machinery and electronic precision measuring and testing instruments, our range includes: Video measuring system, profile projector, coordinate measuring machine, measuring microscope, linear scale and digital readout, video measuring machine, optical comparator, VMM, VMS, vision measuring machine, non-contact 2D video measuring system, Hardness tester, and also stereo microscope, biological microscope, LCD inspection microscope, metallographic microscope etc which are widely used in metrological, measuring, inspecting, testing and reverse engineering fields.
Our continuous excellent products supply sustainable value for our large client word-wide. With powerful strength and good reputation, our products have been exported to more than 30 countries. We are committed to raise the standards of our products and improve the services. We are dedicated to ensure superior products, timely delivery, competitive price and excellent after-sale service
We have a proficient and strong workforce, comprising of technically skilled professionals, who have rich experience in dimension measurement and data analysis in machinery, mould, electronic, aviation, automobile, plastic, gear, PCB circuit board, spring, connector, semiconductor, precision parts and so on.
We guarantee quality and high performance of our products and offer excellent services. Our continuous effort towards producing superior quality products and perfection has helped us to win the trust, confidence and assurance of the customers from all over the globe. Our products have received a great response and recognition in the customers. You can depend on our products for superiority, reliability and durability.
