Digital Schmidt Hammer with 0.225kgm (2.207Nm) Impact Energy
Product Specifications
| Prod Model: |
HT-225D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Testing Building and Bridge Construction |
| Impact Energy: |
0.225kgm (2.207nm) |
| Measuring Range: |
10-70n/Mm2 |
| Storage: |
Data for 4000 Concrete Structures |
| Dimension (Mm): |
280X75X60 |
| Net Weight: |
1.1kg |
Product Description

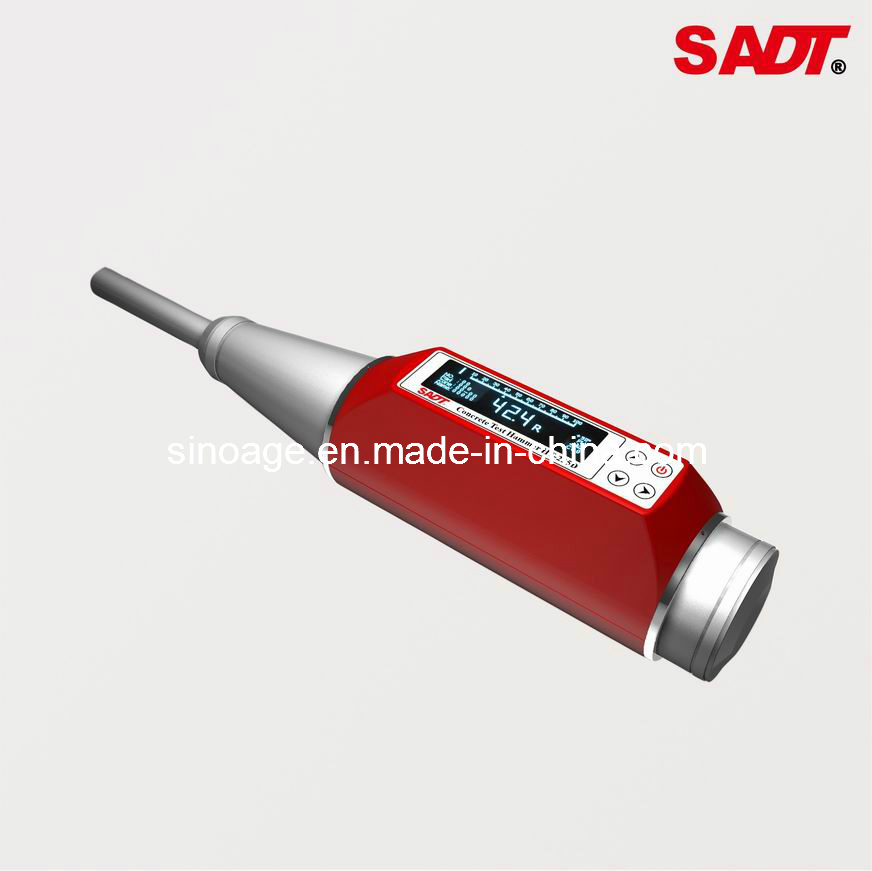

Digital Concrete Test Hammer HT-225D Details:
HT-225D is an integrated digital concrete test hammer which combines data processor and test hammer
Into one unit. It is widely used for non-destructive testing quality of concrete and building materials in finished structure or prefabricated blocks.
From its rebound value, the compressive strength of concrete can be calculated out automatically. All testing data can be stored in memory and transferred to PC by USB cable or wireless by Blue tooth.
KEY FEATURES:
High contrast OLED display
All setup can be made on site
Automatic calculating compressive strength
Automatic correction of impact direction
All data will be stored in memory
All data can be transferred to PC by USB cable or bluetooth(optional)
Dual display for analogue ruler and digital value
|
Model |
HT-225D |
HT-75D |
HT-20D |
|
Display |
OLED digital |
|
Measuring range |
10-70N/mm2 |
1-25N/mm2 |
|
Accuracy |
±0.1R |
|
Impact energy |
0.225kgm (2.207Nm)
for testing ordinary
building and bridge
construction |
0.075kgm (0.735Nm)
for testing small and
impact-sensitive
parts of concrete or
artificial brick |
0.020kgm (0.196Nm)
for testing mortar or
clay of products |
|
Communication |
USB2.0 or Bluetooth(optional) |
|
Storage |
data for 4000 concrete structures |
|
Operating temperature |
-40º-60ºC |
|
Power supply |
3.7V Li-ion rechargeable battery charged via USB port |
|
Dimension (mm) |
280x75x60 |
|
Net weight |
1.1kg |
Sino Age Development Technology, Ltd. (SADT), is a leading manufacturer / supplier of measuring and testing instrument, specialized in NDT and quality control fields. We have our own HARTIP series portable hardness testers from the very begining. Now our main products cover portable and bench type hardness tester, ultrasonic thickness gauge, roughness tester, handheld metallurgical microscope, portable vibration meter, optical tachometer, ultrasonic flaw detector and so on. Our main overseas markets are: USA, Canada, Germany, France, Netherlands, Finland, Italy, Czech Republic, Poland, Lithuania, Estonia, Serbia, Greece, Turkey, Australia, New Zealand, Korea, Taiwan, Singapore, Thailand, Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt, South Africa, Mexico and Columbia, Peru and etc. All products supplied by SADT have excellent quality and competitive price with our best service.
