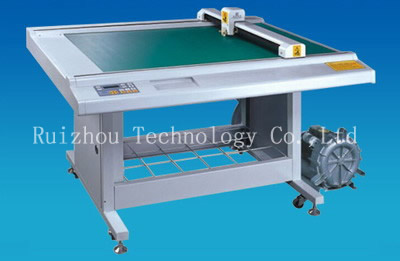

Ruizhou flatbed cutting machine is specially developed cutting solution for footwear and garment industry. Based on vacuum-suction system, it is able to create accurate footwear and garment patterns on standard pattern paper, cardboard, or PVC sheet.
WHAT ARE THE BENEFITS?
1. Easy to use
* Ruizhou tables are easy to install and simple to set-up and use. The table is programmed for use with Ruizhou RECAD software, which apart from the manual adjustment for the depth of the knife, will reduce the need for hands-on setup of the table.
2. Saves time and money whilst improving quality
* Eliminates the cost and time you spend cutting paper patterns and making brass bound pattern boards.
* Greatly reduces the time taken to hand cut sample and graded paper patterns.
* Consistent accuracy throughout, utilizing the Ruizhou RECAD software, any modifications to the pattern can be re-cut quickly and efficiently.
* Reduces your lead times for samples, short production runs and overall pattern development time for both sampling and production, helping you to provide that 'quick response' your customer demands.
3. Flexible
* When used with Ruizhou RECAD software, Ruizhou tables are designed to work in the background cutting and/or plotting pattern pieces whist you continue to develop other 2D patterns.
WHAT ARE THE FEATURES?
1. Tool Head
* A dual function tool head incorporating a trailing knife and pen, which is especially suited for cutting pattern paper and up to 2mm cardboard.
2. Compatibility
* Connectible to common CAD software, widely used for design and manufacture of footwear, apparel, suitcases, bags, lamps and automobile leatherwares.
TECHNOLOGICAL SPECIFICATION
|
| Available Model | RZCAM-0906A | RZCAM-1209A | RZCAM-1509A | RZCAM-1512A | RZCAM-1812A |
| Working Area | 910*620mm | 1200*920mm | 1500*920mm | 1500*1200mm | 1800*1200mm |
| Cutting Materials | Paper, Cardboard, Plastic board, Rubber board, Fiber sheet (up to 2mm) |
| Working Performance | Cutting Speed: 900mm/s (Max.) |
| Cutting Thickness: 2mm |
| Mechanical Resolution: 0.07mm |
| Blade and Pen Type | Blade: wolfram steel; |
| Pens: water-based fibertip, oil-based ballpoint, disposable ink pen. |
| Mat. hold-down method | Vacuum Suction |
| Software Resolution | 0.025mm 0.01mm 0.1mm optional |
| Interface | Standard parallel port or serial port |
| Command System | HP-GL and GP-GL compatible mode |
| Power Consumption | Machine: 200W AC 220±10%,50HZ |
| Vacuum Pump: 1100W AC 220±10%,50HZ |
| Feeding Mode | manual feeding |
Ruizhou Technology Co., Ltd., specializes in the development and application of digital cutting plotter and related CAD/CAM software for such industries as footwear, garments, suitcases & bags, lamps and autos. Located in Foshan City, China, our company is a high-tech enterprise which integrates the development, manufacture and marketing & sales of flat computerized cutting plotter and related mechanical-electrical products.
Guided by the corporate motto "we strive for what you demand", Ruizhou teams have, for the past decades, continuously made progress both technically and intellectually. And the corporate spirit "The Client Comes First and Striving Constantly For The Better" has been fully expressed in the development of digital cutting plotter and RZCAM/CAM software. We meticulously select every component for our products and attach great importance both in functions and appearance of our products. In addition to the acquisition of several patents as Chinese practical new-tech products and designs, Ruizhou, being accredited by ISO9001: 2000, is also granted the title of "Private High-Tech Enterprise" by the Department of Science and Technology of Guangdong Province.
With reliable technological supports, reasonable prices, excellent and prompt service, and efficient management as cornerstones for progress, Ruizhou serves clients with great sincerity, making its way into world market with quality services, establishing brand with credibility and striving for the best so as to win the trust and recognition of clients. Our current markets include South Korea, Indonesia, Mexico, Malaysia, Vietnam, as well as Hong Kong and Taiwan region, our products have been well received by numerous enterprises and designing institutes from across the world.
Ruizhou is waiting for you in the new IT era!
