Product Specifications
| Prod Model: |
VR-F70 |
| Markets: |
North America,South America,Eastern Europe,Oceania,Western Europe |
| Style: |
Handheld |
| Talk Range: |
15-20km |
| Usage: |
Commercial |
| Battery Type: |
Lithium Battery |
Product Description

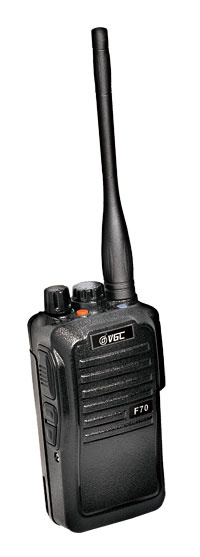

Professional FM Transceiver Two Way RadioVR-F70 Main Feature:
. Output power VHF 5W/1W UHF 4W/1W
. Digital Signal Processing
. 128 Channels / 8 Zone
. Wide Band-width
. 1750Hz/ 2100Hz/ 1000Hz / 1450Hz Burst Tones
. Clear Voice
. Emergency Alam
. Scrambler
. PTT ID, DTMF
. Voice (VOX) Function
. Priority Scan
. ANI (Caller ID)
. Multi scan mode (TO/CO/SE)
. All calls, group calls and selective calls
. Calling ring and ring overtime auto answer
. Multi silent mode (QT/QTADT/QTXDT)
. Channel steps (5K/6.25K/10K/12.5K/25K)
. Wide/Narrow bandwidth selection (25kHz/12.5kHz)
|
Frequency Range |
VHF: 136-174MHz UHF: 350-390/400-470/450-520MHZ |
|
Channel Capacity |
128 |
|
Channel Spacing |
25/12.5KHz |
|
Maximum Deviation |
± 5KHz to 25KHz ± 2.5KHz to 12.5KHz |
|
Frequency Stability |
± 2.0ppm |
|
Operating Voltage |
7.4V |
|
Operating Temperature |
-30+60 |
|
Battery |
1500/1700mAh(Li-ion) |
|
Standby Current |
50mA |
|
Antenna Impedance |
50Ω |
|
Dimension(without antennabattery(L× W× H) |
102× 57× 32(mm) |
|
Weight(with antennabattery) |
265g |
|
Transmitter |
|
RF Power Output |
VHF: 5W/1W UHF: 4W/1W |
|
Modulation |
16KF3E/11KF3E |
|
Spurious and Harmonious |
-36dBm1GHz -30dBm1GHz |
|
FM Noise |
40dB |
|
Adjacent Channel Power |
70dB/60dB |
|
Audio Distortion |
≤ 5 |
|
Receiver |
|
Sensitivity(12dB SINAD) |
0.25μ V |
|
Selectivity |
60dB |
|
Intermodulation |
60dB |
|
Spurious Response Rejection |
65dB/70dB |
|
Audio Power Output |
500mW |
|
Audio Distortion |
≤ 3(0.5W) |
Vero Global Communication Co., Ltd. is located in the famous cultural city - Quanzhou, a seashore city near Xiamen port, which offered us convenient transportation.
Established in 1995, we have vast experience in OEM and ODM services. We design and manufacture telecom products, encompassing a full range of products such as cordless phones, walkie-talkies and antennas. Our operations are centered in China, integrated of R&D, production, QC and shipping. This ensures fully controlled production lines and fast delivery. We target buyers of consumer electronics in Middle East, Southeast Asian, Africa to Central-South America and East Europe. We are renowned for offering products with high quality standards and competitive pricing.
We have a showroom displaying all of our most popular products, thus making ordering easier for our buyers. Also, in order to be able to best fulfill all requirements. Our pursuit of first-rate quality, low prices and comprehensive after-sales services offer both potential and long-standing clients confidence in our company. A full warranty is offered.
If you are interested in any of our series, please contact us for more detailed information. We are looking forward to forming business relations with customers at home and abroad.
