Product Specifications
| Prod Model: |
SL-D900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Photography: |
Digital and Live Video |
| Magnifications: |
5 Steps |
| Slit Lamp Type: |
Haag Streit Type |
| Professional Software: |
for Imaging Processing and Database Management |
Product Description

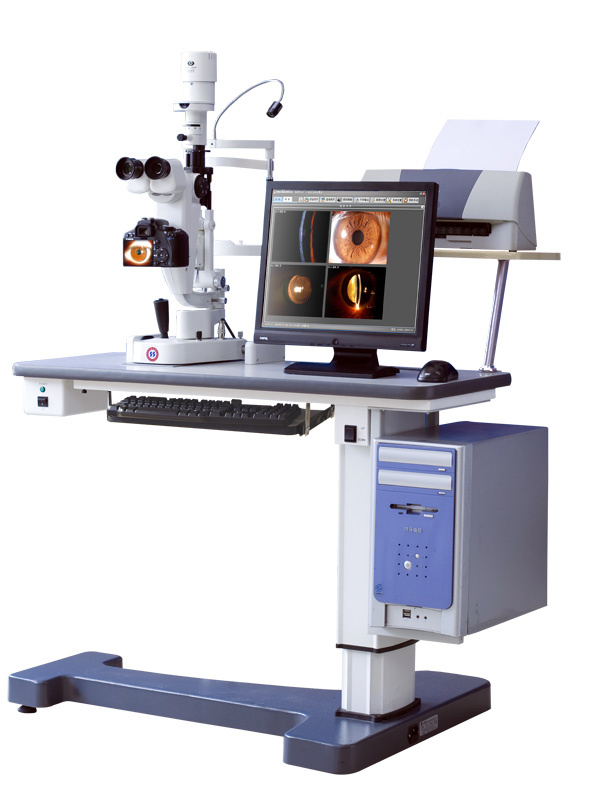

Digital Slit Lamp Microscope with powerful software
5 steps with small instrument table
Model: SL-D900
The product can easily capture sharp digital photos of the cornea, sclera, anterior chamber, iris,
Lens, retina
Characteristics:
· Digital Single Lens Reflex Camera with 18 megapixels
· Real time dynamic display, viewfinder from camera LCD or Monitor screen
· Special designed background illumination
· Photo easily taken by the button on the joystick, or wireless footswitch
· Professional software
· Galilean stereoscopic microscope provides the practitioners great third dimension and
Large-angle observation.
· Imported Schott optics from Germany reduces optical distortion, increases clarity and depth of focus.
· All the optical lens are moistureproof, mildewproof and anti-reflected treated.
· Osram bulb provides the low heating, high brightness and even lighting.
| Slit lamp Microscope Specifications: |
| Microscope Type | Galilean stereoscopic microscope |
| Magnification | Five Steps by drum rotation |
| Eyepiece | 12.5X |
| Field of View | 6 x (Ø33) 10x(Ø22.5) 16x (Ø14) 25x (Ø8.8) 40x (Ø5.5) |
| Range of Pupil Distance | 45 mm ~ 75 mm |
| Adjustment of Diopter | -5D ~ +3D |
| Slit Width | 0mm~14mm adjustable(slit is round when the slit width is 14mm) |
| Slit Height | 1mm~14mm adjustable |
| Aperture Diameter | φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm |
| Slit Angle | 0°~180° adjustable |
| Slit Inclination | 5°, 10°, 15°, 20° |
| Filter | heat absorption, grey, redfree, cobalt blue |
| Illumination Bulb | 12V/ 30W Halogen Bulb |
| Maxial Illuminance | ≥280000 Lx |
| Preceding Mirror | -58.7D |
| Collection Medium | DSLR Camera |
| Illuminations Type of Filming | Background illumination |
| Input Voltage | AC220V±22 V; AC110V±11 V |
NEW VISION dedicates to developing and manufacturing High Quality Ophthalmic and Optometry Equipment, and also focus on offering digital solutions to Slit lamp, Operation Microscope and Fundus Camera.
Main Products:
Ophthalmic Equipments
Operation Microscope, Slit lamp, YAG Laser, Digital Retinal Camera, Ophthalmic A/B Scan, Stand and Chair, Phoropter, Auto refractometer/ Keratometer, Auto Chart Projector, Vision Chart, Auto lensmeter, Rebound-Tonometer, PD Meter, Trail lens set and Frame, Loose Prism and Prism bar...
Digital Photography adapters
Beam splitter, DSLR Camera adapter, HD Video camera adapter, HD Camcorder adapter, Inverter, Laser filter, iPhone photography adapter, Samsung Photography adapter, eyepiece camera adapter...
3D Video regarding System
Designed for Operation microscopes, do Three Dimensional surgery recording...
All products are CE Marked, and most of Products are FDA Approval.
As an exploiter and manufacturer, we design, manufacture and distribute reliable ophthalmic instruments to meet the needs of eye surgeons and eye specialists. Besides, a team of Specialists and Technocrats of Ophthalmology, Optics, Mechanics, Electronics are dedicating to innovation in this field.
We have always been focusing on innovations to guide the market, making healthcare more accessible and affordable. Our R&D experts provide customized solutions to meet customers' specific requests; Our sales offer customers with competitive price and after sales service. In a world, in NEW VISION, you will always enjoy high quality, competitive price, on-time delivery and first-class service.
Welcome for cooperation!
