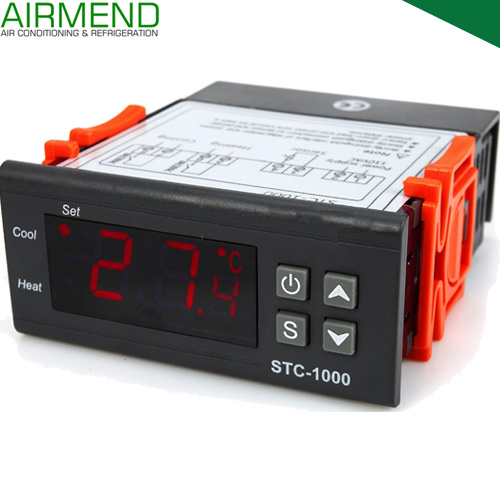

Suitable for all kinds of seafood machine,water chiller and other equipments which need automatic switching between redrigerating and heating.
Features
1.Switch the modes between cool and heat;
2.Control temperature by setting the temperature setting value and the difference value;
3.Temperature calibration;
4.Refrigerating control output delay protection;
5.Alarm when temperature exceeds temperature limit or when sensor error.
Main functions
Refrigeration,heating,Alarm 1NTC,Temperature Calibration
Parameters
1. Temperature measuring range: -50~99 C;
2. Resolution: 0.1 C;
3. Accuracy: ±1 C (-50~70 C);
4. Sensor error delay: 1 minute
5. Power supply: 220VAC±10%, 50/60Hz;
6. Power consumption: ≤3W;
7. Sensor: NTC sensor (1PC);
8. Relay contact capacity: Cool 10A/250VAC;Heat 10A/250VAC;
9. Ambient temperature: 0~60 C;
10. Storage temperature: -30~75 C;
11. Relative humidity: 20%~85% (No condensate).
12. Front panel size: 75mm(W)*34.5mm(H)
13. Mounting size: 71mm(W)*29mm(H)
14. Product size: 75mm(W)*34.5mm(H) *85mm(D)
15. Sensor wire length: 2M(include probe)
