Digital to Analog Audio Decoder

Name: Digital to Analog Audio Decoder
Brand: China-Manufacturer-Directory.com
SKU: 736132855
Availability: InStock
Rating: 4.5 (68 reviews)

Supplier:	Shenzhen Mealink Electronic Co., Limited
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	YL010
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Digital Optical to Analog Audio Decoder
Item:	Audio Decoder
Digital Audio Input:	Toslink * 3
Digital Audio Output:	Toslink * 1
Analog Audio Output:	RCA Stereo * 3.5mm Jack
Channel Seperation:	85db
Format Supported:	AC3 / Dts / Thx / HDCD/PCM
Frequency Response:	20Hz - 20kHz)±0.5db
Snr:	120db
Standard Power Input:	5V
Home Audio & Theater Speaker Mount:	Wall Mount
Home Audio & Theater Watts Per Channel:	<50W
Player Type:	Blue-Ray Player
Speaker System Audio Output Mode:	Dolby Digital
Control:	Wireless
Sound Channel:	5.1
FM:	Without FM
HDMI Quantity:	1
Finish:	Metal

Product Description

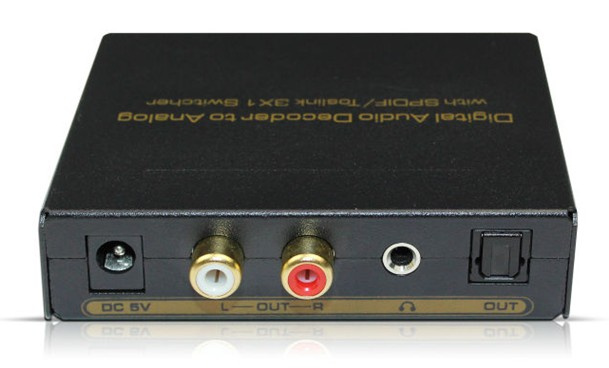

Digital Optical to Analog audio decoder with SPDIF/Toslink 3X1 Switcher

This device converts the digital signals into analog L/R audio output and headphone output. The device supports the AC3/DTS and other digital audio format decoding. It can be used to do audio decode for the DVD, Blue-Ray DVD, PS3, X360BOX, HD Player, PC and other similar signal generator source.It also could work as a SPDIF/TosLink 3to1 switch that switch any one of input three digital TosLink audio signal to one TosLink audio output.

Specification

SPDIF Digital Audio Decoder with TosLink 3to1 Switch

Support audio format .....................DTS/DTS-CD/AC3/HDCD/THX/PCM/LPCM

Digital input level .............................................0.1~1Volts p-p

L/R output level(1kHz@0dB) .......................................800mV RMS

Headphone output power (1kHz@0dB RL=32) ..............................30mW

SNR @0dB(CCIR/ARM).............................................90dB

Distortion ......................................................0.1%

Frequency response ..........................................20Hz~20KHz

Max working current .............................................350mA

Power adapter format Input ....................... AC 100V~240V 50HZ/60HZ; DC5V/1A

Operating Temperature range .......................................-10 to +55°C

Operating Humidity range ...........................5 to 90%RH (No Condensation)

Dimension (L x W x H) ........................................85x62x21 (mm)

Weight .........................................................148g
