Product Specifications
| Prod Model: |
AS SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Time Setting (Approx.): |
0~999hours |
| Rotating Speed (Rpm): |
150~300 |
| Mode Of Vibration: |
Reciprocating Type |
| Load (Kg): |
100/200/300/600/1000 |
| Export Markets: |
Global |
| Effective Area: |
W1200*D1000mm |
| External Dimension: |
W1300*H650*D1300mm |
| Amplitude: |
25.4mm(1inch) |
| Time Setting: |
-999hours |
| Power: |
AC220V |
| Type: |
Vibration Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
Product Description
Our product advantage:
(1)CE certifiate
(2)15-30days fast delivery
(3) 12month warranty
(4) high precise instrument with imported brand parts
(5) strong export standard plywood case

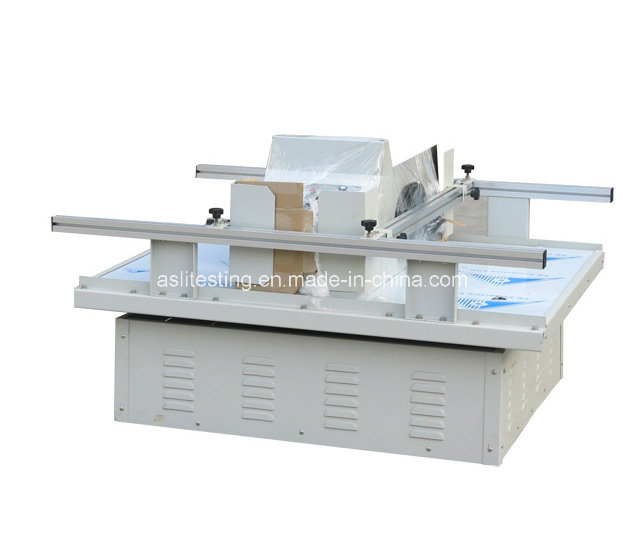

Digital transport simulation vibration testing machine/Carton Transportation Vibration Test Instrument Application:
Digital transport simulation vibration testing machine/Carton Transportation Vibration Test Instrument is applied to test the vibration-resistance of packed Toys, electronics, furniture, gift, ceramics,equipment,etc., under simulated transport conditions, according to American and EU transport standard (ASTM,IEC).
Digital transport simulation vibration testing machine/Carton Transportation Vibration Test Instrument features:
1. Unique design, easy to use.
2. Low noise, with buffering function.
3. Frame is powder coating, working table is stainless steel with aluminium alloyrail track.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 27 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.Simulated Transport Vibration Tester is our star products , and we had obtained the CE certification for this machine.
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
After-sale service:
Feedback within 2 hours, and offer solution in 4 hours and help to solve the problems.
| Digital transport simulation vibration testing machine/Carton Transportation Vibration Test Instrument technical parameters: |
| Mode | AS-100 | AS-200 | AS-300 | AS-600 | AS-1000 |
| Load (Kg) | 100 | 200 | 300 | 600 | 1000 |
| Effective Area WxD (mm) | 1200×1000 | 1200×1000 | 1200×1300 | 1300×1400 | 1500×1500 |
| Weight (Kg) | 200 | 250 | 350 | 450 | 600 |
| External Dimension WxHxD (mm) | 1300×650×1300 | 1300×650×1300 | 1300×650×1400 | 1400×750×1500 | 1600×850×1600 |
| Rotating Speed (RPM) | 150~300 |
| Amplitude | 25.4mm(1inch), (Accord ASTM.IEC transport standard) |
| Time Setting (Approx.) | 0~999hours |
| Mode of Vibration | Reciprocating type |
| Power | AC220V or according to the equipment specification
|
