Product Specifications
| Prod Model: |
ANT-350 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
UHF/VHF-H/All Band |
| Amplify: |
0/12/20/30dB |
Product Description

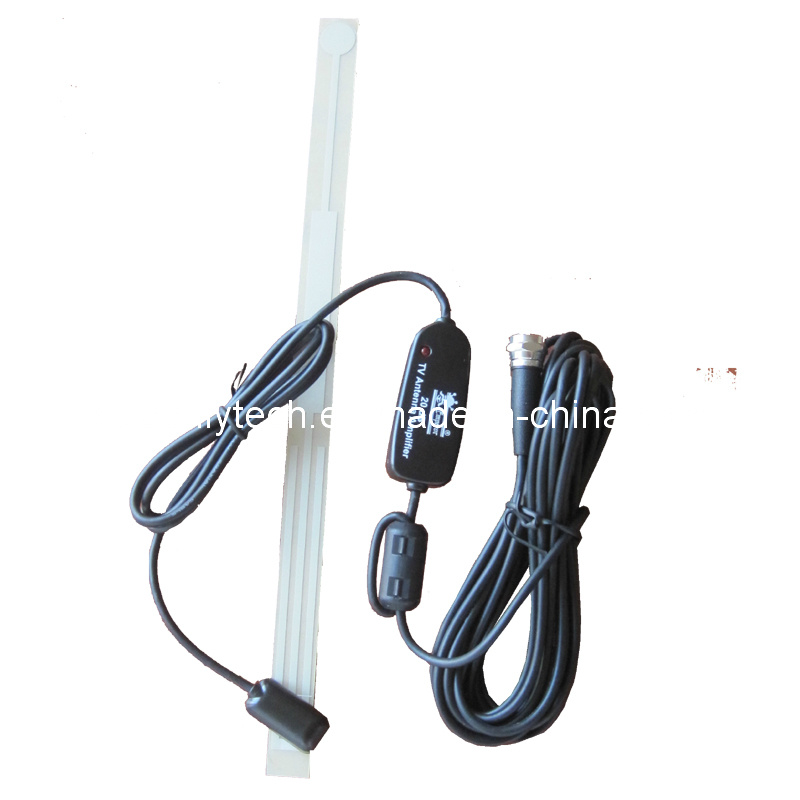

12dB/20dB/30dB active antenna and passive digital tv antenna optional
Antenna for car and home use optional
Full band/UHF/VHF-H band optional
F/IEC/SMA/SF/SIEC/SSMA Type optional
Antenna for digital tv system as DVB-T, ATSC, ISDB-T, CMMB etc.
Active antenna with built in RF amplifier for digital TV
Impedance: 75ohm typ.
Receiving frequency range: VHF-H 170-230MHz, UHF 470-860MHz
Power supply from ANT cable directly supplied from receiver
Supply voltage: DC 5V+/-10% 30mA Max from receiver
Operation assurance temperature range: -20/~+60 degrees
Power gain: Typ. 20dB Min. 15dB
For over two decades, Our company with its group has been a major player in the CCTV security industry.We are now introducing our latest collection of digital TVs, ATSC/ATSC MH/DVB/CMMB/DMB/ISDB receivers and antennas for home and mobile applications.Digital TV sound radio with LED flash is our new creation, with dynamo function.
Meeting your OEM requirements is easy when you source from us.That's because we develop our own PCBs and DVB modules, and have 50 experienced R&D engineers in-house who will work on your modifications.Molding, electromechanical engineering and software development services are also provided.
Every month, we turn out up to 100, 000 digital TVs, DVB receivers and DVB modules using key components from industry-leading overseas suppliers.And 80 percent of our output is delivered to buyers in Europe, North and Latin America, and Japan.
For your assurance, all our operations are ISO 9001:2008-certified, and products are FCC-, CE-, FDA- and CSA-approved.Send us your OEM/ODM requirements today.
