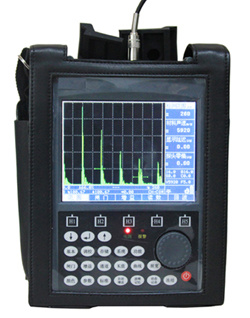

Digital Ultrasonic Flaw Detector /NDT Flaw Detector

Product Specifications

Prod Model:	REAL-PUT01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Application:
Metals and a variety of other thickness of the material, can be measured, and can measure the speed of sound of the material based on the ultrasonic measuring principle. Production equipment, piping and pressure vessel thickness measurement, monitoring them during use by the degree of corrosion thinning, but also all kinds of sheet metal and machined parts for accurate measurement. The instrument can be widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields.
Specification:
Basic Parameter
L X W X H: 160 MM x 100 MM x 60 MM
Screen: Resolution 640X480 5.7'TFT Color LCD
Weight: 2 Kg (Including Battery)
Interfaces: BNC LEMO-00
Lithium: 12V 3000mAH
Power Supply: 110V/60hz 220V/50hz
Operating Temperature: -20° ~ 50° C
System Parameter
CPU: ARM11 Embedded 32 bit 500M Processor
Operating System: Liunx 2.6
RAM: 256M
SD CARD memory capacity: 2G
USB interface: 12M/S, USB-2.0(Host/Slave)
Encoder: 1024 Pulse/Round Resolution: 0.1mm
Operation Language: English/Chinese
LCD Luminance: 1-8 Grade
Detection parameters
Detection range: (1 ~ 1250) mm
Working frequency: (0.5 ~ 10) MHz
Velocity range: (1000 ~ 9999) m / s
Dynamic Range: ≥ 36dB
Vertical linear error: ≤ 2.5%
Horizontal linear error: ≤ 0.1%
Resolution: > 40dB (5P14)
Surplus Sensitivity: 64dB, (deep 200mm Diameter2 flat bottom hole)
Digital Rejection: (0 to 100%), does not affect the linearity and gain
Electrical noise level: ≤ 8%
Repeat emissivity: 100-4000hz
Transmitter voltage: 80V 100V 200V
Probe type: Straight probe, angle probe, double crystal probe, penetration probe
Gates: Echo door, lost wave door; Single gates readings, double gate reading
Alarm: Buzzer alarm, LED light alarm
Probe zero μs: 0 - 199.9
Thickness measurement resolution: 0.1mm
Indication accuracy: ± (1% H +0.1) mm H for the actual thickness of the analyte
Measurement cycle: Single point measurement 8 times / sec, scanning mode 100 times / sec;
Gain adjustment dB: 0 - 110 points 0.1 / 1/6/12 stepper regulator
Rectification: Positive, negative, two-way radio frequency (RF)
DAC curve: Can record up to 10 echo reference point and piecewise display; DB distance between DAC 3 lines can be changed; Insert the echo reference point or the reference point of the selected echo correction.
Peak Memory: Selectable echo peak memory, said background peak waveform different colors.
Type A the echo freeze: Freeze testing screen
Echo Rating: Sound path, horizontal distance, vertical distance, amplitude, dB difference
Monitor the gate: Two independent measurement gates, B gates can be set for Interface wave tracking gate mode
USB interface: The instrument internal storage data, data waveform dump to the U disk, print testing report
Digital Signal
Digital Filtering: HPF(0Hz~2000Hz)\LPF(0Hz~2000Hz)
Filtering Points: 1-1024
Broadband: 100Hz~10MHz
A/D Velocity: 12bit 100M
Min-Senstivity: 1mV
Real-Time Average: 2 4 8 16 32
Parameter Storage
Detection Save, Delete, Edit: Above 10000 sets
Real-time signal preservation, playback, analysis, save and print: 8G/24Hour
Testing Pics: Above 10000 PCS
USB Storage: Available
Print: Online/Wireless
Help System
Automatically display date, time and battery capacity
Easy operation, real-time screen point-out
Online hotkey, graphics, words help
