Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

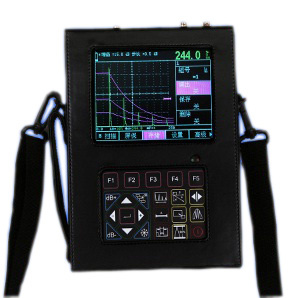

Product Description
Fetures
1. DAC\AVG curves
2. High-speed capture and very low noise
3. Solid and artistic metal housing(IP65)
4. Intelligent detection tools, simple to use
5. Powerful PC software and reports can be exported to excel
Functions
1. Five measurement displays. A main display used to enlarge the display, 17 measurement types for your option.
2. Two independent gates setting for independent or joint measurement.
3. Document management system, dynamic data storage, 100 independent detection channels, 300 A graph test reports.
4. Repeated transmitting frequency divided into five-speed and adjustment.
5. Real-time video function during testing
6. Five kinds of menu color scheme for the user to select. And Metric system choice
7. B-scan function, clearly show the defects in longitudinal cross section shape
8. AVG curve automatically generated, identify the highest wave of defects, Identify defects in the highest waves, automatically convert to aperture value,
9. TCG curve produced, Depth automatic compensation function.
10. The automatic test probe zero, the value of sound velocity and K
11. Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated
12. Automated gain and gain scan, automated echo degree
13. Perfect alarm system
14. Li battery, continue working time up to 9 hours
15. Powerful PC software and reports can be export to excel
16. Gate and DAC alarm
Technical Specification:
1. Scan range(mm): 0~10000
2. Pulse Displacement(μs): -20~+3400
3. Sensor Zero Offset: 0.0~99.99
4. Material Velocity(m/s): 1000~15000
5. Resolution: ≥ 40dB(2.5P20)
6. Test mode: Single, dual thru
7. Frequency Range(MHz): 0.5-20
8. Gain range(dB): 0~120
9. Vertical Linearity Error: ≤ 3%
10. Horizontal Linearity Error: ≤ 0.2%
11. Sensitivity Leaving: ≥ 66dB (flat-bottomed deep hole 200mm*2)
12. Dynamic range: ≥ 32dB
13. Power adapter:
Input: 100V~240V/50Hz~60Hz; Output: 9V/1.5A
14. Power supply: Li battery 4× 3.6V 4800mAh
15. Connecting type: C9
16. Operating temperature): -10~70
17. Relative humidity(RH): 20%~90%
18. Dimension(mm): 210× 156× 38
19. Weight(kg): 1kg(main unit):
|
NO. |
Item |
Remark |
|
1 |
Main unit |
|
|
2 |
Straight probe |
|
|
3 |
Angle probe |
|
|
4 |
Power adapter |
|
|
5 |
Probe connection cable |
|
|
6 |
Instruction manual |
|
|
7 |
Calibration certificate |
|
|
8 |
Carrying case |
|
|
9 |
Independent charger |
optional |
|
10 |
Standard Test block |
optional |
|
11 |
The second Lithium ion battery |
optional |
|
12 |
PC communications software |
optional |
|
13 |
Data managing cable RS232 |
optional |
