Product Specifications
| Prod Model: |
HZ-TDG20W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cover Material: |
Glass |
| Shape: |
Round |
| Light Source: |
LED |
| Certification: |
CE |
| Voltage: |
100-265V |
| Base Material: |
Aluminum |
| Beam Angle: |
108 |
Product Description

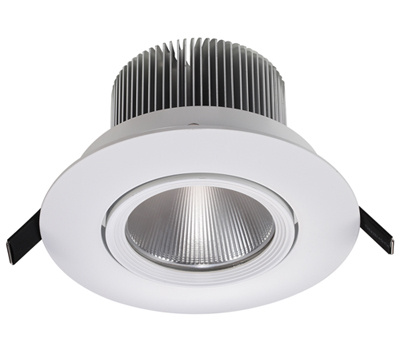

High CRI High Lumen Down Light (Hz-TDG20WI, Hz-TDG20W)
The G series Down light is designed two kinds of style, High CRI design, High lumen design, And all of them dimmable. Designed to easily install into existing 5" housings or in new construction applications. It provides Higher efficacy and longer life than Compact Fluorescent Lamps with the beautiful light quality That you would expect from an incandescent.
Features:
* High efficient power supply
* High lumen/CRI
* Dimmable
* Easy to install
Benefits:
1. Built-in power supply which means easy to install.
2. CRI=95 which means the quality of artificial light relative to the quality of sunlight.
3. Lumen Efficacy=90LM/W which means Using only 15W to produce over 1350lm, It allows up to replace traditional 70W incandescent.
4. All types are dimmable which means more energy savings.
Application:
Sales areas, shop windows, office and corridors
Museums, exhibitions and galleries
Reception rooms, lobbies and hotel rooms
Bathroom, kitchens and living areas
|
Item |
HZ-TDG20W |
|
Input Voltage |
100-265V |
|
Power |
20W |
|
Luminous Flux |
900--1450lm |
|
Light Efficacy |
45lm/W |
|
Power Factor |
0.977 |
|
CRI |
95 |
|
Beam Angle |
108 |
|
Glow Colors |
White |
|
LED QTY |
12 PCS of 1W LED |
|
Ambient Temperature |
-30--40 Deg |
|
LED Lifespan |
50, 000 hrs |
|
Protection Class |
IP20 |
|
Material |
Aluminum-alloy |
|
Certificate |
CE RoHS |
Hi-semicon is vertically integrated manufacturer. We manufacture our product by using our leading-edge technological expertise in thermal management, optics and electronic circuitry, lenses and LEDs to improve our existing products, bringing further efficiencies through cost improvements and product design.
Hi-semicon technology focus on
System reliability and compatibility
Optical quality: Flicker-free, Anti-glare, High CRI
Light dispersion
Heat-control technology
Nano-coating technology
Intelligent control-DALI, Zigbee, Sensor est.
What can we do for our customer
Reliable product
System integration merits
Balance between Reasonable cost and function
Responsibility warranty
Thoughtful in-depth customization
Hi-semicon create long-term value for our customers.
